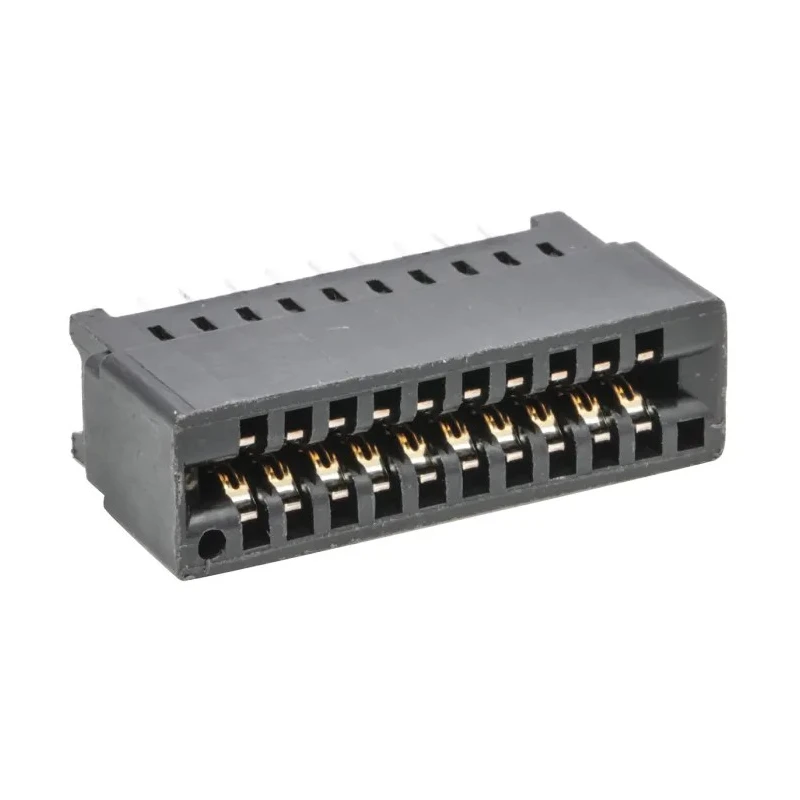

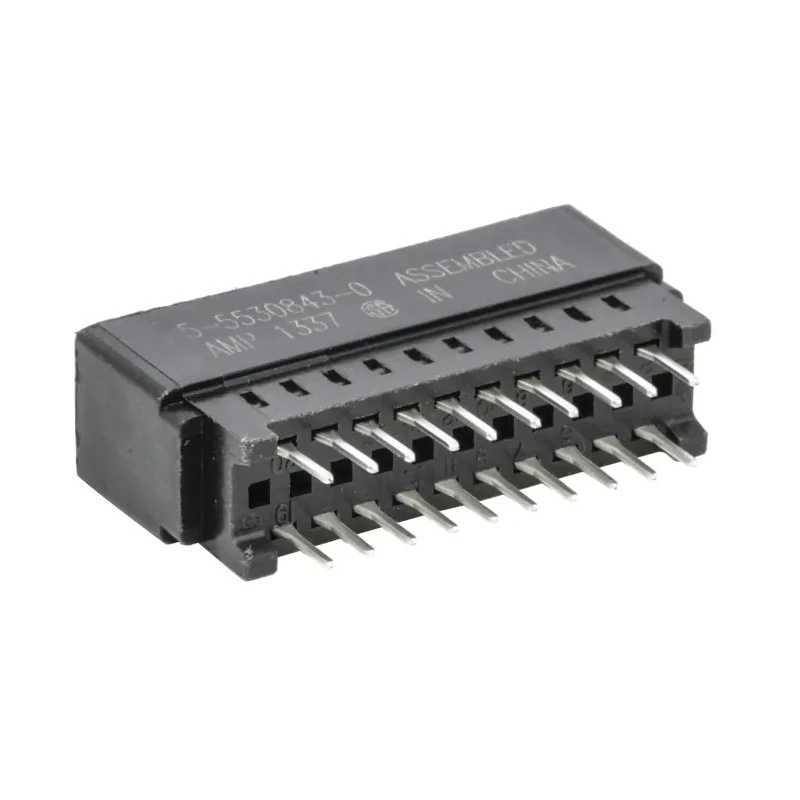

TE Connectivity Standard Edge II Series Straight Edge Connector Female Board 20-Contacts 2.54 mm Pitch 2 Row 5-5530843-0
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 400V |
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 3A |
| Mount Type | Board |
| Housing Material | Fibreglass Reinforced Polyethylene Terephthalate |
| Contact Material | Phosphor Bronze |
| Series | Standard Edge II |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 20 |
| Connector Gender | Female |
| Card Type | Edge |
Key Features
- This edge connector features a straight orientation suitable for board applications.
- Phosphor bronze contacts plated with gold over nickel ensure strength and high electrical reliability.
- The connector supports a current rating of 3A and voltage rating of 400V.
- It has bifurcated cantilever contacts with intercontact keying slots for correct card orientation.
- Housing is made of fibreglass reinforced polyethylene terephthalate for durability.
- Operating temperature range extends from -55°C up to 85°C for versatility in harsh environments.
- Standard Edge II series provides a low-profile, industry-standard package ideal for cost-effective solutions.
Product Description
TE Connectivity 5-5530843-0 Standard Edge II Series Straight Edge Connector Female is a highly reliable and economical board-mounted edge connector with 20 contacts arranged in 2 rows at a 2.54 mm pitch.
Designed for robust electrical connections, it features bifurcated cantilever gold-plated phosphor bronze contacts providing strength, durability, and excellent conductivity. The connector includes intercontact keying slots ensuring proper orientation when mating with a daughter card that must also accept the keying plug.
The housing is constructed from fibreglass reinforced polyethylene terephthalate, lending mechanical stability and resistance to environmental stresses. This edge connector supports currents up to 3A and voltages up to 400V, making it suitable for many industrial, electronic, and computing applications.
Operating temperature range from -55°C to 85°C allows deployment in a variety of environmental conditions. Connector termination is via solder type, designed for straightforward PCB mounting.
This product is ideal for applications such as DC-DC converters, low wattage power supplies, industrial grade card extenders, and general low-cost I/O connections requiring rugged, high-quality edge contacts.
This connector provides a cost-effective solution in an industry standard low-profile package. Bifurcated gold-plated contacts increase electrical performance and mechanical strength. Keying slots protect against misorientation during assembly.
Fibreglass reinforced housing ensures durability under demanding conditions. Wide operating temperature range supports diverse industrial environments. Set includes one TE Connectivity Standard Edge II edge connector female, 20 contacts, part number 5-5530843-0. For keying plug accessories, refer to stock number 718-8407.
Explore more Edge Connectors and other electronic components suitable for your industrial design requirements at EnvMart, your trusted partner for quality connectivity solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This edge connector supports a current rating of 3A and a voltage rating of 400V.
It features a pitch of 2.54 mm and has 20 contacts arranged in 2 rows.
The housing is made of fibreglass reinforced polyethylene terephthalate, and the contacts are made of phosphor bronze with gold over nickel plating.
The operating temperature range extends from -55°C to 85°C, allowing for use in various environmental conditions.
This model uses a solder termination type, designed for straightforward PCB mounting.
It is designed for edge cards and includes intercontact keying slots to ensure proper orientation when mating with a daughter card.
The connector has a 2.54 mm pitch and consists of 20 contacts arranged in 2 rows, but specific dimensions are not provided.
It is suitable for applications such as DC-DC converters, low wattage power supplies, industrial grade card extenders, and general low-cost I/O connections.
Yes, it includes intercontact keying slots to protect against misorientation during assembly.
This connector belongs to the Standard Edge II series.
The country of origin for this connector is India.
This model is a female connector.
