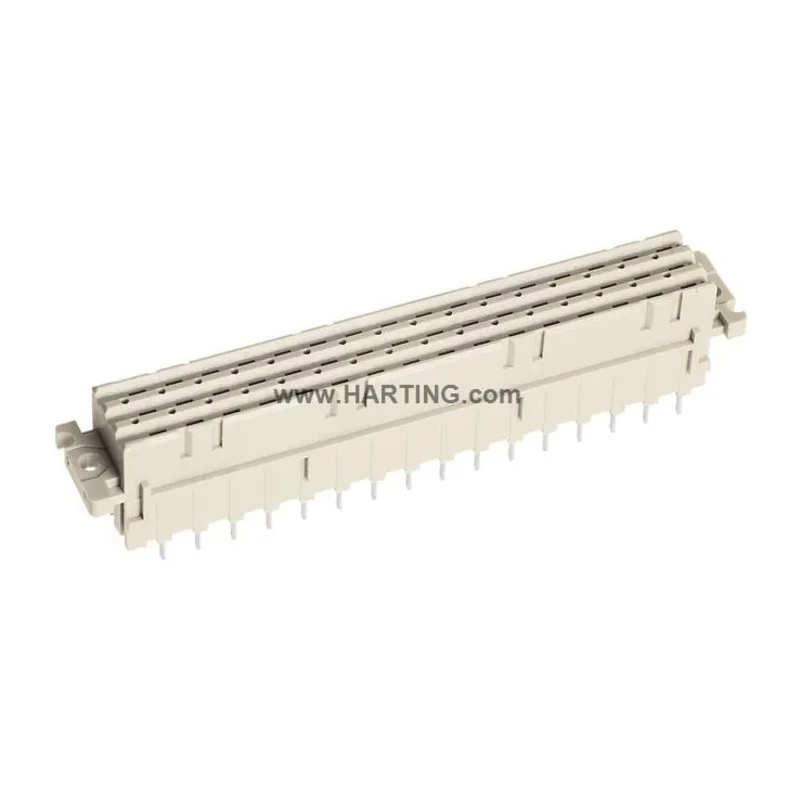

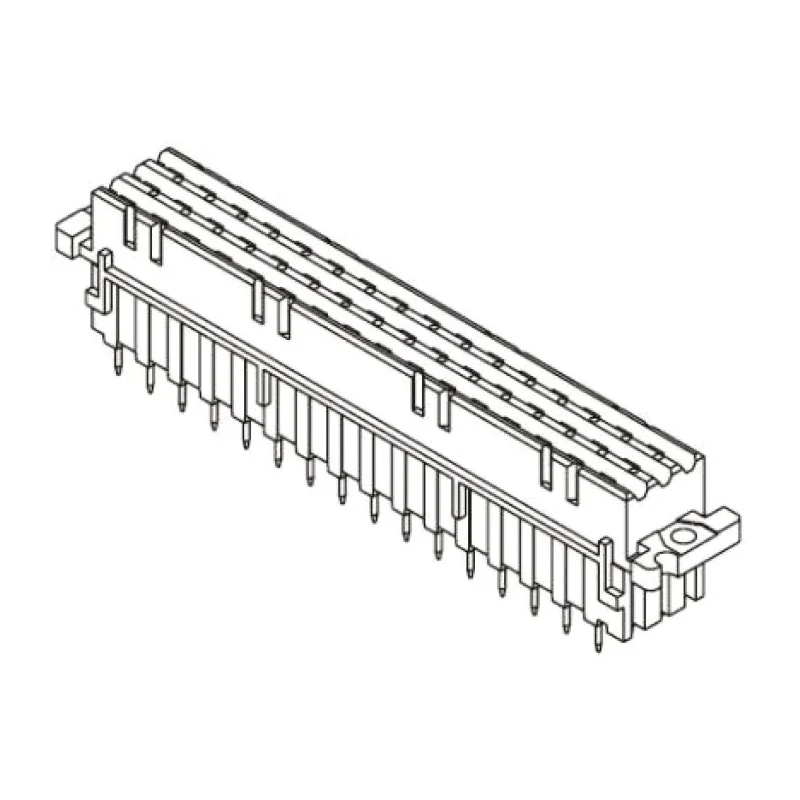

HARTING DIN 41612 Connector 48 Contacts 5.08 mm Pitch 3 Row Female Straight Solder Termination Class C1 09062482835

Free Delivery in India | Lowest Global Shipping Charges

HARTING DIN 41612 Connector 48 Contacts 5.08 mm Pitch 3 Row Female Straight Solder Termination Class C1 09062482835

Name: HARTING DIN 41612 Connector 48 Contacts 5.08 mm Pitch 3 Row Female Straight Solder Termination Class C1 09062482835
Brand: HARTING
SKU: 129251
Price: 13.76 USD
Availability: InStock



Category DIN 41612 Connector Brand HARTING Condition New

Specifications

Country of Origin	Romania
Voltage	125V ac
Brand	HARTING
Orientation	Straight
Current	6A
Housing Material	Thermoplastic
Contact Material	Copper Alloy
Series	09 06
Termination Type	Solder
Maximum Operating Temperature	125°C
Sub Type	F
Minimum Operating Temperature	-55°C
Number of Rows	3
Pitch	5.08mm
Contact Plating	Gold over Nickel
Number of Contacts	48
Contact Gender	Female
Connector Gender	Female
Maximum Contact Resistance	15mΩ
Row Loading	D, B, Z

Key Features

This DIN 41612 connector has 48 contacts arranged in 3 rows for extensive connectivity.
It features a 5.08 mm pitch sizing, allowing standard interface compatibility.
The connector orientation is straight with female contacts designed for solder terminations.
Constructed with copper alloy contacts plated with gold over nickel to ensure low contact resistance and durability.
Thermoplastic housing material supports operating temperatures from -55°C to 125°C.
The connector supports a maximum AC voltage of 125 V and a current rating of 6 A per contact.
It is classified as Class C1 and has a maximum contact resistance of 15 mΩ.
Designed for industrial environments including railway transportation and power supply systems.

Product Description

HARTING 09062482835 DIN 41612 Connector is a high-quality component designed for secure and efficient electrical connections in industrial and electronic applications. Featuring 48 female contacts arranged in 3 rows with a 5.08 mm pitch, this connector provides a reliable solution for board-to-board and cable-to-board connections.

The connector is constructed with copper alloy contacts plated with gold over nickel to ensure superior conductivity and corrosion resistance. Its thermoplastic housing is reinforced with glass fiber to withstand harsh operating environments and temperature variations from -55°C to 125°C, making it suitable for demanding industrial, railway transportation, and power supply applications.

Rated for 125 V AC voltage and 6 A current per contact, this DIN 41612 Type F connector offers excellent performance and durability. The straight orientation and solder termination type classifies it as Class C1, ensuring fitting compatibility with industry standards.

HARTING connectors are known for their robust design, making the 09062482835 series ideal for use in control cards, power supplies, and complex electrical assemblies requiring stable and secure interconnections.

This DIN 41612 connector features a robust thermoplastic housing reinforced with glass fibers. Gold over nickel plating on copper alloy contacts offers excellent electrical contact and anti-corrosion properties. Supports a broad temperature range from -55°C to 125°C for reliability in extreme conditions.

Rated for 125 V AC at 6 A per contact, suitable for high current industrial applications. Designed for straightforward solder termination ensuring strong contact and ease of assembly. Ideal for use in railway transportation and power supply systems requiring durable connectors.

Manufactured in Romania to high-quality standards ensuring consistency and performance.

This product is part of the DIN 41612 Connector family commonly utilized in industrial electronics, automation, and power management systems. For more detailed technical information and to explore compatible accessories and crimp tools, consult the official HARTING documentation or the EnvMart product category.
