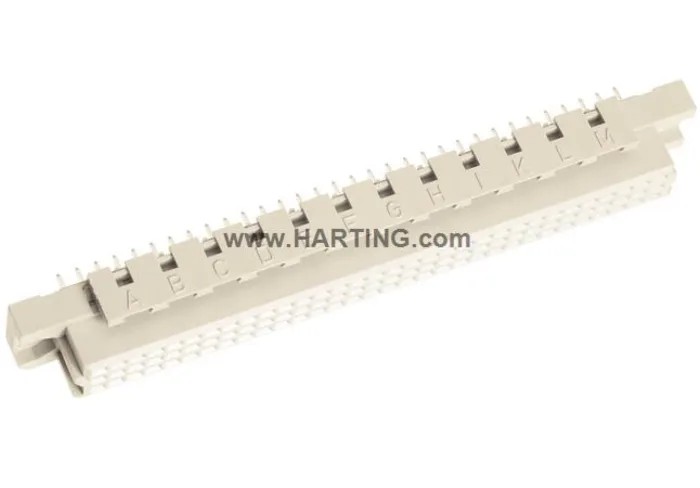

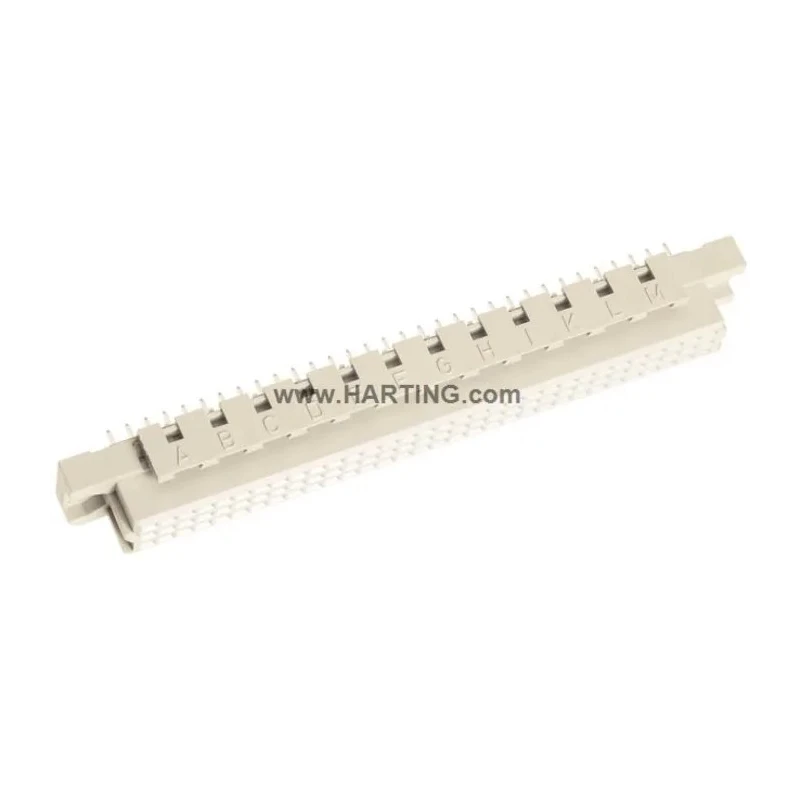

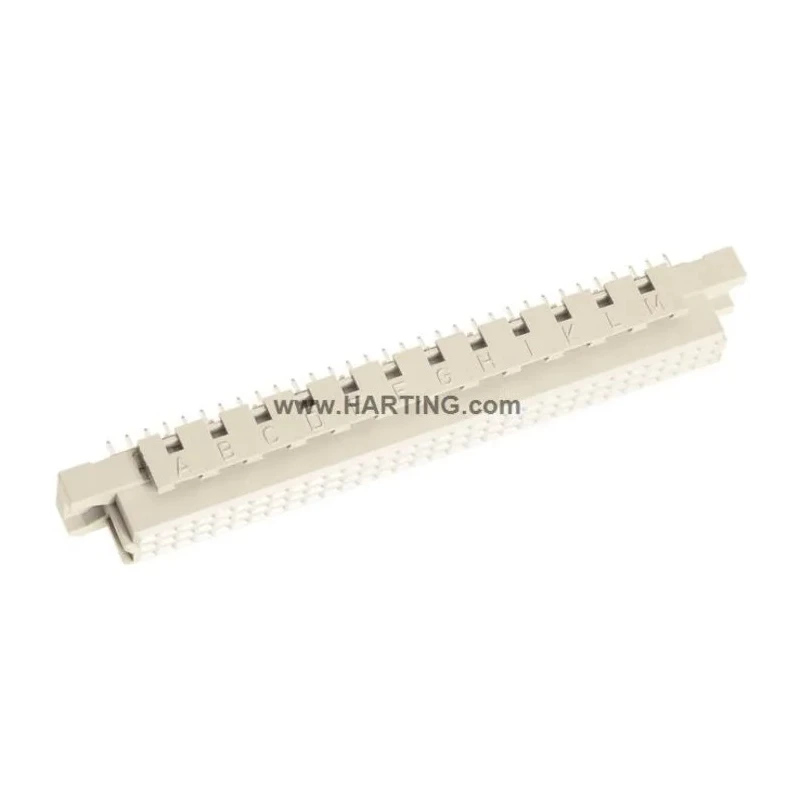

HARTING DIN 41612 Connector 96 Contact 3 Row Female Straight 2.54 mm Pitch Type C/2 Solder Class C2 09037966825

Free Delivery in India | Lowest Global Shipping Charges

HARTING DIN 41612 Connector 96 Contact 3 Row Female Straight 2.54 mm Pitch Type C/2 Solder Class C2 09037966825

Name: HARTING DIN 41612 Connector 96 Contact 3 Row Female Straight 2.54 mm Pitch Type C/2 Solder Class C2 09037966825
Brand: HARTING
SKU: 129243
Price: 13.91 USD
Availability: InStock



Category DIN 41612 Connector Brand HARTING Condition New

Specifications

Country of Origin	India
Brand	HARTING
Orientation	Straight
Current	2A
Housing Material	Thermoplastic
Contact Material	Copper Alloy
Series	09 03
Termination Type	Solder
Maximum Operating Temperature	125°C
Sub Type	C/2
Minimum Operating Temperature	-55°C
Number of Rows	3
Pitch	2.54mm
Contact Plating	Gold over Nickel
Number of Contacts	96
Contact Gender	Female
Connector Gender	Female
Maximum Contact Resistance	20mΩ
Row Loading	A/B/C

Key Features

Features a three-row female connector with 96 contacts for reliable signal transmission.
2.54 mm pitch provides precise spacing between contacts.
Gold over nickel contact plating ensures low contact resistance and corrosion resistance.
Thermoplastic housing offers strong mechanical and thermal stability.
Supports operation between -55°C and 125°C for harsh environments.
Rated for 2A current with a maximum contact resistance of 20mΩ.
Solder termination type enables secure PCB mounting.
Complies with Class C2 specifications for industrial connector standards.

Product Description

HARTING 09037966825 DIN 41612 Connector is a high-quality 96-contact, three-row female connector with a straight orientation and 2.54 mm pitch, designed for electronic PCB backplane applications. This Type C/2 solder class C2 connector combines reliable electrical and mechanical properties for industrial signal connectivity.

Constructed with a robust thermoplastic housing and copper alloy contacts plated with gold over nickel, it maintains excellent contact resistance up to 20mΩ and supports a current rating of 2A. Its operating temperature range from -55°C to 125°C makes it suitable for demanding industrial environments.

This connector series is ideal for interconnection in 19-inch Eurocard racking systems and offers economical and durable PCB connection solutions. The Class C2 rating ensures it meets relevant industrial standards. The solder termination type enables firm and reliable mounting on printed circuit boards.

Key features include a 3-row contact configuration with A/B/C row loading, straight orientation, and mating first at positions a1 and a31. It is widely applicable in industrial, electronic, construction, and manufacturing environments requiring secure backplane connections.

Three-row 96-contact female connector provides dense signal connectivity. 2.54 mm pitch spacing ensures precise electrical separation. Gold over nickel plating promotes corrosion resistance and low electrical resistance.

High-temperature thermoplastic housing ensures durability and mechanical strength. Wide operating temperature range of -55°C to 125°C for harsh industrial use. Suitable for solder termination to PCB for firm mechanical retention.

Compliance with Class C2 standard guarantees reliable industrial performance. Copper alloy contacts optimize electrical conduction and lifespan. Applicable for 19-inch Eurocard rack systems and backplane connectors. Supports applications in industrial automation, electronics, and manufacturing sectors.

Set includes one HARTING DIN 41612 Type C/2 solder Class C2 connector with 96 female contacts arranged in three rows suitable for straight mounting. This product embodies industrial quality and reliability for electronic connectivity needs.
