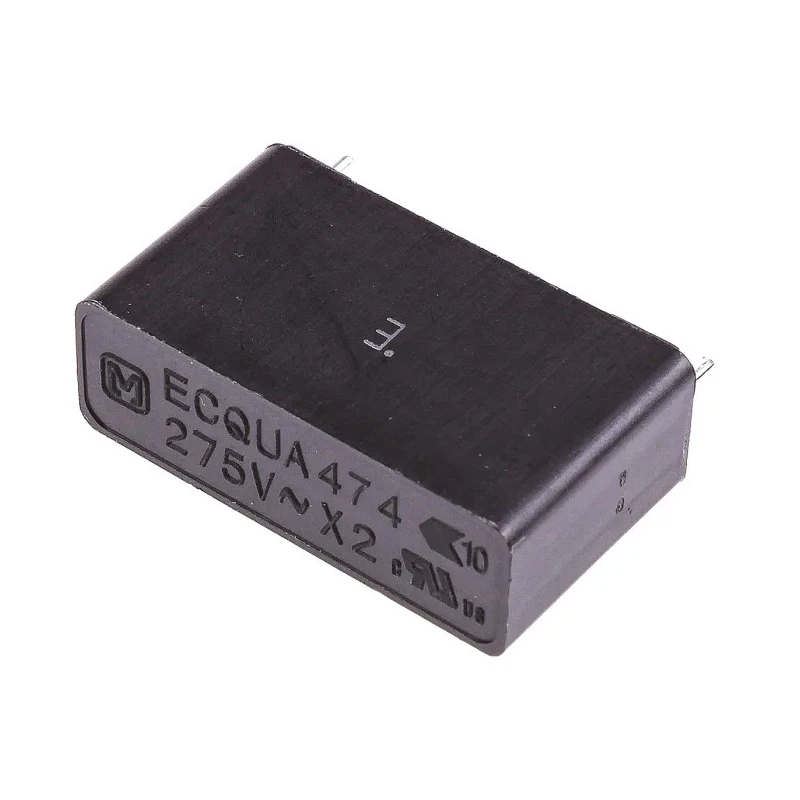

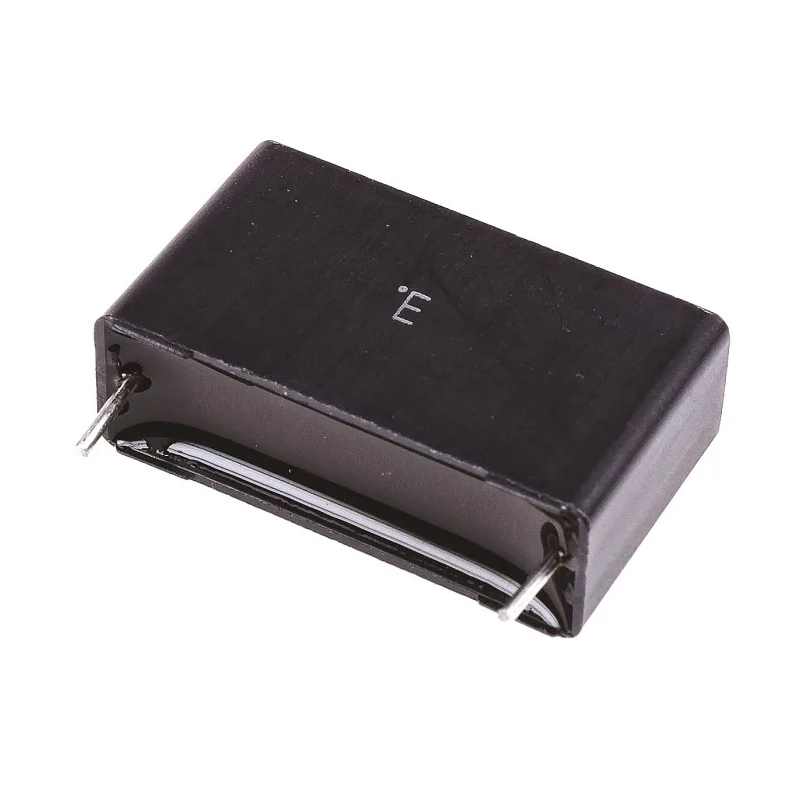

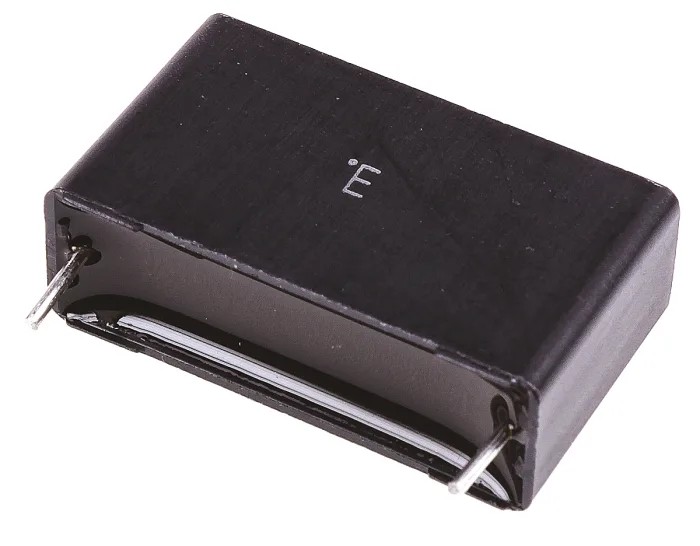

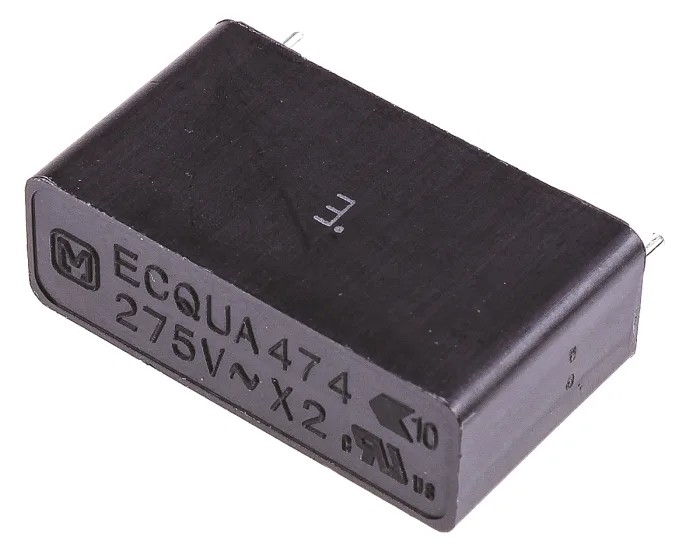

Panasonic ECQUA Film Capacitor X2, ±20%, 470 nF 275V AC Through Hole ECQUAAF474MA
Specifications
| Country of Origin | India |
|---|---|
| Brand | Panasonic |
| Height | 15mm |
| Length | 26mm |
| Model | ECQUAAF474MA |
| Packaging | Bulk (Bag) |
| Width | 8.5mm |
| Mount Type | Through Hole |
| Series | ECQUA |
| Maximum Operating Temperature | 110°C |
| Tolerance | ±20 % |
| Capacitance | 470nF |
| Minimum Operating Temperature | -40°C |
| Terminal type | Through Hole |
| Dissipation Factor | 0.2% |
| Rated AC Voltage | 275V ac |
| Lead Pitch | 22.5mm |
| Lead Diameter | 0.8mm |
| Automotive Standard | AEC-Q200 |
| Suppression Class | X2 |
Key Features
- Features ±20% capacitance tolerance ensuring reliable performance.
- Through hole mounting type suitable for robust circuit connections.
- Lead pitch of 22.5 mm for standard PCB designs.
- Operating temperature range from -40°C to 110°C for industrial environments.
- Flame retardant plastic case and non-combustible resin construction.
- Dissipation factor of 0.2% minimizing energy losses.
- Complies with automotive AEC-Q200 standard assuring quality.
- Approved to CSA E60384-14, EN 60384-14, and UL 60384-14 standards.
Product Description
Panasonic ECQUAAF474MA is a high-quality film capacitor from the ECQUA series designed specifically for interference suppression coil applications. This X2 class capacitor features a capacitance of 470 nF with a tolerance of ±20%, rated for 275V AC operation. The through hole mounting and 22.5 mm lead pitch ensure easy integration into printed circuit boards used in industrial, automotive, and electronic applications.
Constructed with a flame retardant plastic case and non-combustible resin, it offers excellent safety against fire hazards. Operating reliably across an extended temperature range from -40°C to 110°C, it meets demanding environmental conditions encountered in manufacturing and commercial electronic systems.
This capacitor features a dissipation factor of 0.2%, contributing to energy efficiency and stable electrical performance. The dimensions of 26 mm length, 15 mm height, and 8.5 mm width make it a compact solution suitable for dense PCB layouts. Lead diameter is 0.8 mm, cropped to 4 mm length for consistent mounting reliability.
The ECQUAAF474MA capacitor complies with recognized industry standards including automotive AEC-Q200 for rigorous quality requirements, and safety approvals from CSA E60384-14, EN 60384-14, and UL 60384-14. These certifications assure suitability for use in industrial, automotive, water treatment, HVAC, and other commercial electronic assemblies requiring interference suppression and noise filtering.
Features ±20% capacitance tolerance ensuring reliable performance. Through hole mounting type suitable for robust circuit connections. Lead pitch of 22.5 mm for standard PCB designs. Operating temperature range from -40°C to 110°C for industrial environments.
Flame retardant plastic case and non-combustible resin construction. Dissipation factor of 0.2% minimizing energy losses. Complies with automotive AEC-Q200 standard assuring quality. Approved to CSA E60384-14, EN 60384-14, and UL 60384-14 standards.
Designed for interference suppression coil applications to reduce electromagnetic interference. Compact dimensions: 26 mm length, 15 mm height, and 8.5 mm width.
This Panasonic ECQUAAF474MA film capacitor is critical for power and connector circuits in electronics manufacturing, industrial automation, HVAC controls, and automotive systems. Explore more Film Capacitors in EnvMart’s electronics components catalog.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The capacitance value of this model is 470 nF with a tolerance of ±20%.
It has a maximum operating temperature of 110°C.
This capacitor utilizes a through hole mounting type, suitable for robust circuit connections.
The lead pitch for the Panasonic ECQUA film capacitor is 22.5 mm.
The dissipation factor is 0.2%, which helps minimize energy losses.
The dimensions are 26 mm in length, 15 mm in height, and 8.5 mm in width.
It is rated for 275V AC operation.
It complies with automotive AEC-Q200, CSA E60384-14, EN 60384-14, and UL 60384-14 standards.
The minimum operating temperature is -40°C.
It features a flame retardant plastic case and non-combustible resin construction.
This model is designed for interference suppression coil applications in industrial, automotive, and electronic systems.
The lead diameter is 0.8 mm, cropped to a length of 4 mm for consistent mounting.
