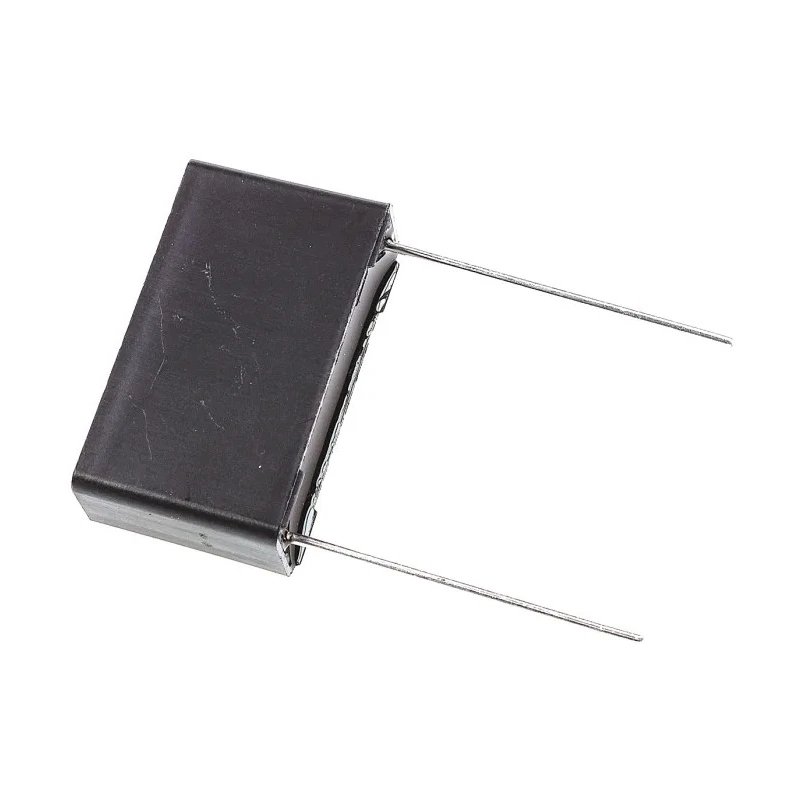

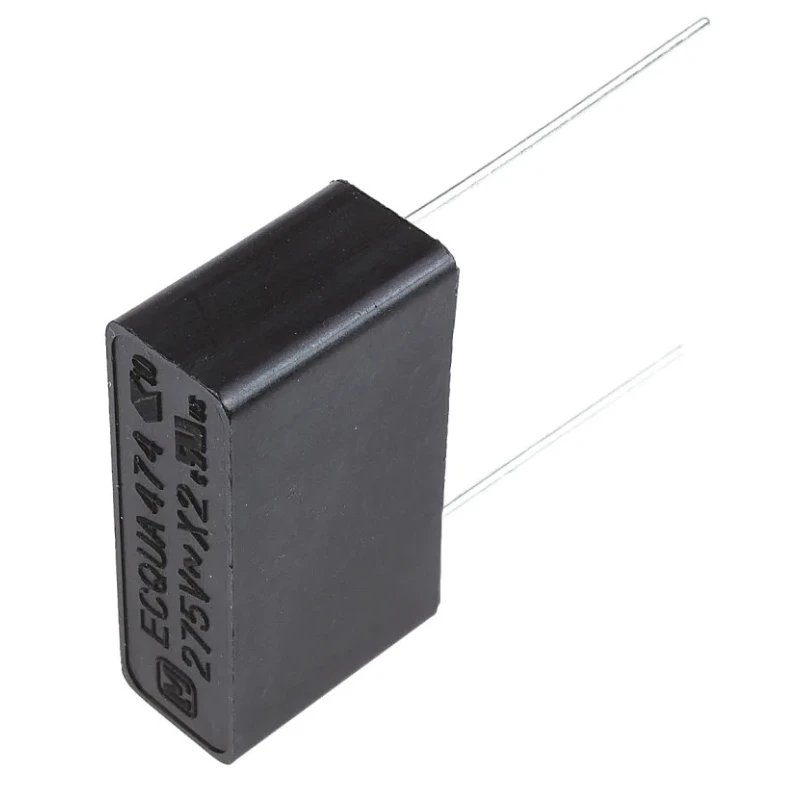

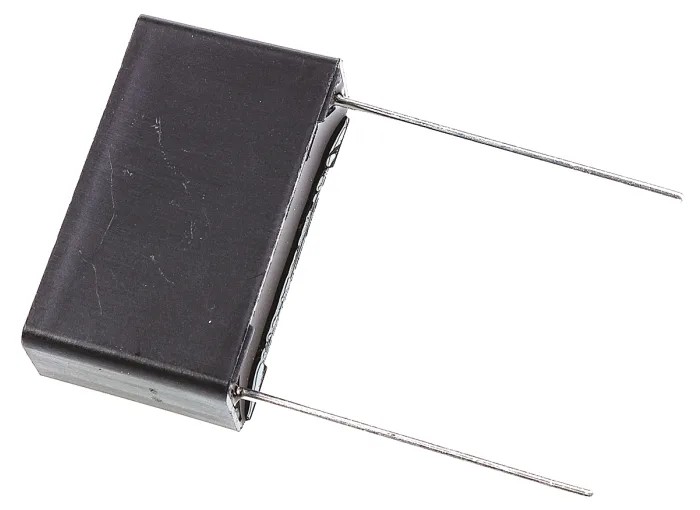

Panasonic ECQUA Film Capacitor X2 Suppression Class ±10% Tolerance 470nF 275V AC Through Hole ECQUAAF474K
Specifications
| Country of Origin | India |
|---|---|
| Brand | Panasonic |
| Height | 15mm |
| Length | 26mm |
| Model | ECQUAAF474K |
| Packaging | Bag |
| Width | 8.5mm |
| Mount Type | Through Hole |
| Series | ECQUA |
| Maximum Operating Temperature | 110°C |
| Tolerance | ±10 % |
| Capacitance | 470nF |
| Minimum Operating Temperature | -40°C |
| Terminal type | Through Hole |
| Dissipation Factor | 0.2% |
| Rated AC Voltage | 275V ac |
| Lead Pitch | 22.5mm |
| Lead Diameter | 0.8mm |
| Automotive Standard | AEC-Q200 |
| Suppression Class | X2 |
Key Features
- Features through hole mount type suitable for PCB assembly.
- Offers ±10% capacitance tolerance ensuring precision.
- Rated for AC voltage up to 275V with suppression class X2.
- Meets automotive standard AEC-Q200 for high reliability.
- Operates in temperature range from -40°C to 110°C.
- Equipped with 22.5mm lead pitch and 0.8mm lead diameter for secure connection.
- Constructed with flame retardant plastic housing and non-combustible resin for enhanced safety.
- Complies with international standards UL 60384-14, CSA E60384-14, EN 60384-14.
Product Description
Panasonic ECQUAAF474K film capacitor is a reliable electronic passive component designed for interference suppression applications in industrial and automotive environments. It offers a capacitance of 470nF with a tolerance of ±10%, rated for an AC voltage of 275V and suppression class X2. The capacitor features a through hole mounting style with a lead pitch of 22.5mm and lead diameter of 0.8mm, ensuring secure and stable PCB connections.
Encased in a flame retardant plastic housing combined with a non-combustible resin, this capacitor provides enhanced safety and flame resistance. It complies with key international standards including UL 60384-14, CSA E60384-14, and EN 60384-14, meeting safety and performance requirements across global markets.
Designed for use in interference suppressors, the ECQUAAF474K is suitable for both industrial and automotive electronic circuits, meeting automotive standard AEC-Q200. It is capable of operating continuously in temperatures ranging from -40°C to 110°C, making it versatile across diverse environmental conditions.
Through hole mount type for robust PCB integration. ±10% capacitance tolerance for accurate performance. Rated AC voltage of 275V with X2 suppression class. Certified under UL, CSA, and European safety standards. Compact size with dimensions 26mm x 15mm x 8.5mm.
Flame retardant material construction for safety assurance. Lead pitch 22.5mm and diameter 0.8mm for electrical stability. Supports industrial, automotive, and power electronics applications. Suitable for interference suppression coil and suppression circuits.
Reliable performance in harsh temperature environments.
Panasonic film capacitors are recognized worldwide for their quality, safety features, and reliability. This ECQUAAF474K capacitor offers an optimal solution where safety and precise capacitance control are critical, enhancing circuit protection against electrical noise and transients.
Explore our Film Capacitor category at EnvMart for additional Panasonic and compatible options designed for demanding electronic component requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Panasonic ECQUAAF474K has a capacitance value of 470nF with a tolerance of ±10%.
This film capacitor is rated for an AC voltage of 275V.
It operates in a temperature range from -40°C to 110°C.
The lead pitch is 22.5mm and the lead diameter is 0.8mm, ensuring secure connections.
It features a through hole mounting type suitable for PCB assembly.
This capacitor complies with international standards including UL 60384-14, CSA E60384-14, and EN 60384-14.
Yes, it meets the automotive standard AEC-Q200, making it suitable for automotive applications.
It is constructed with a flame retardant plastic housing and a non-combustible resin for enhanced safety.
The dimensions of this capacitor are 26mm in length, 15mm in height, and 8.5mm in width.
The dissipation factor for this model is 0.2%.
It is designed for interference suppression applications in industrial and automotive environments.
This model belongs to the ECQUA series of film capacitors.
