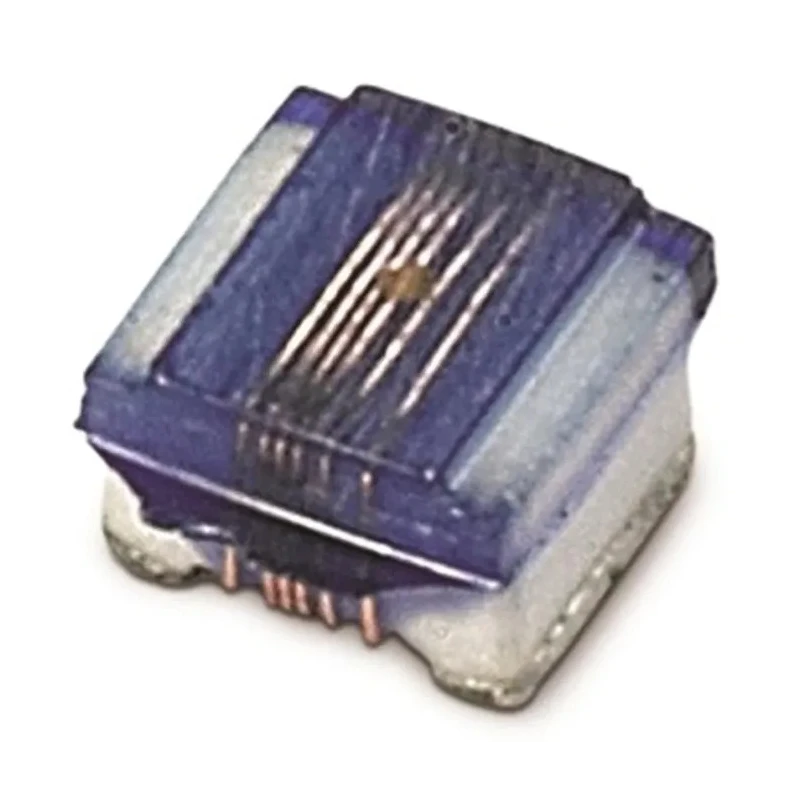

Wurth Elektronik Wirewound Surface Mount Inductor WE-KI 0603 Ceramic Core 3.3 μH 700 mA 60 mΩ 5.8 GHz Q22 744761033A

Free Delivery in India | Lowest Global Shipping Charges

Wurth Elektronik Wirewound Surface Mount Inductor WE-KI 0603 Ceramic Core 3.3 μH 700 mA 60 mΩ 5.8 GHz Q22 744761033A

Name: Wurth Elektronik Wirewound Surface Mount Inductor WE-KI 0603 Ceramic Core 3.3 μH 700 mA 60 mΩ 5.8 GHz Q22 744761033A
Brand: Wurth Elektronik
SKU: 129027
Price: 0.37 USD
Availability: InStock



Category Surface Mount Inductor Brand Wurth Elektronik Condition New

Specifications

Country of Origin	China
Brand	Wurth Elektronik
Height	1.05mm
Length	1.6mm
Model	744761033A
Depth	1.05mm
Series	WE-KI
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-40°C
Core Material	Ceramic
Inductance	3.3μH
Standards/Approvals	RoHS
Package/Case	0603
Maximum DC Current	700mA
Maximum DC Resistance	60mΩ
Maximum Self Resonant Frequency	5.8GHz
Minimum Quality Factor	22
Inductor Construction	Wirewound

Key Features

This inductor has a maximum DC resistance of 60 mΩ, ensuring efficient current flow.
The device operates reliably between -40°C and 125°C, suitable for varied environments.
The WE-KI series features a wirewound ceramic construction optimized for high frequency use.
It achieves a minimum quality factor of 22 and a maximum self-resonant frequency of 5.8 GHz.
It measures 1.6 mm in length, 1.05 mm in height, and 1.05 mm in depth, fitting compact surface mount applications.
RoHS compliant, meeting environmental standards for lead-free manufacturing.
This inductor is widely used in wireless LAN, Bluetooth, and RF transceiver and communication circuits.
Recommended reflow soldering process supports automated assembly efficiency.

Product Description

Wurth Elektronik model 744761033A is a wirewound Surface Mount Inductor from the WE-KI series, designed with a ceramic core and a compact 0603 package. It offers a precise inductance of 3.3 μH and supports a maximum DC current of 700 mA, making it suitable for high frequency applications requiring stability and high Q factor performance.

The component features a low maximum DC resistance of 60 mΩ, enabling efficient power handling and low losses. It operates reliably in temperature ranges from -40°C to 125°C, providing durability in harsh industrial environments.

Physical dimensions of the inductor are 1.6 mm length, 1.05 mm height, and 1.05 mm depth which makes it ideally suited for tight-layout surface mount circuits. The inductor construct is wirewound ceramic, contributing to excellent thermal stability and high frequency capability.

Achieving a maximum self-resonant frequency of 5.8 GHz and a minimum quality factor of 22, this inductor supports applications in wireless LAN, Bluetooth devices, and RF transceivers where signal integrity is critical.

This RoHS compliant device supports reflow soldering processes, ensuring compatibility with automated PCB assembly lines. It is manufactured in China with strict quality control for consistent performance.

This inductor has a maximum DC resistance of 60 mΩ, ensuring low power loss. It operates from -40°C up to 125°C, suitable for industrial conditions. The WE-KI series wirewound ceramic inductor is optimized for high-frequency applications.

Compact 0603 package allows use in dense electronic assemblies. High Q factor of at least 22 supports efficient energy transfer. Maximum self-resonant frequency of 5.8 GHz allows use in RF circuits. Recommended for wireless communication and RF transceiver systems.

RoHS compliance ensures environmentally safe production.

This component is ideal for electronics, telecom, and wireless communication manufacturing and design projects. See EnvMart for more Wurth Elektronik inductors and other electronic components optimized for your industrial needs.
