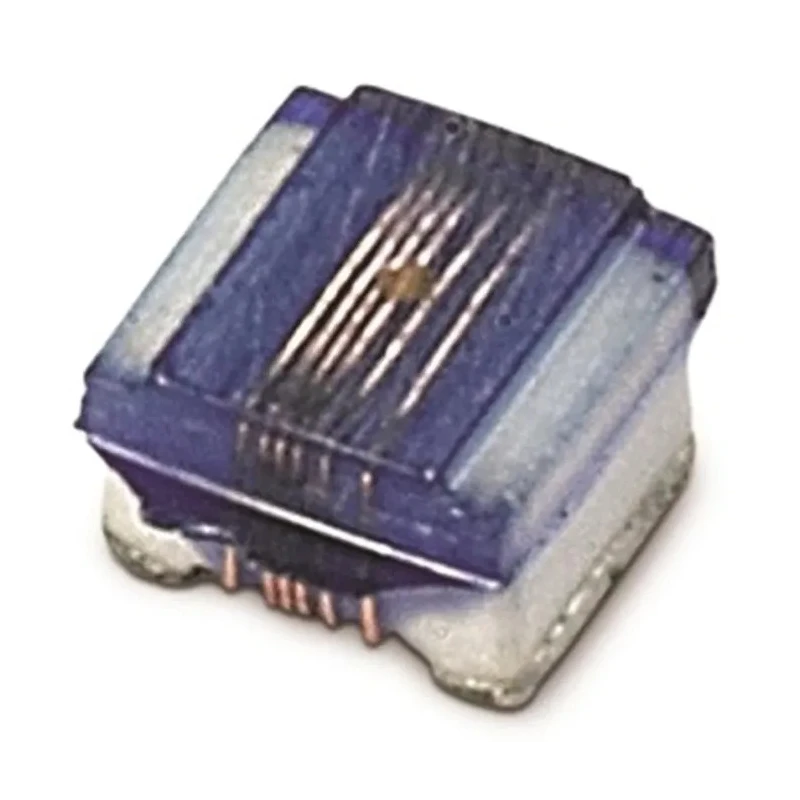

Wurth Elektronik Wirewound Surface Mount Inductor 100 nH ±5 % 400 mA 0805C Ceramic Core WE-KI 7447602C
Specifications
| Country of Origin | India |
|---|---|
| Brand | Wurth Elektronik |
| Height | 1.28mm |
| Length | 2.28mm |
| Model | 7447602C |
| Depth | 1.7mm |
| Packaging | Tape & Reel |
| Series | WE-KI |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ceramic |
| Inductance | 100nH |
| Standards/Approvals | IEC 61249-2-21, JEDEC JS709B, REACH, RoHS |
| Package/Case | 0805C |
| Maximum DC Current | 400mA |
| Pin Count | 2 |
| Maximum DC Resistance | 460mΩ |
| Inductance Tolerance | ±5 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 1.2GHz |
| Minimum Quality Factor | 50 |
| Inductor Construction | Wirewound |
Key Features
- High frequency wirewound inductor designed for surface mounting.
- Ceramic core construction ensures thermal stability.
- Compact 0805C package size measuring 2.28 x 1.28 x 1.7 mm.
- Maximum self-resonant frequency of 1.2 GHz for RF applications.
- Inductance tolerance of ±5 % for accurate filtering.
- Supports operating temperatures from -40 °C up to 125 °C.
- Maximum DC resistance of 460 mΩ to minimize power loss.
- Pin count of 2 with surface mount termination style.
Product Description
Wurth Elektronik 7447602C wirewound surface mount inductor from the WE-KI series features a ceramic core and an 0805C package suitable for high frequency and RF circuit applications. This surface mount inductor has an inductance of 100 nH with a ±5 % tolerance, supporting currents up to 400 mA DC.
The inductor construction utilizes wirewound technology on a ceramic core, providing excellent thermal stability and a high quality factor with a minimum Q of 50. Its maximum self-resonant frequency of 1.2 GHz makes it ideal for wireless LAN, Bluetooth, and RF transceiver circuits.
With dimensions of 2.28 mm length, 1.28 mm height, and 1.7 mm depth, this component fits compact PCBs requiring space-efficient filtering solutions. The termination style is surface mount, packaged on tape and reel for automated assembly processes.
The device operates reliably between -40°C and 125°C and has a maximum DC resistance of 460 mΩ to lower losses in sensitive circuits. It is compliant with industry standards IEC 61249-2-21, JEDEC JS709B, REACH, and RoHS, ensuring environmental and safety certifications.
High frequency wirewound inductor designed for surface mounting. Ceramic core construction ensures thermal stability. Compact 0805C package size measuring 2.28 x 1.28 x 1.7 mm. Maximum self-resonant frequency of 1.2 GHz for RF applications.
Inductance tolerance of ±5 % for accurate filtering. Supports operating temperatures from -40 °C up to 125 °C. Maximum DC resistance of 460 mΩ to minimize power loss. Pin count of 2 with surface mount termination style. Compliance with IEC 61249-2-21, JEDEC JS709B, REACH, and RoHS standards.
This Wurth Elektronik surface mount inductor is optimized for applications in industrial electronics, communications equipment, wireless modules, and precision filtering in power supplies. It offers reliable performance for engineers designing compact, high-frequency circuits requiring high quality inductors.
Explore the full range of Wurth Elektronik Inductors and other high-quality passive components at EnvMart to meet your electronic design and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has an inductance value of 100 nH with a tolerance of ±5 %.
It supports a maximum DC current of 400 mA.
The dimensions of the package are 2.28 mm in length, 1.28 mm in height, and 1.7 mm in depth.
The maximum self-resonant frequency is 1.2 GHz, making it suitable for RF applications.
It operates reliably between -40 °C and 125 °C.
The inductor features a surface mount termination style.
The maximum DC resistance is 460 mΩ, which helps minimize power loss.
It uses a ceramic core material, which ensures thermal stability.
It complies with IEC 61249-2-21, JEDEC JS709B, REACH, and RoHS standards.
This inductor is constructed using wirewound technology.
The minimum quality factor is 50, indicating its effectiveness in filtering applications.
The inductor is packaged on tape and reel, suitable for automated assembly processes.
