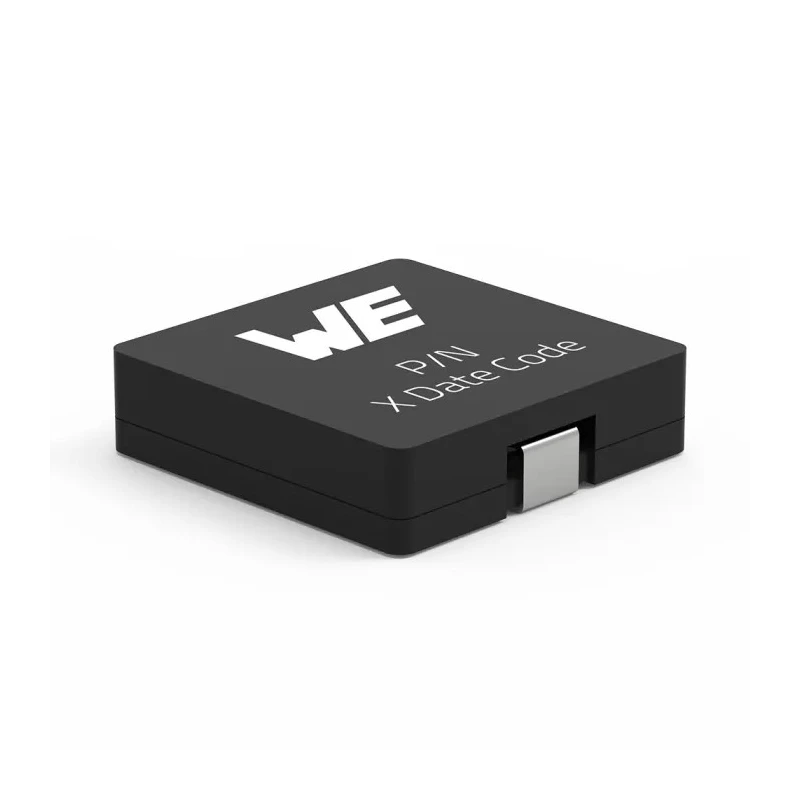

Wurth Elektronik WE-HCI 1890 Shielded Wirewound Surface Mount Inductor with WE-Perm2 Core 5.6 μH Flat Wire Winding 7443556560

Wurth Elektronik 7443556560 is a high-performance shielded wirewound Surface Mount Inductor designed with a WE-Perm2 core and a flat wire winding providing an inductance value of 5.6 μH. This component supports a maximum DC current of 19 A and is encapsulated in a compact 1890 package suitable for automated tape and reel assembly processes.

Its magnetically shielded design significantly reduces stray electromagnetic fields, enhancing circuit stability and shielding sensitive components in industrial computer systems, graphic cards, motherboards, and DC-DC converters. The low DC resistance of 3.7 mΩ contributes to energy efficiency and minimal power loss in switching regulators and polyphase-switching regulator applications.

Operating reliably over a broad temperature range from -40°C to 125°C, this inductor meets stringent automotive standard AEC-Q200 requirements, as well as environmental compliance including RoHS, REACH, JEDEC JS709B, and IEC 61249-2-21. The maximum self-resonant frequency of 28 MHz ensures suitability for high-frequency power supply circuits.

The 2-pin surface mount design allows for efficient PCB real estate utilization in compact industrial and consumer electronics assemblies. The WE-Perm2 core and moulded construction offer durability under mechanical and thermal stresses commonly encountered in industrial environments.

This inductance product is ideal for applications including industrial computers, laptops, graphic cards, DC-DC converters, filters, and high current switching regulators where high current capacity and shielding are critical.

Inductance value of 5.6 μH for precise magnetic control. Maximum DC current rating of 19 A for high power applications. 1890 package size with tape and reel packaging for assembly automation. Magnetically shielded to minimize EMI and maintain circuit integrity.

Flat wire winding with very low DC resistance of 3.7 mΩ for energy efficiency. Wide operating temperature range from -40°C to 125°C suitable for automotive environments. Complies with AEC-Q200 automotive specification and environmental standards RoHS, REACH.

High self-resonant frequency of 28 MHz supports demanding electronic circuits. Surface mount termination style optimized for compact PCB assembly. Durable WE-Perm2 core and moulded construction for rugged industrial use.

Explore the range of Wurth Elektronik inductors and surface mount components available on EnvMart for your advanced electronics manufacturing needs.
