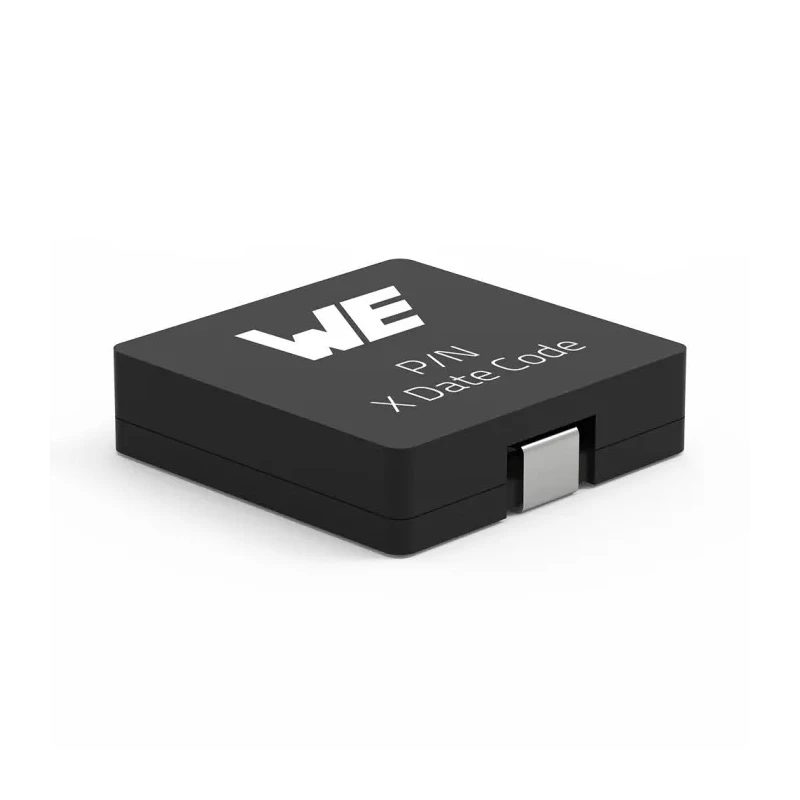

Wurth Elektronik WE-HCI 1365 Shielded Wirewound Surface Mount Inductor with WE-Perm Core 3.7μH Flat Wire Winding 7443551370
Specifications
| Country of Origin | China |
|---|---|
| Brand | Wurth Elektronik |
| Height | 6.2mm |
| Length | 13.2mm |
| Depth | 12.8mm |
| Packaging | Tape & Reel |
| Series | WE-HCI |
| Maximum Operating Temperature | 155°C |
| Minimum Operating Temperature | -40°C |
| Core Material | WE-Perm |
| Inductance | 3.7μH |
| Standards/Approvals | RoHS, REACH, JEDEC JS709B, IEC 61249-2-21 |
| Package/Case | 1365 |
| Maximum DC Current | 17A |
| Pin Count | 2 |
| Maximum DC Resistance | 4.9mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 26MHz |
| Inductor Construction | Flat Wire Winding |
| Automotive Standard | AEC-Q200 |
Key Features
- Employs a magnetically shielded WE-Perm core ensuring low stray fields.
- Features flat wire winding construction for enhanced efficiency.
- Has a maximum DC current rating of 17A suitable for demanding applications.
- Tolerates operating temperatures from -40°C up to 155°C for reliability.
- Encased in a compact 1365 package with dimensions 13.2mm x 12.8mm x 6.2mm.
- Offers an inductance tolerance of ±20 % accommodating design variances.
- Surface mount termination style facilitates automated PCB assembly.
- Compliant with RoHS, REACH, JEDEC JS709B, and IEC 61249-2-21 standards.
Product Description
Wurth Elektronik 7443551370 is a shielded wirewound surface mount inductor from the WE-HCI 1365 series, built with a WE-Perm core and flat wire winding that delivers 3.7μH inductance. Designed for high current handling, with a maximum DC current of 17A and low DC resistance of 4.9mΩ, it supports industrial, computer, and power electronics applications.
This inductor is magnetically shielded to minimize electromagnetic interference and features a compact 1365 case size measuring 13.2mm in length, 12.8mm in depth, and 6.2mm in height. It is molded and surface mount compatible with a 2-pin configuration, meeting demanding automotive and industrial standards such as AEC-Q200.
The component operates reliably in a broad temperature range from -40°C to 155°C, with an inductance tolerance of ±20 % and a maximum self-resonant frequency of 26MHz. It complies with RoHS, REACH, JEDEC JS709B, and IEC 61249-2-21 regulations ensuring environmental and quality standards are met.
This inductor is suitable for use in industrial computers, laptops, graphic cards, motherboards, DC-DC converters, filters, high current switching regulators, and polyphase-switching regulators. Its flat wire coil construction offers a low stray field and very low DC resistance tolerance improving performance in sensitive electronics environments.
Employs a magnetically shielded WE-Perm core to reduce interference. Flat wire winding enhances electrical efficiency and current handling. Maximum DC current of 17A supports high power circuits. Wide operating temperature range ensures durability in harsh conditions.
Compact 1365 package size enables use in space-constrained designs. Inductance tolerance of ±20 % allows design flexibility. Meets automotive standard AEC-Q200 for reliability and quality. Surface mount terminations compatible with automated assembly.
Country of origin is China. Explore more advanced Surface Mount Inductors and precision passive components at EnvMart to enhance your electronic designs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has an inductance value of 3.7μH.
It has a maximum DC current rating of 17A, suitable for demanding applications.
The inductor measures 13.2mm in length, 12.8mm in depth, and 6.2mm in height.
It operates reliably in a temperature range from -40°C to 155°C.
It features a surface mount termination style, which facilitates automated PCB assembly.
The maximum self-resonant frequency is 26MHz.
It has a maximum DC resistance of 4.9mΩ.
This model complies with RoHS, REACH, JEDEC JS709B, and IEC 61249-2-21 standards.
The inductor is built with a WE-Perm core, which helps minimize electromagnetic interference.
It meets the automotive standard AEC-Q200, ensuring reliability and quality for automotive applications.
It features a flat wire winding construction that enhances electrical efficiency and current handling.
It is suitable for use in industrial computers, laptops, graphic cards, motherboards, and DC-DC converters.
