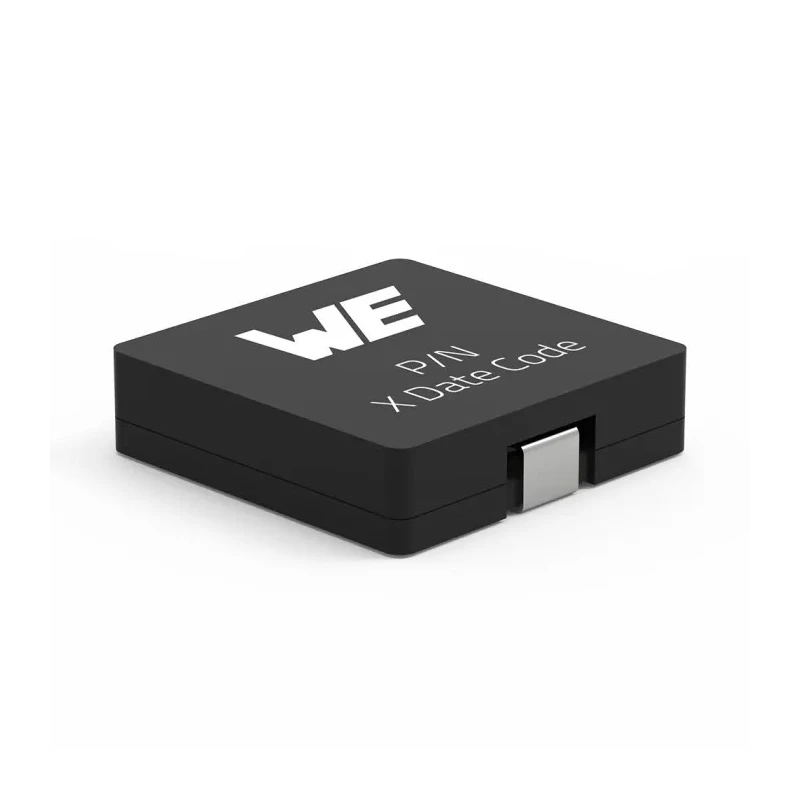

Wurth Elektronik WE-HCI 7050 Shielded Wirewound Surface Mount Inductor with WE-Superflux Core 4.9 μH 6.5A 14.5mΩ 744314490

Wurth Elektronik 744314490 is a premium WE-HCI series wirewound Surface Mount Inductor magnetically shielded with a WE-Superflux core, offering an inductance of 4.9 μH and designed for high current stability with a maximum DC current rating of 6.5A. Its flat wire winding technique ensures low DC resistance of 14.5 milliohms, contributing to efficient power conversion in demanding industrial and automotive applications.

This inductor is housed in a compact 7050 package measuring 7 mm in length, 4.8 mm in height, and 6.9 mm in depth, optimized for modern high-density PCB layouts. It supports a wide operating temperature range from -40°C to 150°C, complying with the automotive standard AEC-Q200, making it ideal for automotive electronics, industrial computers, graphic cards, and motherboards.

The device has a maximum self-resonant frequency of 56 MHz and is constructed with a molded casing for durability and electromagnetic shielding, which limits stray fields ensuring minimal interference with adjacent components. Packaging is provided as tape and reel to facilitate automated placement in manufacturing.

Certifications include compliance with RoHS, REACH, JEDEC JS709B, and IEC 61249-2-21 standards, assuring environmental safety and quality. This inductor is suitable for DC-DC converters, filters, high current switching regulators, and polyphase-switching regulators.

Designed for high current applications with a maximum DC current rating of 6.5A. Features a low maximum DC resistance of 14.5 milliohms for efficiency. Constructed with flat wire winding and a compact 7050 package size for surface mount use.

Operates within a temperature range of -40°C to 150°C suitable for automotive standards including AEC-Q200. Magnetically shielded to minimize electromagnetic interference and support sensitive electronics. Maximum self-resonant frequency is 56 MHz ensuring reliable performance at high frequencies.

Complies with international standards such as RoHS, REACH, JEDEC JS709B, and IEC 61249-2-21. Packaging is tape and reel for efficient automated assembly processes. Manufactured in China under stringent quality and environmental controls.

This Wurth Elektronik WE-HCI series inductor is widely used across industrial, automotive, computer hardware, and power electronics sectors, where reliable inductance and current handling capabilities are critical. It supports compact, high-performance electronic designs requiring low stray fields and high frequency reliability.
