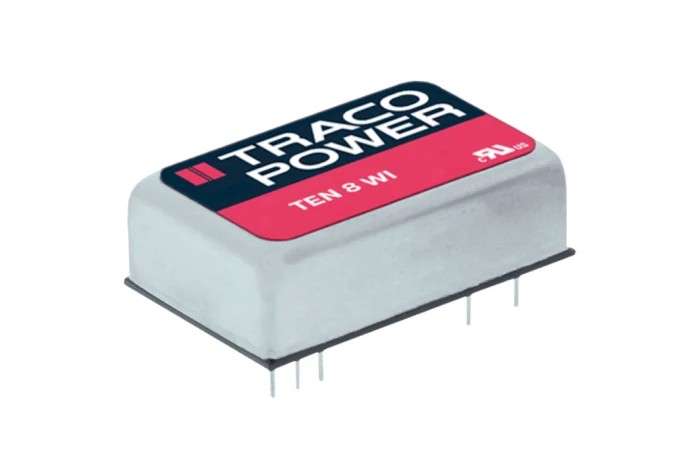

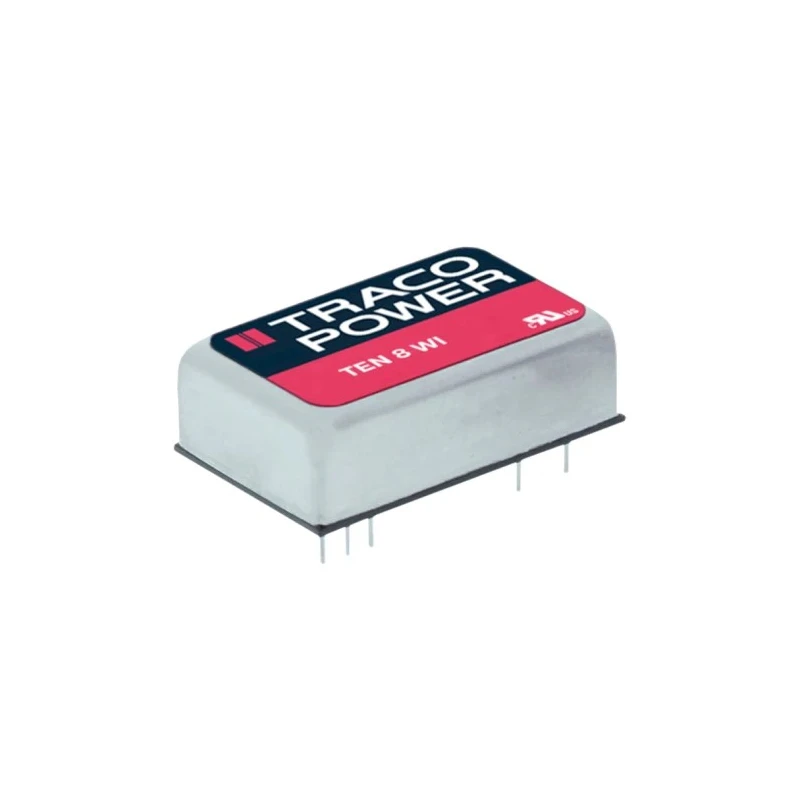

TRACOPOWER 8W Regulated Isolated DC/DC Converter DIP-24 Package Wide Input Range TEN 8-7223WI
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters TRACOPOWER TEN 8WI DC/DC Converter, 160V dc, 43 V |
| Brand | TRACOPOWER |
| Efficiency | 85% |
| Length | 32mm |
| Model | TEN 8-7223WI |
| Depth | 10.2mm |
| Gross Weight | 18g |
| Width | 20.3mm |
| Mount Type | Through Hole |
| Series | TEN 8WI |
| Maximum Operating Temperature | 85°C |
| Package Type | DIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 700000h |
| Number of outputs | 2 |
| Ripple and Noise | 20mV Pk-Pk |
| Maximum Output Power | 3W |
| Maximum Input Voltage | 160V dc |
| Standards/Approvals | RoHS |
| Minimum Input Voltage | 43V |
| Number of Pins | 9 |
| Output Voltage 1 | 160, 43V dc |
| Output Current 1 | 267mA |
| Isolation Voltage | 1.5kV dc |
| Input Ratio | 1:6 |
| Input Ratio 1 | 6 |
Key Features
- Wide input voltage range from 43 V dc to 160 V dc for versatile applications.
- Dual output voltages with isolated outputs ensure electrical separation and safety.
- Maximum output power of 3 W suitable for low power device requirements.
- High efficiency of 85% reduces energy losses and heat generation.
- Operating temperature range spans from -40°C to 85°C for reliable performance in harsh environments.
- Robust through-hole mounting with DIP-24 metal package and insulated base plate.
- Compliant with EN 50155 and RoHS standards, suitable for railway and transportation applications.
- Reliable operation with 700,000 hours mean time between failures (MTBF).
Product Description
TRACOPOWER TEN 8-7223WI is a high-performance DC/DC converter designed for industrial and transportation power applications. Featuring an 8 Watt regulated and isolated output, this converter offers a wide input voltage range from 43 V to 160 V DC in a DIP-24 through-hole metal package with insulated base plate.
It delivers dual outputs with a maximum output power of 3 W, supporting an output current of up to 267 mA with minimal ripple and noise of just 20 mV peak-to-peak. The TEN 8-7223WI provides robust electrical isolation of 1.5 kV DC, ensuring safety and signal integrity in demanding environments.
Operating efficiently with up to 85% efficiency, the module operates reliably in temperature extremes from -40°C to 85°C. Its rugged design complies with EN 50155 standard making it an excellent choice for railway and transportation power systems. Additionally, it meets RoHS requirements for environmentally friendly operation.
This DC/DC converter features a through-hole DIP package with a compact dimension of 32 mm length, 20.3 mm width, and 10.2 mm depth, weighing only 18 grams. Its mean time between failures (MTBF) of 700,000 hours attests to its durability and reliability in industrial control, telecom/datacom, measurement instrumentation, and wireless network applications.
A thermally shock-resistant and vibration-resistant design compliant with EN 61373 enhances its suitability for harsh industrial conditions. The device integrates remote On/Off control and under voltage lockout for added functional protection and control.
Wide 4:1 input voltage supports multiple DC input ranges. DIP-24 metal package with insulated base plate for easy PCB mounting. High isolation voltage of 1.5 kV DC ensures safety in critical systems. Stable operation over wide temperature and harsh environmental conditions.
Ideal for industrial, railway, telecom, and transportation power applications. This product is manufactured in Taiwan, Province Of China and is supplied in tube packaging ready for insertion into automated machinery for efficient production processes.
Explore EnvMart's extensive catalog of DC/DC Converters and power supplies for your industrial and electronic design needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a wide input voltage range from 43 V DC to 160 V DC.
The maximum output power is 3 W, suitable for low power device requirements.
It has a length of 32 mm, width of 20.3 mm, and depth of 10.2 mm.
The efficiency of this model is 85%, which helps reduce energy losses and heat generation.
It offers a robust electrical isolation of 1.5 kV DC, ensuring safety and signal integrity.
The operating temperature range spans from -40°C to 85°C, making it suitable for harsh environments.
This unit features dual outputs, supporting an output current of up to 267 mA.
It utilizes a through-hole mounting method with a DIP-24 metal package and insulated base plate.
The ripple and noise is specified at just 20 mV peak-to-peak, ensuring stable operation.
It is compliant with EN 50155 and RoHS standards, suitable for railway and transportation applications.
The MTBF is rated at 700,000 hours, indicating reliable operation over time.
This model is ideal for industrial control, telecom/datacom, measurement instrumentation, and wireless network applications.
