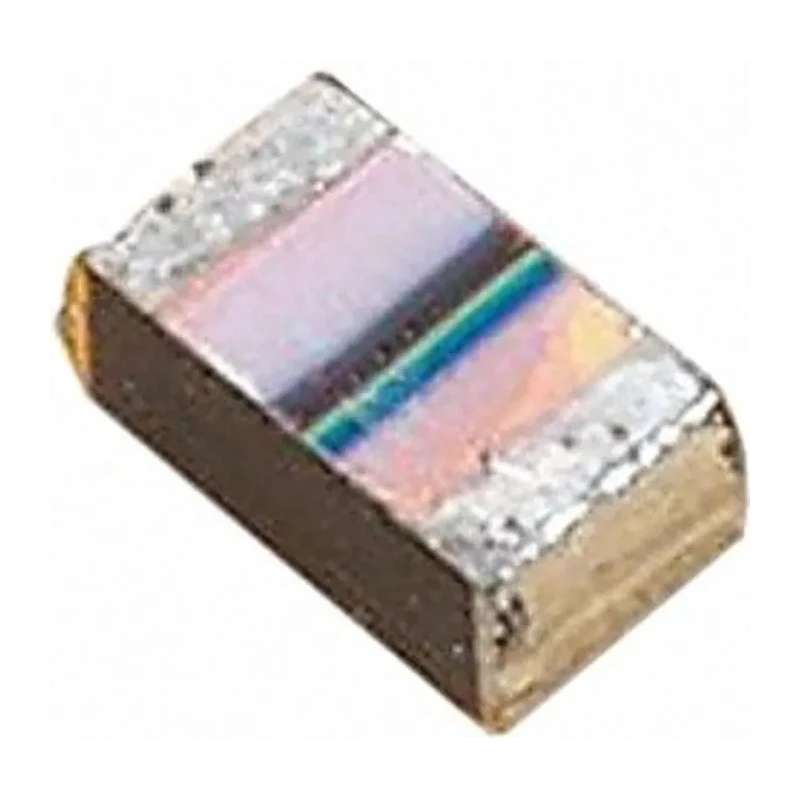

Panasonic Polypropylene Film Capacitor ±20% Tolerance 330 nF 16 V dc Surface Mount ECPU1C334MA5
Specifications
| Country of Origin | India |
|---|---|
| Brand | Panasonic |
| Height | 1mm |
| Length | 3.2mm |
| Model | ECPU1C334MA5 |
| Packaging | Tape & Reel |
| Width | 1.6mm |
| Mount Type | Surface |
| Series | ECPU (A) |
| Maximum Operating Temperature | 85°C |
| Tolerance | ±20 % |
| Capacitance | 330nF |
| Minimum Operating Temperature | -40°C |
| Terminal type | Surface Mount |
| Dissipation Factor | 1.5% |
| Standards/Approvals | RoHS |
| Package/Case | 1206 |
| Rated DC Voltage | 16V dc |
Key Features
- Constructed with mouldless inner electrode and stacked dielectric for improved reliability.
- Compact 1206 package format with 3.2 mm length, 1.6 mm width, and 1 mm height dimensions.
- Low dissipation factor of 1.5% ensures efficient performance in circuits.
- Suitable for noise suppression and audio coupling applications.
- Rated for operating temperatures from -40°C to 85°C.
- RoHS compliant and designed for reflow soldering assembly processes.
- Provides capacitance values up to 1.0 µF within the ECPU (A) series.
- Packaging supplied in tape and reel for automated insertion and production efficiency.
Product Description
Panasonic ECPU1C334MA5 polypropylene film capacitor is a surface mount passive electronic component designed for reliable performance in audio circuits and noise suppression applications. Featuring a mouldless construction with inner electrode and stacked dielectric, this capacitor provides capacitance of 330 nF with ±20% tolerance and a rated DC voltage of 16 V.
The compact 1206 package size measures 3.2 mm in length, 1.6 mm in width, and 1 mm in height, fitting easily into space-constrained PCB layouts. Its low dissipation factor of 1.5% allows for efficient energy handling and minimal losses.
Engineered to operate over a temperature range from -40°C to 85°C, the ECPU (A) series capacitors support reflow soldering assembly, making them ideal for modern surface mount manufacturing techniques.
Capacitors in this series supply capacitance up to 1.0 µF and feature tape and reel packaging for seamless integration into automated production lines, improving manufacturing efficiency.
Constructed with mouldless inner electrode and stacked dielectric. Compact 1206 surface mount package. Low dissipation factor of 1.5%. Suitable for noise suppression and coupling applications. Rated voltage of 16 V dc with ±20% tolerance.
Operating temperature from -40°C to 85°C. RoHS compliant and designed for reflow soldering. Supplied in tape & reel packaging. This Panasonic film capacitor is suited for use in industrial electronics, audio equipment, and general electronic circuits requiring reliable passive components.
Explore more Film Capacitors and related electronic components on EnvMart for your manufacturing and design needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The capacitance value of this model is 330 nF with a tolerance of ±20%.
This capacitor has a rated DC voltage of 16 V.
The dimensions of this surface mount capacitor are 3.2 mm in length, 1.6 mm in width, and 1 mm in height.
The maximum operating temperature for this capacitor is 85°C.
The minimum operating temperature for this capacitor is -40°C.
It is supplied in tape and reel packaging, which is suitable for automated insertion processes.
The dissipation factor for this model is 1.5%.
Yes, this capacitor is RoHS compliant.
This model features a surface mount design.
It is suitable for noise suppression and audio coupling applications.
This capacitor belongs to the ECPU (A) series.
The terminal type for this capacitor is surface mount.
