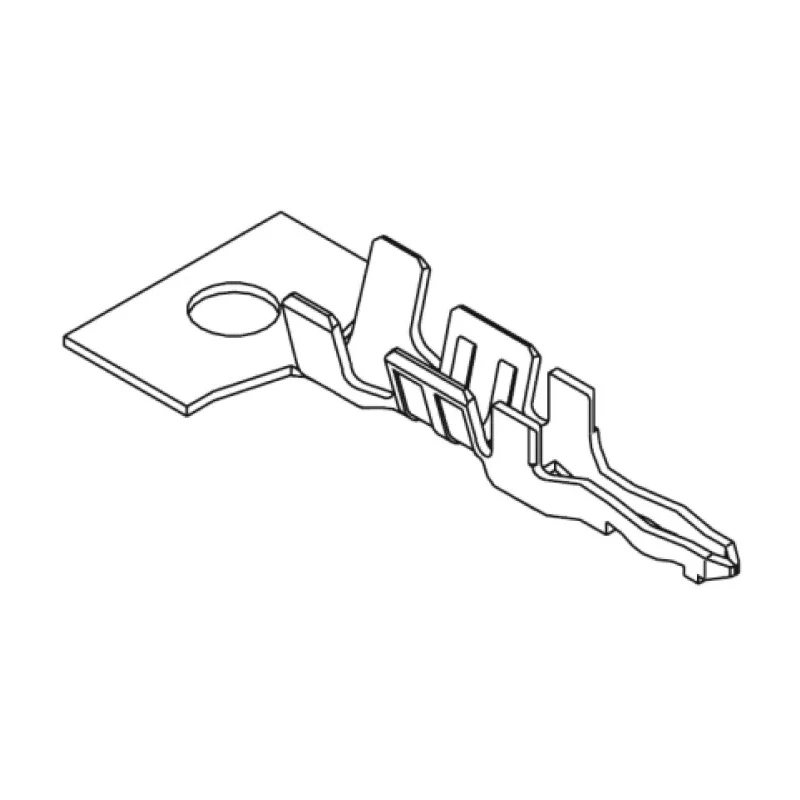

Molex 50097 Series Male Crimp Terminal, For 2.5 mm Board-In Connector Housing, 24 AWG Min, 20 AWG Max, 4A 50097-8000

Name: Molex 50097 Series Male Crimp Terminal, For 2.5 mm Board-In Connector Housing, 24 AWG Min, 20 AWG Max, 4A 50097-8000
Brand: Molex
SKU: 128464
Price: 0.09 USD
Availability: InStock



Category Crimp Contacts Brand Molex Condition New

Specifications

Country of Origin	India
Brand	Molex
Current	4A
Gender	Male
Contact Material	Phosphor Bronze
Series	50097
Termination Type	Crimp
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-40°C
For Use With	2.5 mm Board-In Connector Housing
Contact Plating	Tin
Minimum Wire Size mm²	0.2mm²
Maximum Wire Size mm²	0.5mm²
Minimum Wire Size AWG	24AWG
Maximum Wire Size AWG	20AWG
Maximum Contact Resistance	5mΩ

Key Features

Constructed with phosphor bronze for reliable conductivity and strength.
Features tin plating to enhance corrosion resistance and solderability.
Supports crimp termination for secure electrical connections.
Operates within temperature ranges from -40°C to 105°C.
Designed with a spring-fit style terminal providing high pressure contact and precise board positioning.
Maximum contact resistance of 5 milliohms ensures minimal signal degradation.
Ideal for electronic component applications requiring reliable PCB connections.
Compatible with 2.5 mm board-in connector housings for versatile usage.

Product Description

The Molex 50097-8000 is a male crimp terminal from the 50097 Series, engineered for electronic and electrical applications requiring reliable and durable PCB connector solutions. Designed specifically for use with 2.5 mm board-in connector housings, this crimp terminal supports wire sizes ranging from 24 AWG minimum to 20 AWG maximum with a rated current capacity of 4 amperes.

Manufactured from phosphor bronze, the terminal offers strong electrical conductivity coupled with mechanical resilience. The contact plating of tin ensures excellent corrosion protection and enhances solderability for long-lasting performance in demanding environments.

This terminal features a spring-fit design promoting high-pressure contact with PCB pads, aided by a guide ridge that ensures accurate board placement during assembly operations. It supports crimp termination, facilitating secure and stable wire-to-board connections critical in various industrial and commercial electronic equipment.

The operating temperature range from -40°C to 105°C allows the terminal to perform efficiently under diverse environmental conditions commonly encountered in industrial, manufacturing, and automation systems.

Constructed from phosphor bronze material. Tinned contact plating enhances corrosion resistance. High contact pressure spring-fit design for secure PCB interface. Crimp termination type for efficient wire connection. Low maximum contact resistance of 5 milliohms ensures signal integrity.

Temperature range from -40°C to 105°C meets demanding application environments. Supports wire sizes from 24 AWG to 20 AWG. Rated for continuous operation at 4A current.

This Molex male crimp terminal is well-suited for use in industrial automation, electronics manufacturing, and telecommunications equipment, providing dependable electrical connections in compact PCB mounting scenarios.
