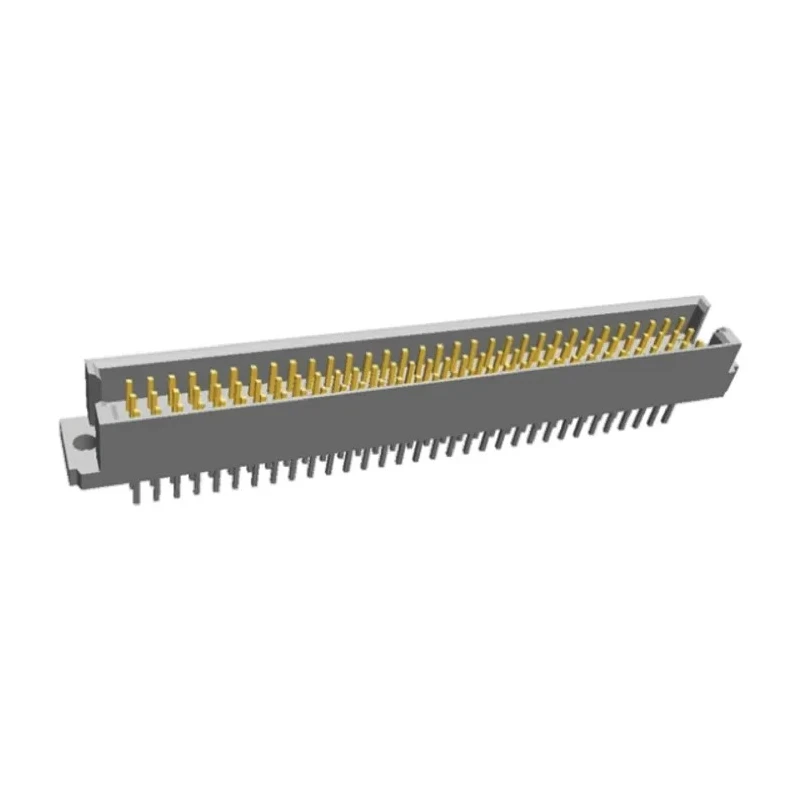

TE Connectivity Eurocard 96 Way 2.54 mm Pitch DIN 41612 Connector Through Hole Press-in Type C/2, Class C2, 3 Row 5650889-5

TE Connectivity 5650889-5 Eurocard 96 Way DIN 41612 Connector is a high-performance electrical connector designed for industrial and electronic applications requiring reliable signal integrity. The connector features a 2.54 mm pitch with 96 contacts arranged in 3 rows (type C/2), offering a robust interface for PCB systems. The press-in termination and through hole mount provide secure and durable mechanical and electrical connections.

The contacts are crafted from copper alloy with a tin plating, ensuring excellent conductivity and corrosion resistance. The connector housing is made from a flame retardant polymer material with polarizing keys to prevent incorrect mating, thus enhancing safety and reliability in system integrations. Classified as Class C2, this connector supports complex wiring needs with a 3A current rating at 250 V voltage capacity.

This connector complies with the DIN 41612 and IEC 60603-2 standards, ensuring it meets international quality and compatibility requirements. It is rated for a wide operating temperature range from -55°C to 105°C, making it suitable for demanding industrial environments and applications such as high-speed trains, data centers, telecommunications equipment, and industrial control systems.

Typical applications include common bus systems such as STE Bus, CIMBUS, FUTUREBUS, VMEBus, MULTIBUS II, and NUBUS. It is widely used in backplane and motherboard assemblies, switching systems, and modular rack systems, offering reliable interconnection solutions for electronic manufacturing and maintenance.

The connector houses 96 contacts arranged in 3 rows for efficient signal connections. Constructed with copper alloy contacts plated with tin to ensure reliable conductivity. Designed for through hole mounting with a straight orientation for rugged PCB installation.

Operating temperature range from -55°C to 105°C supports diverse industrial environments. Rated for 250 V and 3 A current, suitable for various electronic and power applications. Housing is made from flame retardant polymer with polarization to prevent mis-mating.

Meets DIN 41612 and IEC 60603-2 standards ensuring compatibility and quality. Ideal for use in telecommunications, industrial control, servers, and modular rack systems. Explore more DIN 41612 Connectors from TE Connectivity and other industrial-quality Eurocard connectors available at EnvMart for your electronic components needs.
