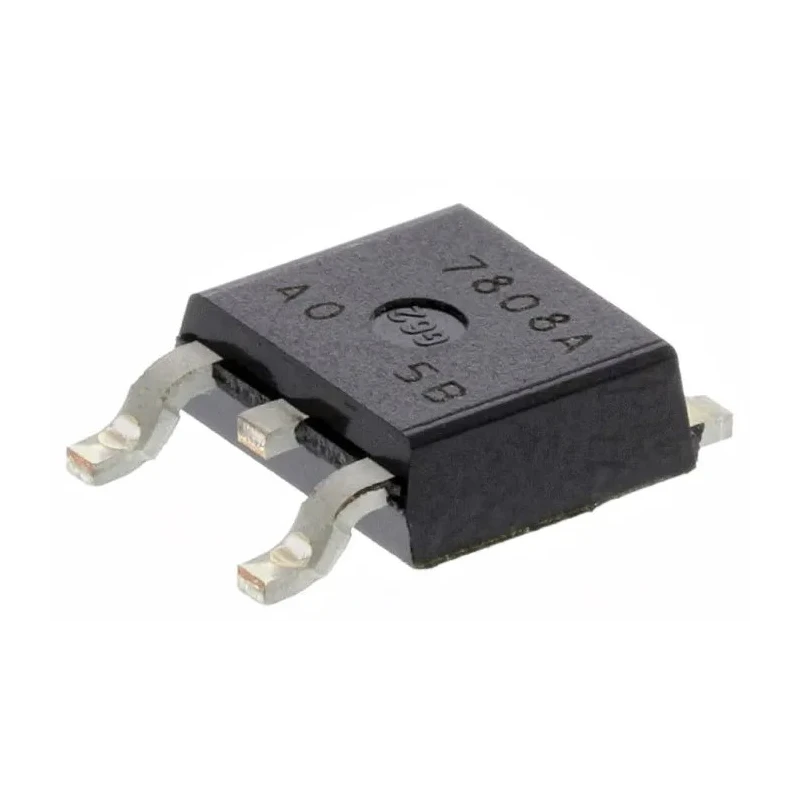

Nisshinbo Micro Devices 1-Channel Linear Voltage Regulator, 1.5A, 8V Output, TO-252 3-Pin NJM7808DL1A-TE1
Specifications
| Country of Origin | India |
|---|---|
| Brand | Nisshinbo Micro Devices |
| Height | 2.29mm |
| Length | 6.54mm |
| Model | NJM7808DL1A-TE1 |
| Width | 6.04mm |
| Mount Type | Surface |
| Output type | Fixed |
| Series | NJM78xx |
| Power Rating | 1W |
| Output Current | 1.5A |
| Maximum Operating Temperature | 85°C |
| Package Type | TO-252 |
| Load Regulation | 160 mV |
| Minimum Operating Temperature | -40°C |
| Polarity | Positive |
| Regulator Type | Linear Voltage |
| Number of outputs | 1 |
| Maximum Input Voltage | 35V |
| Output Voltage | 8V |
| Quiescent Current | 4.3mA |
| Line Regulation | 160 mV |
| Pin Count | 3 |
Key Features
- Provides stable, fixed 8V output suitable for various electronics applications.
- Supports a maximum output current of 1.5 amperes for moderate power requirements.
- Equipped with internal thermal overload protection and current limiting.
- Compact TO-252 3-Pin surface mount package facilitates easy PCB assembly.
- Operates efficiently within an ambient temperature range of -40°C to 85°C.
- Low quiescent current of 4.3mA minimizes power consumption during inactive periods.
- Incorporates bipolar technology for reliable linear voltage regulation.
- Line and load regulation both at 160 mV ensure output stability.
Product Description
Nisshinbo Micro Devices NJM7808DL1A-TE1 linear voltage regulator is a high-reliability fixed voltage regulator designed to provide secure and stable output voltages in electronic circuits. It features a compact TO-252 3-Pin surface mount package that supports easy integration into electronic assemblies. The device is capable of delivering an output current of up to 1.5A with a fixed 8V output voltage, making it suitable for a wide variety of power management applications including on-card regulation and miniature electronic devices.
This voltage regulator incorporates internal protections such as thermal overload shut-down and current limiting, ensuring device safety and long operational life. With a line and load regulation of 160mV, it maintains voltage stability under varying input and load conditions. The quiescent current is low (4.3mA), enhancing energy efficiency for battery-powered and other low power applications. Its operating temperature range spans from -40°C to 85°C, permitting use in diverse environmental conditions.
It supports positive polarity and has a maximum input voltage of 35V, ensuring compatibility with common power supply voltages. This product is ideal for industrial, electronic component manufacturing, and repair operations where reliable voltage regulation is critical.
Provides fixed 8V output with 1.5A capacity. Surface mount TO-252 3-Pin package for space-saving design. Internal thermal overload and short circuit protection. Line and load regulation at 160 mV for output stability. Operates in harsh temperature conditions from -40°C to 85°C.
Low quiescent current of 4.3mA improves efficiency. Positive polarity with fixed output voltage type. Maximum input voltage of 35V for robust operation. Bipolar technology enhances reliability. Suitable for industrial electronics and embedded systems.
Explore EnvMart categories to find more high-quality Voltage Regulators and power management ICs from trusted brands like Nisshinbo Micro Devices, designed for professional use in various electrical engineering, manufacturing, and laboratory environments.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides a fixed output voltage of 8V.
It supports a maximum output current of 1.5A.
The maximum input voltage for this unit is 35V.
It operates efficiently within an ambient temperature range of -40°C to 85°C.
The dimensions of the package are 6.54mm in length, 6.04mm in width, and 2.29mm in height.
This model features a surface mount design.
The quiescent current is 4.3mA, which helps minimize power consumption during inactive periods.
It provides both line and load regulation at 160mV, ensuring output stability.
It incorporates bipolar technology for reliable linear voltage regulation.
It is equipped with internal thermal overload protection and current limiting to ensure device safety.
The country of origin for this product is India.
It is suitable for various electronics applications, including on-card regulation and miniature electronic devices.
