Nisshinbo Micro Devices 5-Channel Linear Voltage Regulator, 1.5A, 15V, TO-252 3-Pin NJM7815DL1A-TE1

Free Delivery in India | Lowest Global Shipping Charges

Nisshinbo Micro Devices 5-Channel Linear Voltage Regulator, 1.5A, 15V, TO-252 3-Pin NJM7815DL1A-TE1

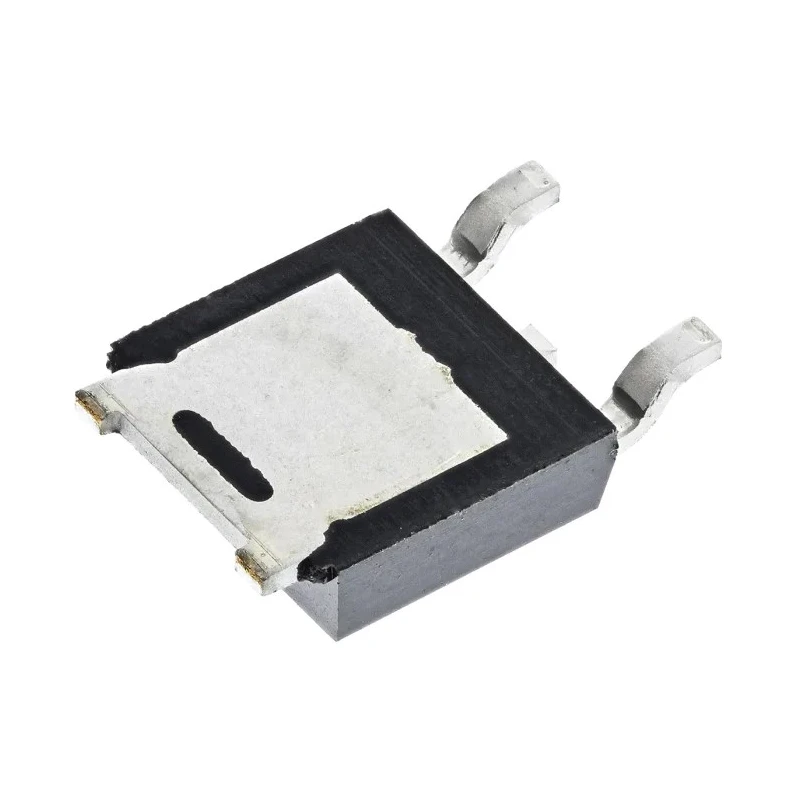

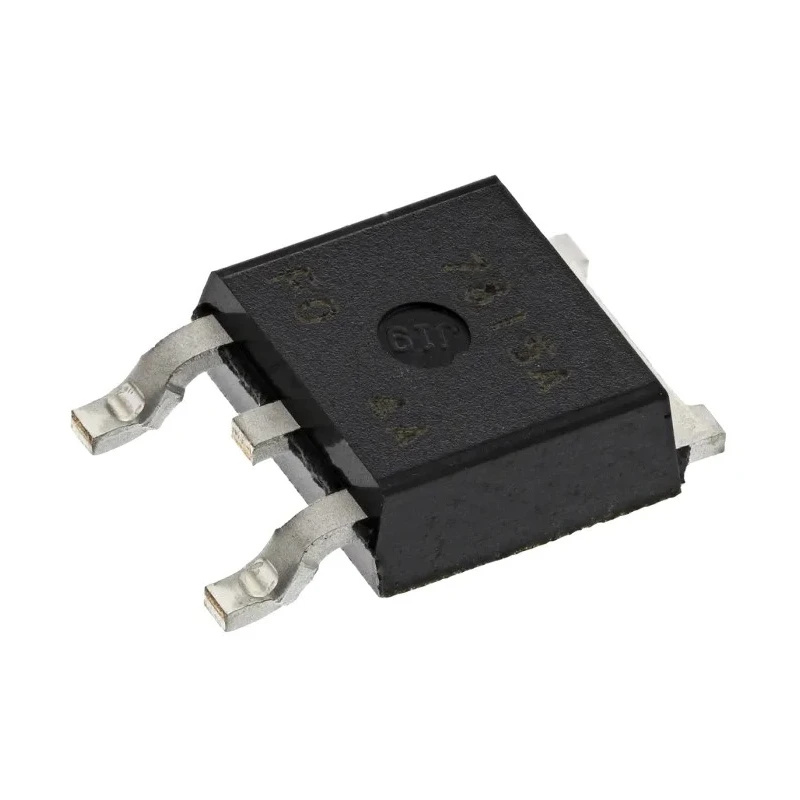

Name: Nisshinbo Micro Devices 5-Channel Linear Voltage Regulator, 1.5A, 15V, TO-252 3-Pin NJM7815DL1A-TE1
Brand: Nisshinbo Micro Devices
SKU: 219103
Price: 0.61 USD
Availability: InStock



Category Voltage Regulator Brand Nisshinbo Micro Devices Condition New

Specifications

Country of Origin	India
Brand	Nisshinbo Micro Devices
Height	2.29mm
Length	6.54mm
Model	NJM7815DL1A-TE1
Width	6.04mm
Mount Type	Surface
Output type	Fixed
Series	NJM78xx
Power Rating	1W
Output Current	1.5A
Maximum Operating Temperature	85°C
Package Type	TO-252
Load Regulation	300 mV
Minimum Operating Temperature	-40°C
Polarity	Positive
Regulator Type	Linear
Number of outputs	5
Maximum Input Voltage	35V
Output Voltage	15V
Quiescent Current	4.4mA
Line Regulation	300 mV
Standards/Approvals	RoHS
Pin Count	3

Key Features

Features a 3-pin TO-252 surface mount package suitable for compact circuit designs.
Operates with a maximum input voltage of 35V for versatile usage in electronic circuits.
Includes internal thermal overload protection and current limiting to enhance durability.
Offers line and load regulation of 300 mV each, ensuring consistent output under varying conditions.
Supports operation in temperatures from -40°C to 85°C for reliability in diverse environments.
Low quiescent current of 4.4mA conserves energy during operation.
Positive polarity and fixed output voltage design for standard linear regulation needs.
Complies with RoHS standards for environmental safety.

Product Description

The Nisshinbo Micro Devices NJM7815DL1A-TE1 is a 5-channel positive linear voltage regulator designed to provide a fixed output voltage of 15V with a maximum output current of 1.5A. Housed in a compact TO-252 3-pin surface mount package, this regulator is engineered for reliable and efficient power management across a wide range of electronic applications.

This device integrates internal thermal overload protection and current limiting, ensuring safe operation even under adverse conditions. Its excellent ripple rejection and stable regulation make it suitable for industrial circuits, laboratory equipment, manufacturing electronics, and embedded systems requiring consistent voltage supply.

Operating within a temperature range of -40°C to 85°C and supporting a maximum input voltage of 35V, the NJM7815DL1A-TE1 delivers dependable performance in challenging environments. The low quiescent current of 4.4mA contributes to energy efficiency, making it advantageous for battery-powered and portable devices.

3-pin TO-252 surface mount package for space-efficient PCB designs. Fixed 15V output with a high 1.5A current capability for various load requirements. Internal protections including thermal and short circuit safeguards enhance device longevity.

Wide operating temperature range ensures suitability for industrial and commercial use. Compliant with RoHS directives, meeting environmental standards. Low quiescent current reduces power consumption during idle states.

Reliable line and load regulation of 300 mV to maintain voltage stability. Positive polarity linear regulator for straightforward integration into power supply circuits. Supports on-card regulation to avoid issues common with single-point regulation techniques.

This voltage regulator is an essential component for anyone needing a stable and reliable 15V supply in electronic circuit design and manufacturing. Its construction ensures high performance and durability in devices ranging from consumer electronics to industrial automation and power management systems.

Explore more Voltage Regulator options and technical resources in the Electronics & Electricals category on EnvMart for enhanced application development.
