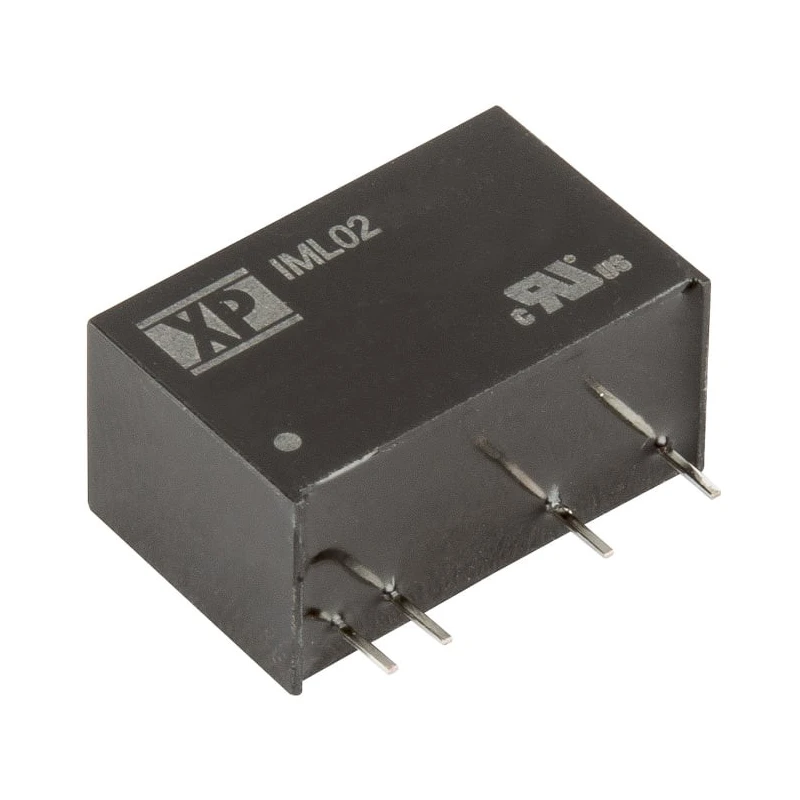

XP Power DC/DC Converter Series 3V DC Output 600mA 26.4V DC Max Input 21.6V Min Input 2W Power Through Hole SIP7 IML02
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters XP Power IML02 DC/DC Converter, 3V dc/ 600 mA, 26 |
| Brand | XP Power |
| Efficiency | 75% |
| Length | 19.5mm |
| Model | IML02 |
| Depth | 12.5mm |
| Width | 9.8mm |
| Mount Type | Through Hole |
| Series | IML02 |
| Maximum Operating Temperature | 85°C |
| Package Type | SIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 2500000h |
| Number of outputs | 1 |
| Maximum Output Power | 2W |
| Maximum Input Voltage | 26.4V dc |
| Minimum Input Voltage | 21.6V |
| Number of Pins | 7 |
| Output Voltage 1 | 3V dc |
| Output Current 1 | 600mA |
| Output Voltage Adjustment Range | ±5 V |
| Isolation Voltage | 4kV ac |
Key Features
- This DC/DC converter offers a maximum output power of 2 watts for reliable performance.
- Designed with an isolation voltage of 4000V AC and industry standard protections for safety and robustness.
- Operates effectively within a temperature range of -40°C to 85°C, suitable for harsh environments.
- The component has a mean time between failures (MTBF) of 2,500,000 hours ensuring high reliability.
- Compact size with dimensions 19.5mm length, 12.5mm depth, and 9.8mm width allowing easy PCB integration.
- Package type is SIP with 7 pins and standard through-hole mount type.
- Achieves 75% efficiency ensuring good energy utilization.
- Suitable for medical and industrial applications requiring isolated power conversion.
Product Description
XP Power IML02 DC/DC Converter is a robust and reliable isolated power module delivering a stable 3V DC output at 600mA current, ideal for a variety of electronic and industrial applications. This converter supports an input voltage range from 21.6V to 26.4V DC, making it compatible with varying power supply conditions.
Housed in a SIP7 package with through-hole mounting, it measures 19.5mm in length, 12.5mm in depth, and 9.8mm in width, providing compact integration on PCBs. It features a high isolation voltage rating of 4000V AC and protection standards including one MOPP at 250V AC, ensuring safety and electrical isolation critical in medical and industrial environments.
The device operates reliably across a wide temperature range from -40°C to +85°C, supporting challenging environmental conditions and maintains a high MTBF of 2,500,000 hours, highlighting its long-term durability and reliability.
This DC/DC converter delivers maximum power output of 2 watts with approximately 75% efficiency, enhancing operational performance while minimizing energy losses. The device's ±5V output voltage adjustment range provides additional flexibility for precise applications.
XP Power's IML02 series is well suited for applications in medical, industrial, laboratory, and automation environments requiring reliable isolated DC power conversion. This DC/DC converter offers a maximum output power of 2 watts for reliable performance.
Designed with an isolation voltage of 4000V AC and industry standard protections for safety and robustness. Operates effectively within a temperature range of -40°C to 85°C, suitable for harsh environments. The component has a mean time between failures (MTBF) of 2,500,000 hours ensuring high reliability.
Compact size with dimensions 19.5mm length, 12.5mm depth, and 9.8mm width allowing easy PCB integration. Package type is SIP with 7 pins and standard through-hole mount type. Achieves 75% efficiency ensuring good energy utilization.
Suitable for medical and industrial applications requiring isolated power conversion.
Explore the full range of DC/DC Converters and power supplies at EnvMart to find high-quality and reliable power management components for your industrial and electronics projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum output power of this model is 2 watts.
It supports an input voltage range from 21.6V to 26.4V DC.
The efficiency of this unit is approximately 75%.
This model measures 19.5mm in length, 12.5mm in depth, and 9.8mm in width.
It has an isolation voltage rating of 4000V AC.
It operates effectively within a temperature range of -40°C to 85°C.
This converter has one output.
The MTBF for this unit is 2,500,000 hours.
It features a through-hole mounting type in a SIP package.
Yes, it has an output voltage adjustment range of ±5V.
This model is suitable for medical and industrial applications requiring isolated power conversion.
The package type is SIP with 7 pins.
