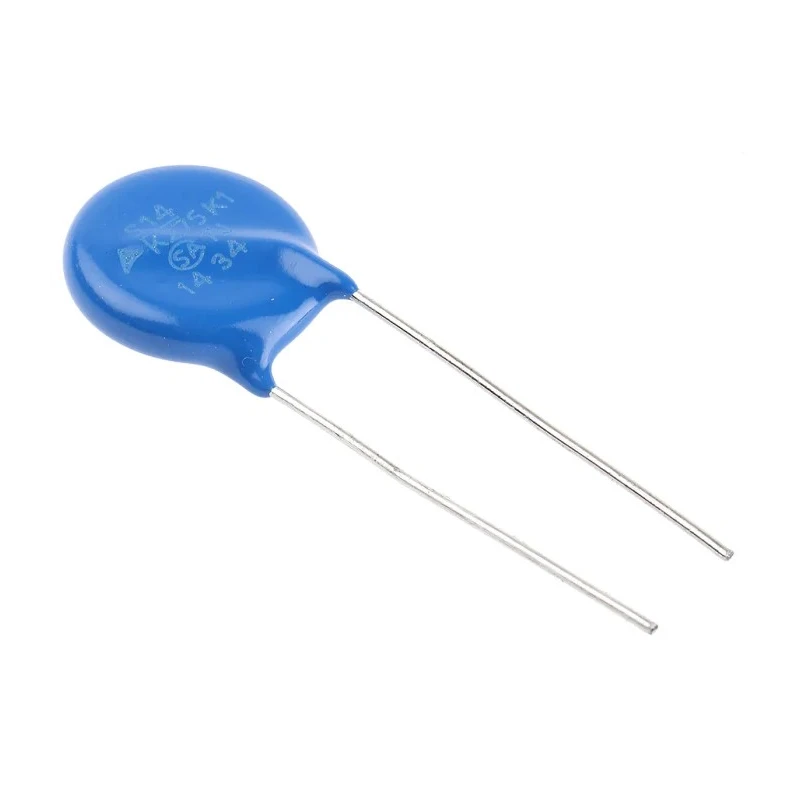

TDK AdvancedD-MP Metal Oxide Varistor 290 pF 50 A Clamping Voltage 1815 V Model B72214P2271K101

TDK B72214P2271K101 Metal Oxide Varistor is part of the AdvancedD-MP series specially designed for overvoltage protection in electronic circuits. This varistor offers a capacitance of 290 pF and a clamping current rating of 50 A, making it a reliable choice for suppressing high-energy transient voltage surges in both AC and DC circuits.

Its compact size, with a diameter of 16 mm, length of 45 mm, and thickness of 5.9 mm, allows for versatile installation in tight configurations. The component is built with metal material and features tinned copper lead terminations ensuring excellent electrical conductivity and mechanical strength.

Operating temperature ranges from -40°C to 85°C, suitable for diverse industrial environments including electronics manufacturing, power supply systems, and surge protection in consumer electronics and commercial equipment.

This varistor has a clamping voltage of 1815 V and a varistor voltage of 430 V, providing effective suppression for voltage spikes up to these thresholds. It is capable of handling surge currents up to 6 kA with an energy rating of 260 joules, making it highly resilient during sudden voltage spikes.

The lead pitch of 7.5 mm facilitates easy lead mounting, and its lead attachment type ensures secure placement on the circuit board. It meets global safety and quality standards including UL (UL1449, file number E321126), IEC 60950-1 Annex Q, IEC 60065 § 14.12, VDE, and CSA certifications, verifying its compliance for use in Type 3 Surge Protective Devices and other critical applications.

Designed for overvoltage protection in AC and DC electronic circuits. Compact size ideal for tight space installations with 16 mm diameter and 45 mm length. High surge current resistance up to 6 kA with energy rating of 260 J.

Wide operating temperature range -40°C to 85°C suitable for industrial environments. Metal construction with tinned copper lead for durability and conductivity. Meets UL, IEC, VDE, and CSA safety standards for surge protectors.

Lead pitch 7.5 mm for easy and secure mounting on PCBs. Reliable clamping voltage (1815 V) and varistor voltage (430 V) for precise surge suppression.

This Varistor is widely used in industrial electronics, manufacturing equipment, power supply protection, and surge protection devices to ensure the longevity and reliability of sensitive components. For specialized electronic designs requiring robust transient voltage suppression, the TDK B72214P2271K101 is an excellent choice available through EnvMart’s comprehensive industrial components catalog.
