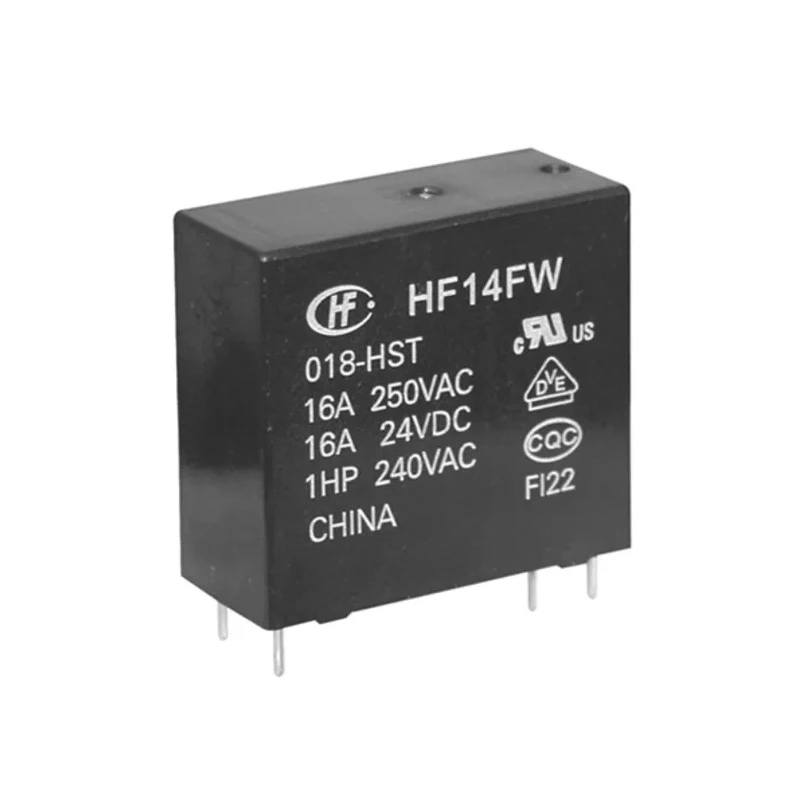

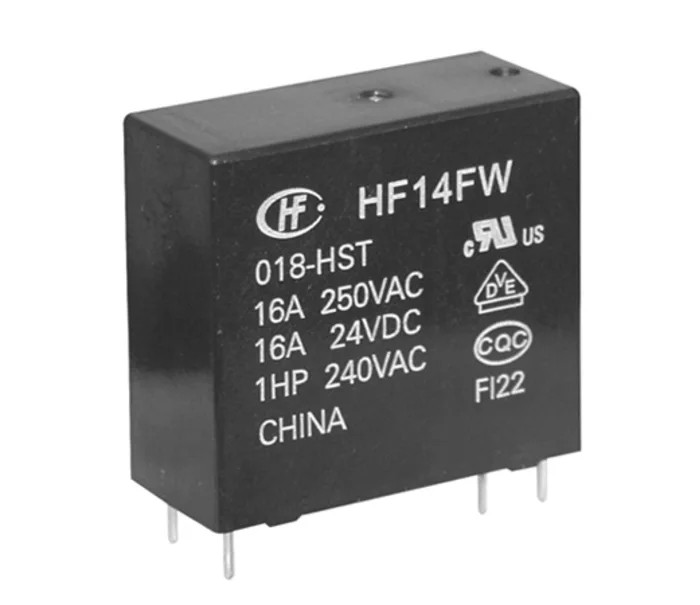

Hongfa Europe GMBH PCB Power Relay 24V dc Coil 16A Switching Current SPST HF14FW/024-HSPTF
Specifications
| Country of Origin | China |
|---|---|
| Brand | Hongfa Europe GMBH |
| Height | 26.5mm |
| Length | 29mm |
| Model | HF14FW/024-HSPTF |
| Width | 13mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | HF14FW |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -40°C |
| Switching Current | 16A |
| Terminal type | PCB Pin |
| Contact Resistance | 50mΩ |
| Standards/Approvals | RoHS |
| Coil Resistance | 1.1kΩ |
| Coil Voltage | 24V dc |
| Switching DC Voltage | 30V dc |
| Switching AC Voltage | 277V |
| Coil Power | 720mW |
Key Features
- The relay supports a coil voltage of 24V dc for effective actuation.
- It provides a switching current capability of 16A ensuring high power management.
- SPST (Single Pole Single Throw) contact configuration is ideal for basic switching needs.
- Mount type is PCB, suitable for printed circuit board installations.
- Durable silver alloy contacts provide low contact resistance for long life.
- Operating temperature range is from -40°C to 85°C for varied environmental conditions.
- Coil power consumption is 720mW, offering efficient energy use.
- Designed to switch AC voltages up to 277V and DC voltages up to 30V.
Product Description
Hongfa Europe GMBH HF14FW/024-HSPTF is a high-quality PCB power relay featuring a 24V dc coil and a switching current of 16A with SPST contact configuration. This relay is designed for intermediate power applications requiring reliable switching in industrial, automation, electrical control, and HVAC systems.
It offers high power switching capability up to 480W DC and supports switching AC voltages up to 277V, while effectively handling DC voltages up to 30V. The relay utilizes silver alloy contacts, which ensures low contact resistance of 50mΩ and durability even under electrical stress.
The coil resistance is 1.1kΩ and power consumption is 720mW, providing energy efficient operation. Its PCB pin terminal type and compact dimensions make it suitable for direct mounting on printed circuit boards, facilitating space-saving designs.
Engineered to operate reliably within a wide temperature range from -40°C to 85°C, this relay is plastic sealed and compliant with RoHS environmental standards. The isolation voltage between coil and contact is 4KVAC, ensuring safety and performance in demanding industrial environments.
This relay is widely used as a control device in automotive electronics, industrial automation, and other electrical control systems. Its non-latching electromagnetic design provides stable and efficient switching performance.
The relay supports a coil voltage of 24V dc for effective actuation. It provides a switching current capability of 16A ensuring high power management. SPST contact configuration suits simple switch control applications. Mount type is PCB ensuring compatibility with circuit boards.
Silver alloy contacts offer improved conductivity and durability. Wide operating temperature tolerance enhances reliability in various environments. Coil power consumption is low at 720mW for energy efficiency. High switching AC voltage and DC voltage ratings compatible with diverse systems.
RoHS compliant product reflecting environmental responsibility. Compact size fits into tight PCB layouts. Explore more from the Power Relay category on EnvMart for high-performance industrial components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a switching current capability of 16A, making it suitable for high power management applications.
The relay operates with a coil voltage of 24V dc for effective actuation.
The relay measures 29mm in length, 13mm in width, and 26.5mm in height.
It features an SPST (Single Pole Single Throw) contact configuration, suitable for basic switching needs.
This relay can switch AC voltages up to 277V and DC voltages up to 30V.
The coil power consumption is 720mW, providing efficient energy use.
The contacts are made of silver alloy, which ensures low contact resistance and durability.
It operates reliably within a temperature range from -40°C to 85°C.
This unit is designed for PCB mounting, making it suitable for printed circuit board installations.
The contact resistance is 50mΩ, which contributes to its efficient performance.
Yes, it is RoHS compliant, reflecting its adherence to environmental standards.
The coil resistance is 1.1kΩ, which is important for its operational characteristics.
