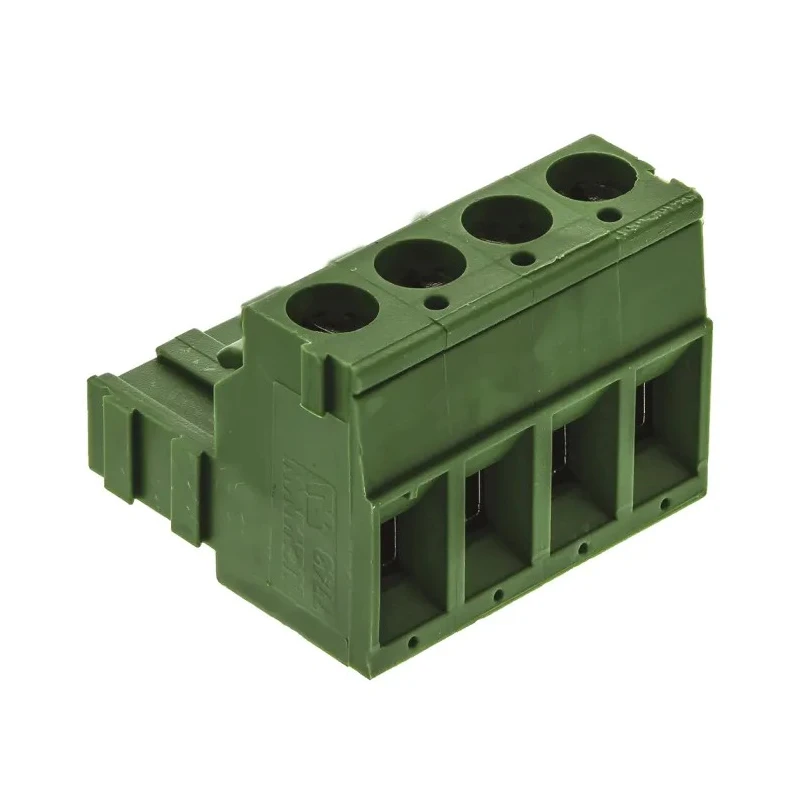

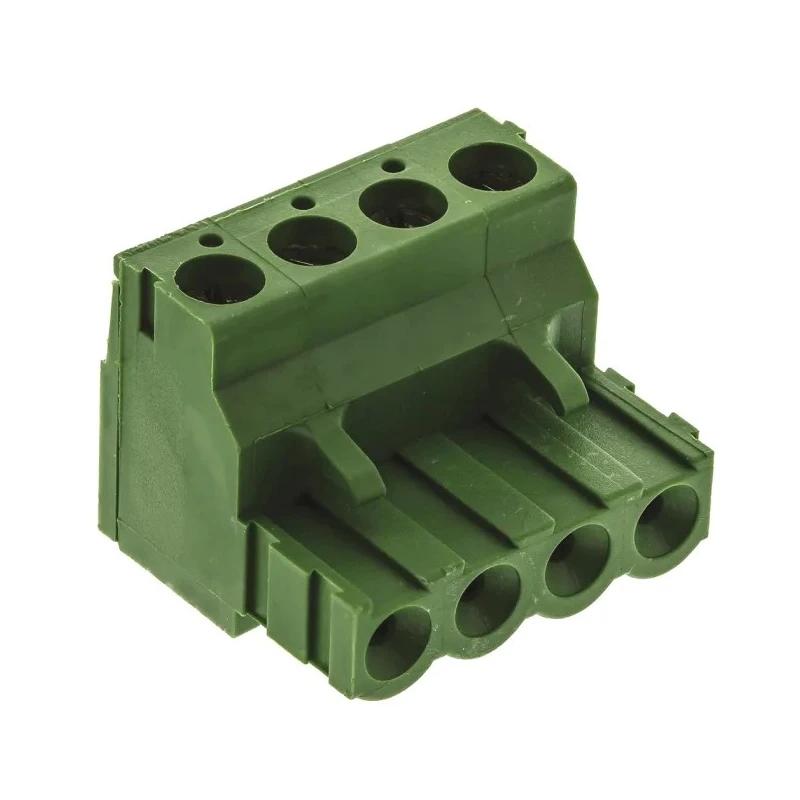

TE Connectivity Buchanan Series 4-Contact 5.08 mm Pitch 1 Row Pluggable Terminal Block 282807-4
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 300V ac |
| Brand | TE Connectivity |
| Colour | Green |
| Orientation | Right Angle |
| Current | 15A |
| Length | 20.32mm |
| Model | 282807-4 |
| Depth | 15.5mm |
| Width | 18.4mm |
| Housing Material | Polyamide |
| Series | Buchanan |
| Number of Rows | 1 |
| Pitch | 5.08mm |
| Standards/Approvals | EU RoHS, EU REACH, CHINA RoHS, EU ELV |
| Number of Contacts | 4 |
| Connector Gender | Male |
| Minimum Wire Size AWG | 12AWG |
| Maximum Wire Size AWG | 30AWG |
Key Features
- The terminal block supports a current rating of 15 A for robust electrical performance.
- Constructed with green polyamide housing material to ensure durability and insulation.
- Features a single row configuration with right-angle male connector orientation for easy PCB stacking.
- Suitable for wire sizes ranging from 12 AWG to 30 AWG, accommodating diverse cable requirements.
- Designed with M3 screw clamp terminals and equipped with retention latches and polarization keys for secure mating.
- The compact dimensions include 20.32 mm length, 18.4 mm width, and 15.5 mm depth, optimizing PCB space.
- Complies with multiple international standards including EU RoHS, EU REACH, CHINA RoHS, and EU ELV for environmental safety.
- The terminal block is rated for 300V AC voltage, suitable for various industrial and electronics applications.
Product Description
TE Connectivity 282807-4 Pluggable Terminal Block is engineered for industrial and electronic assembly use, offering a 4-contact interface with a 5.08 mm pitch and single row layout. Its polyamide housing enhances mechanical strength and electrical insulation, while the green coloration aids quick visual identification.
This terminal block supports wire sizes from 12 AWG to 30 AWG, allowing flexible wiring options for manufacturers. The right-angle male connector design facilitates PCB mounting with vertical stacking compatibility, including retention latches and polarization key slots to prevent misconnection. The M3 screw clamp terminal secures wires firmly, ensuring electrical reliability in demanding conditions.
Its compact dimensions of 20.32 mm length, 18.4 mm width, and 15.5 mm depth optimize usage in constrained PCB layouts. Rated for 15 A current and 300V AC voltage, this terminal block suits a broad spectrum of industrial, laboratory, manufacturing, and electrical control applications.
The terminal block supports a current rating of 15 A for robust electrical performance. Constructed with green polyamide housing material to ensure durability and insulation. Features a single row configuration with right-angle male connector orientation for easy PCB stacking.
Suitable for wire sizes ranging from 12 AWG to 30 AWG, accommodating diverse cable requirements. Designed with M3 screw clamp terminals and equipped with retention latches and polarization keys for secure mating. The compact dimensions include 20.32 mm length, 18.4 mm width, and 15.5 mm depth, optimizing PCB space.
Complies with multiple international standards including EU RoHS, EU REACH, CHINA RoHS, and EU ELV for environmental safety. The terminal block is rated for 300V AC voltage, suitable for various industrial and electronics applications.
TE Connectivity’s Buchanan series is widely used across electronics and electrical industries due to its durability and ease of use, making it an excellent choice for system integrators and manufacturers.
Discover a broad range of Pluggable Terminal Blocks and connectors at EnvMart for your industrial and electronic component needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It supports a current rating of 15 A, ensuring robust electrical performance.
This terminal block is rated for 300V AC voltage, suitable for various applications.
It is suitable for wire sizes ranging from 12 AWG to 30 AWG, providing flexibility for different wiring needs.
The compact dimensions are 20.32 mm in length, 18.4 mm in width, and 15.5 mm in depth, optimizing PCB space.
The housing is constructed from green polyamide, which enhances durability and electrical insulation.
It features a right-angle male connector orientation, facilitating easy PCB stacking.
This model has 4 contacts, providing a reliable connection interface.
It complies with multiple international standards including EU RoHS, EU REACH, CHINA RoHS, and EU ELV for environmental safety.
It is designed with M3 screw clamp terminals, ensuring secure wire connections.
This terminal block belongs to the Buchanan series by TE Connectivity, known for its ease of use in industrial applications.
Yes, it is equipped with retention latches and polarization keys to ensure secure mating and prevent misconnection.
