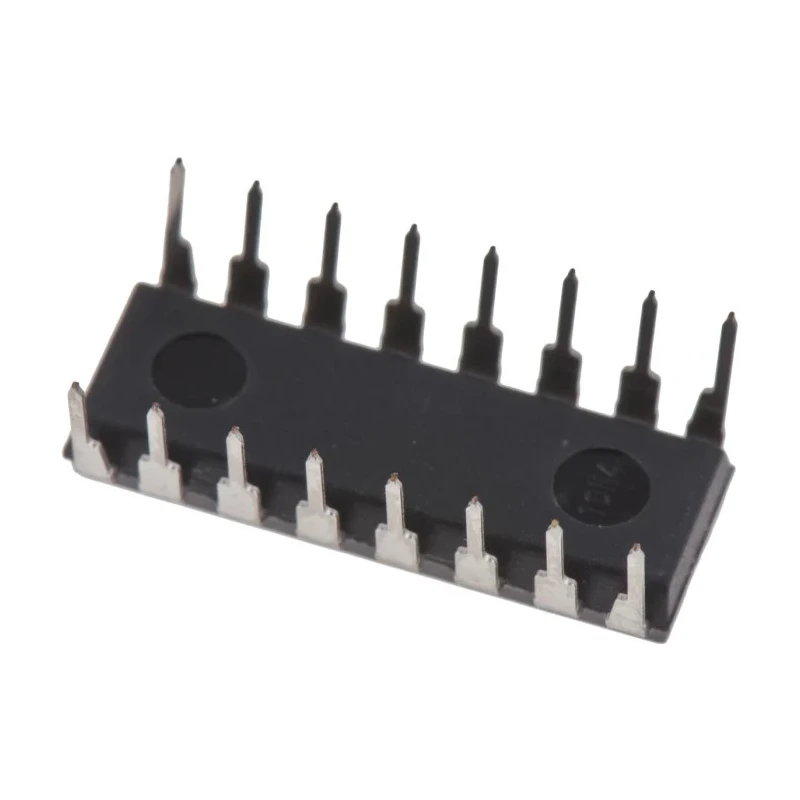

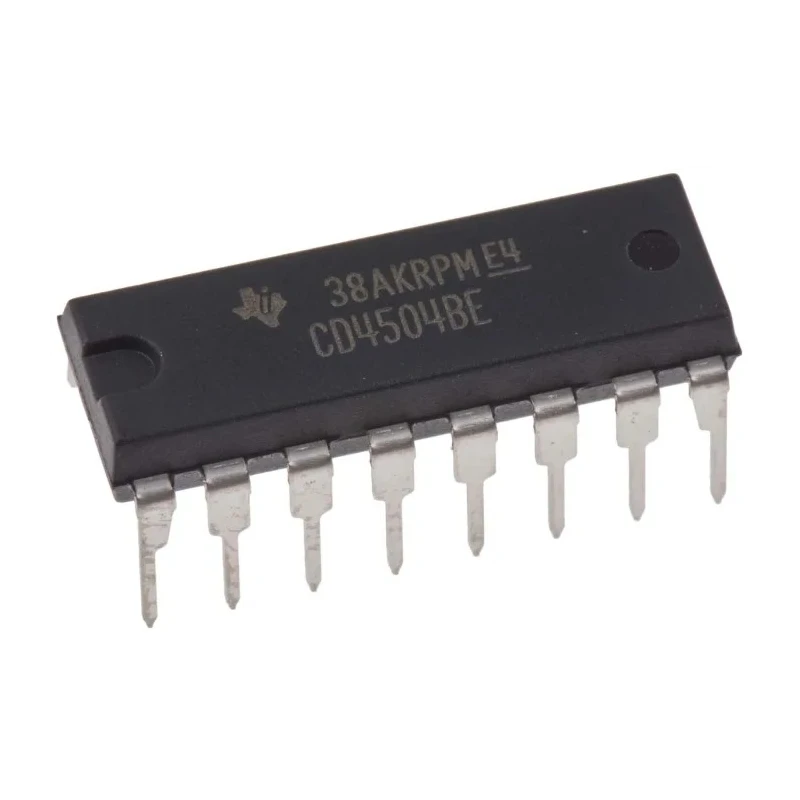

Texas Instruments Voltage Level Shifter 4 TTL to CMOS, CMOS, 16-Pin PDIP CD4504BE

Texas Instruments CD4504BE is a high-quality voltage level shifter IC designed for translating logic levels from TTL to CMOS standards. This device features four individual voltage level shifting elements integrated into a 16-pin PDIP package suitable for through-hole mounting on printed circuit boards.

Operating within a wide voltage range from 3 to 18 volts, the CD4504BE supports uni-directional translation, making it ideal for interfacing TTL logic outputs to CMOS inputs in various electronic applications. The chip delivers excellent performance with a maximum propagation delay of 280 nanoseconds at the specified load capacitance, ensuring fast and accurate signal shifting.

Electrical characteristics include a maximum low level output current of 4.2 mA and a maximum high level output current of -4.2 mA, supporting stable logic voltage levels. The device operates reliably over a broad temperature range from -55°C to +125°C, suitable for harsh industrial environments and laboratory equipment.

The 4000 series CMOS logic family device features a total pin count of 16, arranged in a standard PDIP configuration for ease of use in through-hole assembly processes. Typical uses include electronic component manufacturing, industrial instrumentation, power and connector systems, and semiconductor applications requiring precise logic signal level translation.

This CD4504BE IC is a new product from Texas Instruments and does not have automotive-grade certification, targeting standard industrial and electronic circuitry implementations. The device provides robust functionality for applications demanding reliable TTL to CMOS voltage level shifting.

Uni-directional TTL to CMOS voltage level shifting. Wide operating voltage range: 3 to 18 V. Maximum propagation delay: 280 ns at specified load capacitance. Standard 16-pin PDIP package for through-hole mounting. Wide temperature range: -55°C to +125°C operation.

4 voltage level shifting elements integrated in a single chip. Reliable operation in industrial and electronic component applications. Belongs to the trusted 4000 series CMOS logic family from Texas Instruments. New condition product without automotive standards certification.
