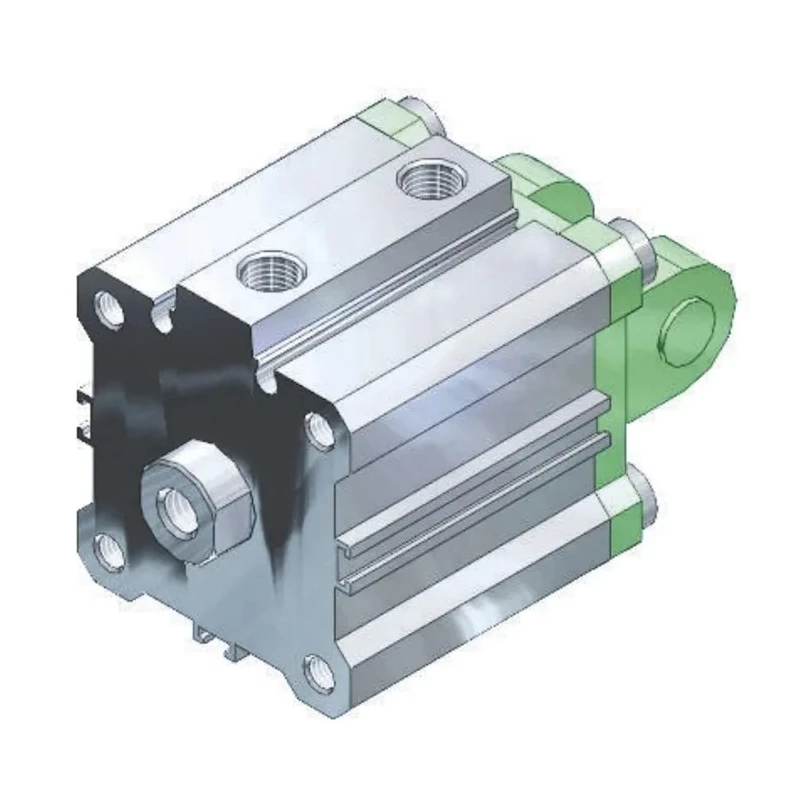

SMC Pneumatic Compact Cylinder Double Acting, 12 mm Bore, 30 mm Stroke, Aluminium Alloy Body, Model CDQSB12-30D
Specifications
| Country of Origin | China |
|---|---|
| Brand | SMC |
| Body Material | Aluminium Alloy |
| Maximum Operating Pressure | 1.5 Mpa |
| Height | 25mm |
| Length | 50.5mm |
| Model | CDQSB12-30D |
| Gross Weight | 63g |
| Width | 25mm |
| Mount Type | Through Hole |
| Series | CDQS |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | -10°C |
| Stroke Length | 30mm |
| Bore Diameter | 12mm |
| Rod Type | Single |
| Action Type | Double Acting |
| Piston Rod Gender | Female |
| Piston Rod Thread Standard | Metric |
| Piston Rod Thread Size | 6 mm |
Key Features
- The cylinder features an aluminium alloy body ensuring durable and lightweight performance.
- Double acting design provides effective bi-directional piston movement.
- Maximum operating pressure capacity of 1.5 MPa supports industrial pneumatic applications.
- Compact dimensions with a length of 50.5 mm, height and width of 25 mm each for space-saving installations.
- Designed for a piston speed up to 500 mm/s with a maximum operating temperature of 70°C.
- Equipped with a single type rod with female piston rod thread of 6 mm, metric standard.
- Suitable for operations in temperatures from -10°C to 70°C using nitrile seals for reliability.
- Lightweight with a gross weight of 63 grams, easy to integrate into automated systems.
Product Description
SMC's CDQSB12-30D Pneumatic Compact Cylinder is a high-quality double acting cylinder designed with a 12 mm bore and a 30 mm stroke length, ideal for precise control in automated pneumatic systems. Featuring an aluminium alloy body, it is both robust and lightweight, enhancing durability while reducing installation load.
This compact cylinder supports a maximum operating pressure of 1.5 MPa and piston speeds up to 500 mm/s, catering to various industrial and manufacturing applications including mechanical assembly, packaging, and material handling. It operates reliably within a temperature range of -10°C to 70°C, utilizing nitrile seals that offer excellent wear resistance and sealing under diverse conditions.
The cylinder includes a through-hole mounting type and a single rod with a female piston rod thread sized 6 mm, compliant with metric standards, ensuring easy integration and versatile mounting options. Its compact dimensions - length 50.5 mm, width and height 25 mm - allow for installation in tight spaces, delivering space and weight savings without compromising performance.
The aluminium alloy construction ensures corrosion resistance and longevity. The double acting function facilitates effective forward and backward movement for enhanced motion control. Designed to support continuous operation in industrial pneumatic systems.
Light gross weight of 63 grams offers ease of handling and installation. Manufactured in China, the product is intended for new condition use in industrial environments.
This pneumatic compact cylinder is well-suited for use in industrial automation, manufacturing assembly lines, packaging machinery, HVAC systems, and other pneumatic-driven equipment. Its specifications and compact design make it a reliable component for fluid power and pneumatic tool applications.
Explore the wide range of hydraulic and pneumatic tools and cylinders available at EnvMart to complement this product for comprehensive system solutions.
Explore more products in our Pneumatic Cylinder category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of this model is 1.5 MPa, making it suitable for various industrial pneumatic applications.
This pneumatic cylinder has a length of 50.5 mm, a height of 25 mm, and a width of 25 mm, allowing for compact installations.
The stroke length of the SMC CDQSB12-30D is 30 mm, providing effective movement in pneumatic applications.
The bore diameter of this model is 12 mm, which is suitable for various pneumatic operations.
It operates reliably within a temperature range of -10°C to 70°C, utilizing nitrile seals for enhanced performance.
This model features a single rod with a female piston rod thread of 6 mm, compliant with metric standards.
The piston speed can reach up to 500 mm/s, allowing for efficient operation in automated systems.
The gross weight of this pneumatic cylinder is 63 grams, facilitating easy handling and installation.
This model utilizes a through-hole mounting type, which allows for versatile installation options.
The body of this pneumatic cylinder is made from aluminium alloy, ensuring a lightweight and corrosion-resistant design.
This pneumatic compact cylinder is well-suited for use in industrial automation, manufacturing assembly lines, and packaging machinery.
This model is part of the CDQS series, which includes various pneumatic cylinders designed for industrial applications.
