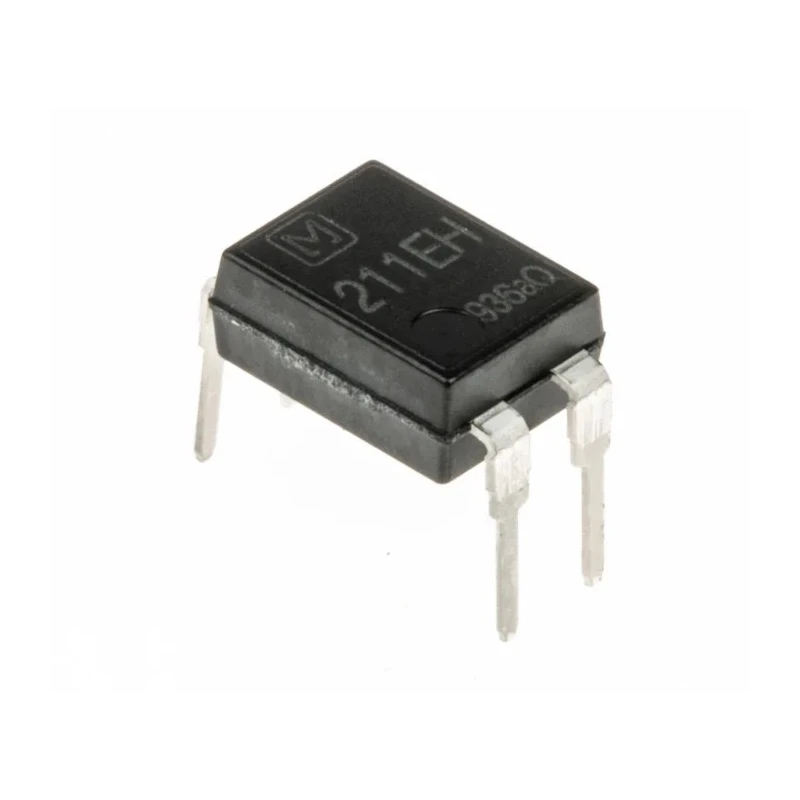

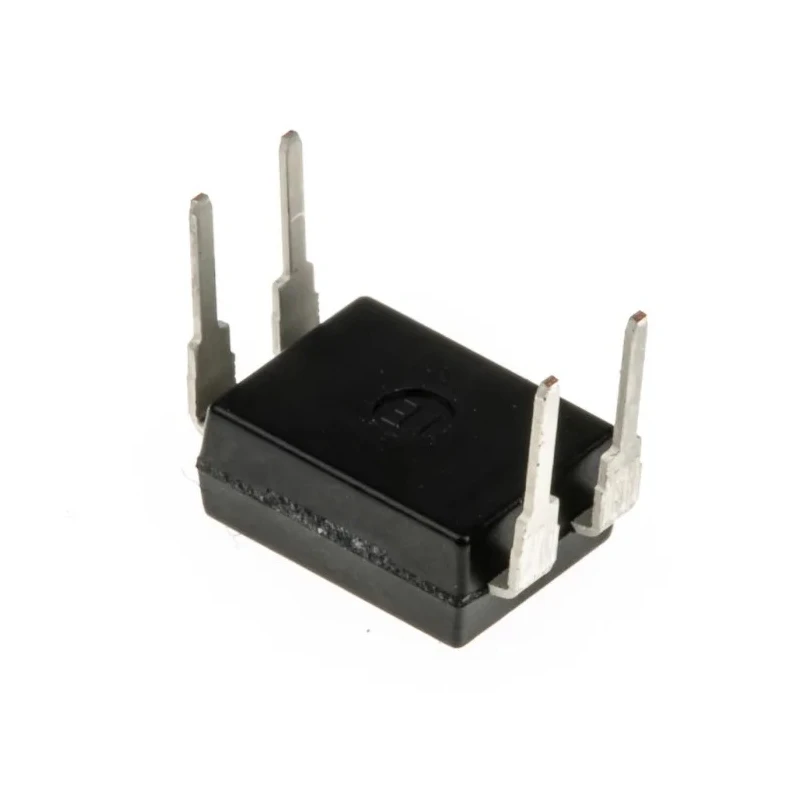

Panasonic PhotoMOS AQY Series Solid State Relay PCB Mount 1 A Load 30 V Load 1.5 V Control AQY211EH
Specifications
| Country of Origin | Thailand |
|---|---|
| Brand | Panasonic |
| Height | 3.2mm |
| Length | 4.8mm |
| Model | AQY211EH |
| Width | 4.4mm |
| Mount Type | PCB |
| Output type | MOSFET |
| Series | PhotoMOS AQY |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Package Type | SOP-4 |
| Minimum Operating Temperature | -40°C |
| Terminal type | Through Hole |
| Maximum Load Current | 1A |
| Standards/Approvals | cUL, UL, RoHS |
| Maximum Load Voltage | 30V |
| Minimum Load Voltage | 0V |
| Minimum Control Voltage | 1.14V |
| Maximum Control Voltage | 1.5V |
| Off State Leakage Current | 1μA |
| On State Resistance | 23.5Ω |
Key Features
- Compact SOP-4 package suitable for printed circuit boards.
- High sensitivity with low power consumption operation.
- Wide operating temperature range from -40°C to 85°C.
- Extremely low off-state leakage current of maximum 1 microampere.
- Low on-state resistance of 23.5 ohms ensuring efficient switching.
- Isolation voltage between coil and contacts rated at 5 kV.
- Through hole terminal type with SPST contact configuration.
- Environmentally friendly materials compliant with RoHS standards.
Product Description
Panasonic AQY211EH PhotoMOS AQY Series Solid State Relay features a 1 A maximum load current capacity and operates at a maximum load voltage of 30 V. This PCB mount relay is designed for efficient and precise low-level analog signal control with minimal distortion, making it ideal for use in telecommunications equipment, sensing devices, security systems, and other automation applications.
The compact SOP-4 package (3.2 mm height, 4.8 mm length, and 4.4 mm width) allows excellent board space saving and easy assembly. Designed to operate reliably over a temperature range from -40°C to 85°C, the relay offers high sensitivity and extremely low off-state leakage current of only 1 μA, combined with a low on-state resistance of 23.5 Ω for efficient switching and low power loss.
The relay is a single-pole single-throw (SPST) type with through-hole terminals. It uses MOSFET output technology and complies with recognized standards including cUL, UL, and RoHS for environmental compliance. The isolation voltage between coil and contacts is rated at 5 kV, providing robust electrical separation and safety.
This product is manufactured in Thailand and represents a reliable choice for industrial, laboratory, and commercial electronic control systems requiring precise solid state switching with minimal signal interference. The environmentally friendly construction ensures safe operation and long service life even under vibration and abrasion conditions.
Compact SOP-4 package suitable for PCB mounting. High sensitivity and low power consumption. Wide temperature operating range from -40°C to 85°C. Very low off-state leakage current of 1 μA maximum. Low on-state resistance of 23.5 Ω for energy-efficient operation.
Isolation voltage rating of 5 kV for coil-contact safety. Single-pole single-throw (SPST) contact configuration. MOSFET output device for reliable switching. Complies with cUL, UL, and RoHS standards. Well suited for telecommunications, sensing, and security equipment applications.
Explore the wide range of Solid State Relays at EnvMart for advanced control and signal conditioning solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum load current for this model is 1 A.
It supports a maximum load voltage of 30 V.
This relay operates reliably over a temperature range from -40°C to 85°C.
It utilizes MOSFET output technology.
The on-state resistance is 23.5 ohms, ensuring efficient switching.
The off-state leakage current is a maximum of 1 microampere (1 μA).
The isolation voltage between the coil and contacts is rated at 5 kV.
The dimensions are 4.8 mm in length, 4.4 mm in width, and 3.2 mm in height.
It has a single-pole single-throw (SPST) contact configuration.
This model is designed for PCB mounting with through-hole terminals.
It complies with cUL, UL, and RoHS standards for environmental safety.
This relay is manufactured in Thailand.
