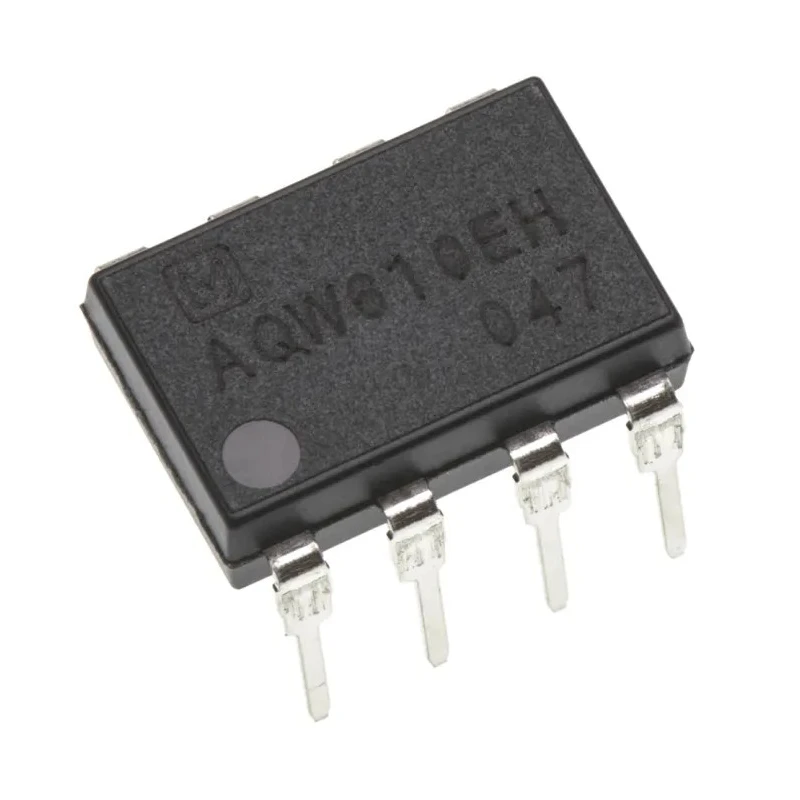

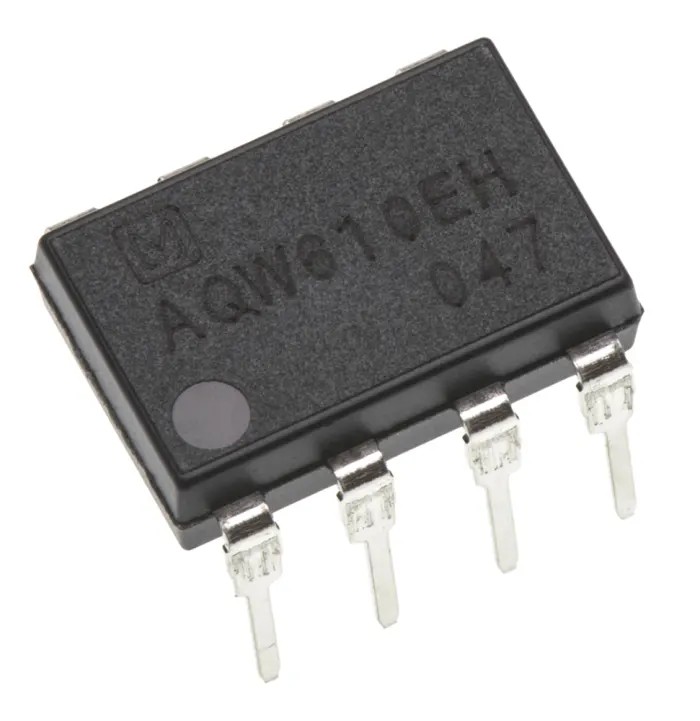

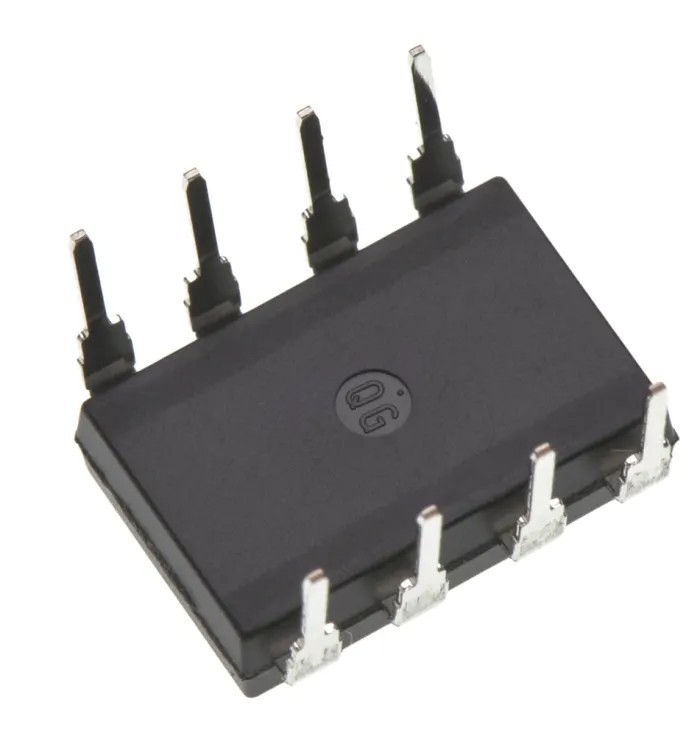

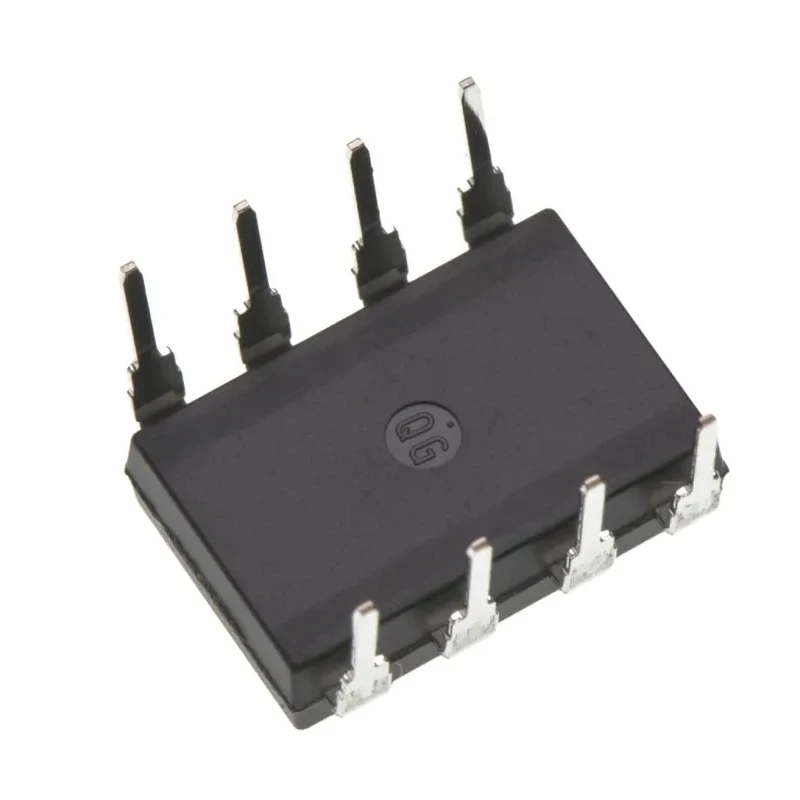

Panasonic GU-E Series Solid State Relay, Through Hole Mount, 0.12 A Load Current, 350 V Load Voltage, 5V DC Control AQW610EH

Panasonic AQW610EH Solid State Relay from the GU-E Series is engineered for precise control of low-level analog signals in industrial and automation applications. This relay supports a maximum load current of 0.12 A and a maximum load voltage of 350 V, making it suitable for switching moderate power loads efficiently. Its through hole mounting style facilitates secure installation on printed circuit boards.

The device features a wide operating temperature range from -40°C to 85°C, allowing reliable operation even in demanding environmental conditions. The SPDT contact configuration and low on-state resistance of 1 ohm ensure optimal electrical performance. The MOSFET output type offers fast switching capabilities with minimal capacitance (0.8 pF), reducing signal distortion.

With its low off-state leakage current of 10 microamperes, this solid state relay minimizes power loss when not in operation, enhancing system energy efficiency. The compact DIP package measures 9.9 mm in length, 6.4 mm in width, and 3.2 mm in height, making it ideal for applications with limited PCB space.

Designed according to international standards EN60950 and EN41003, the Panasonic AQW610EH solid state relay ensures compliance and safety in electronic control systems. Originating from Japan, this high-quality component serves industrial automation, laboratory instrumentation, manufacturing controls, and electronic device applications requiring precise relay switching.

Supports maximum load current of 0.12 A for low-power switching applications. Operates with a maximum load voltage of 350 V ensuring high voltage tolerance. Through hole mount type offers stable mechanical and electrical connections.

Low on state resistance of 1 ohm reduces power loss during operation. Wide operating temperature range from -40°C to 85°C for reliable performance under harsh conditions. Single pole double throw (SPDT) contact configuration enables versatile control options.

Compact dimensions: 9.9 mm length, 6.4 mm width, 3.2 mm height for space-efficient PCB designs. Low off-state leakage current of 10 microamperes minimizes standby power consumption. MOSFET output type provides fast switching with low capacitance of 0.8 pF.

Complies with standards EN60950 and EN41003 for safety and reliability. Product origin: Japan ensuring high manufacturing quality. Explore more quality relays and Solid State Relays for your industrial and electronics projects at EnvMart.
