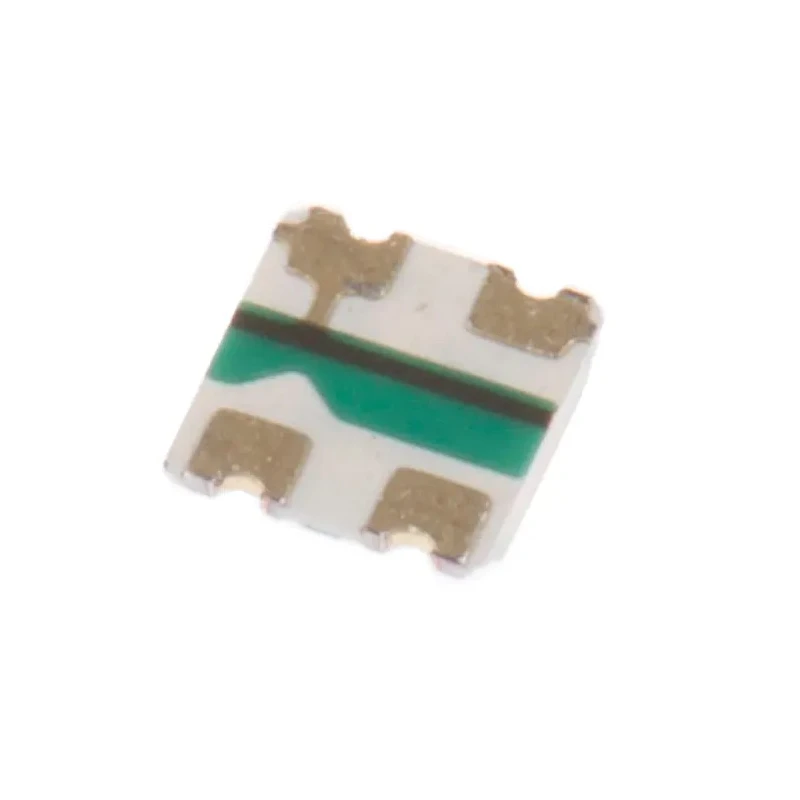

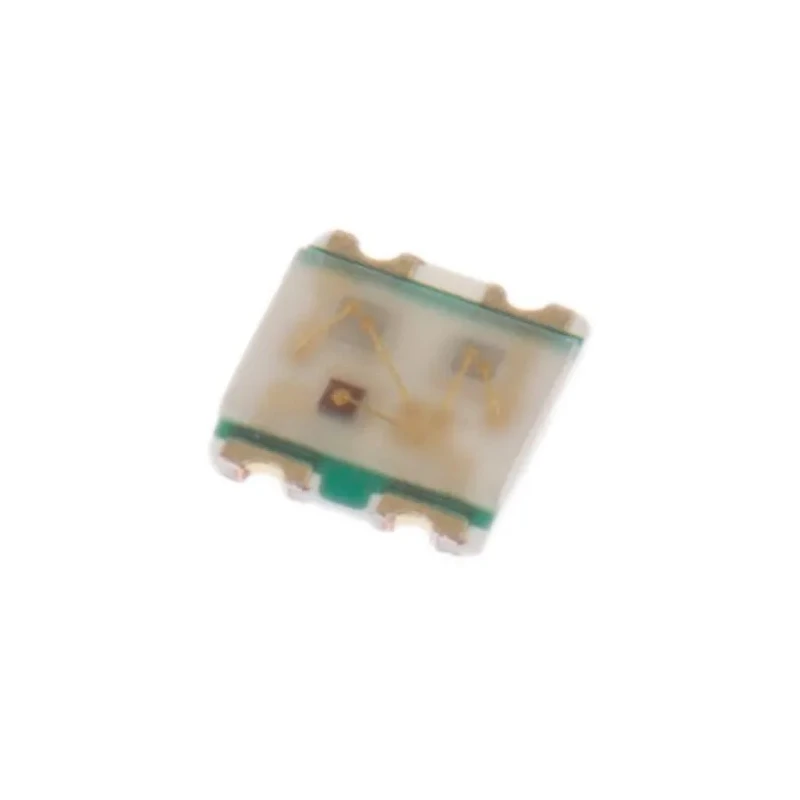

Broadcom 1.9 V RGB LED 1615 Surface Mount 3 LEDs Common Anode HSMF-C114
Specifications
| Country of Origin | India |
|---|---|
| Brand | Broadcom |
| Model | HSMF-C114 |
| Packaging | Tape & Reel |
| Mount Type | Surface |
| Number Of Leds | 3 |
| Maximum forward current | 20mA |
| Viewing angle | 145/145/100 ° |
| Package Type | 1615 |
| LED Colour | RGB |
| Dominant Wavelength | 470, 525, 626nm |
| Forward Voltage | 1.9V |
| Number of Pins | 4 |
| LED Luminosity | 70 mcd, 85 mcd |
| Maximum Power Dissipation | 52mW |
| Lens Dimensions | 1.6 x 1.5 x 0.35 mm |
| Lens Shape | Rectangular |
Key Features
- Features three RGB LEDs in a compact 1615 package for versatile color mixing.
- Designed for surface mounting with a low profile rectangular lens.
- Maximum forward current of 20mA ensures low power consumption.
- Offers a wide viewing angle of 145°/145°/100° for broad light dispersion.
- Ideal for back-lighting, status indicators, and front panel illumination.
- Compatible with reflow soldering for modern assembly techniques.
- Clear lens with rectangular shape provides diffused optics and consistent luminosity.
- Dominant wavelengths are 470nm, 525nm, and 626nm corresponding to RGB colors.
Product Description
Broadcom HSMF-C114 is a high-performance RGB LED with a forward voltage of 1.9 V, featuring three dies in a single compact 1615 surface mount package. This tri-color LED package allows for a wide spectrum of colors by mixing the primary RGB colors, providing versatile functionality for lighting solutions.
The device includes a common anode structure with diffused optics and a rectangular clear lens design measuring 1.6 x 1.5 x 0.35 mm, ensuring efficient light output with a low profile suitable for backlighting and indication purposes.
The LEDs operate at a maximum forward current of 20mA and dissipate up to 52mW, which supports energy-efficient usage in various industrial, electronic, and consumer applications. The viewing angles of 145° for red and green and 100° for blue contribute to wide light dispersion, making it ideal for status indicators and panel illumination in office automation, home appliances, and industrial equipment.
This LED is compatible with reflow soldering processes, enhancing manufacturing efficiency and product reliability. It carries no specific automotive or industry certifications but aligns with general usage standards for electronic lighting components.
Three integrated RGB LEDs for multicolor output. Compact surface mount 1615 package ensuring low profile installation. Maximum forward current of 20mA with 52mW power dissipation. Wide viewing angles suitable for illumination and indication.
Clear rectangular lens providing diffused light output. Dominant wavelengths are 470, 525, and 626 nm respectively for blue, green and red.
The Broadcom HSMF-C114 RGB LED is perfect for electronic component assemblies requiring reliable and compact multicolor light sources. Widely used in industrial electronics, user interfaces, HVAC panels, and decorative equipment, it enhances visual feedback and aesthetic appeal.
Explore more high-quality LED components and optoelectronic devices at EnvMart to support your industrial and commercial projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum forward current for this model is 20mA.
The dominant wavelengths are 470nm for blue, 525nm for green, and 626nm for red.
It has a viewing angle of 145° for red and green, and 100° for blue.
The forward voltage of the HSMF-C114 is 1.9V.
The lens dimensions are 1.6 x 1.5 x 0.35 mm.
This model uses surface mounting.
The maximum power dissipation for this LED is 52mW.
It is packaged in tape and reel format.
This model integrates three LEDs for multicolor output.
The luminosity is 70 mcd for blue and 85 mcd for green and red.
Yes, it is compatible with reflow soldering processes.
It is suitable for back-lighting, status indicators, and front panel illumination in various electronic applications.
