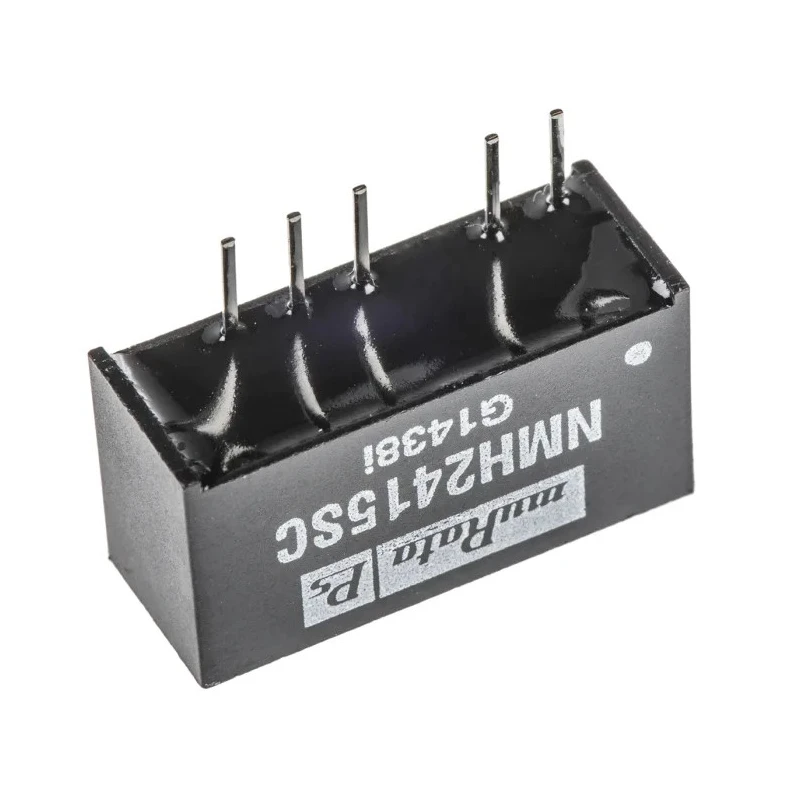

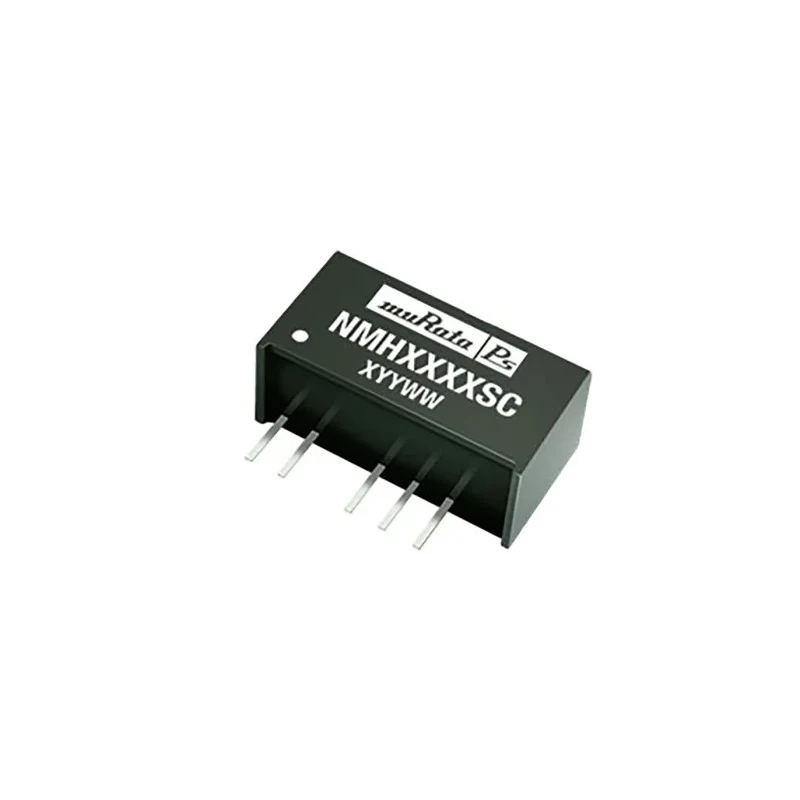

Murata Power Solutions 2W SIP Dual Output Unregulated Isolated DC-DC Converter Through Hole NMH2415SC

Murata Power Solutions NMH2415SC is a 2 watt, SIP dual output unregulated isolated DC-DC converter which is designed for industrial and electronic applications requiring efficient and reliable voltage conversion. This module provides a positive 15V and negative 15V DC output at a nominal current of 67 mA, ideal for powering dual voltage circuits.

The unit accepts a wide input voltage range from 21.6V to 26.4V DC, making it suitable for battery-powered and regulated supply systems. Its through hole mounting configuration in a SIP7 plastic package simplifies PCB assembly and enhances mechanical robustness.

With an efficiency rating of 86%, this converter minimizes power loss and heat generation. The low ripple and noise of 150mV peak-to-peak ensure stable voltage outputs critical for sensitive electronic components.

Electrically isolated with a 1 kV DC isolation voltage between input and output, it provides safe operation in noisy industrial environments and protects delicate downstream circuitry.

Operational temperature range spans from -40°C to +85°C, allowing deployment in harsh and temperature-variable environments typical in industrial, telecommunications, and instrumentation sectors.

The product conforms to RoHS directives, ensuring environmental compliance. It utilizes internal surface-mount device (SMD) construction within a UL 94V-0 rated plastic enclosure, enhancing safety and durability.

The NMH2415SC boasts a mean time between failures (MTBF) of 127,000 hours as per MIL-HDBK-217F standards, indicating high reliability for critical applications.

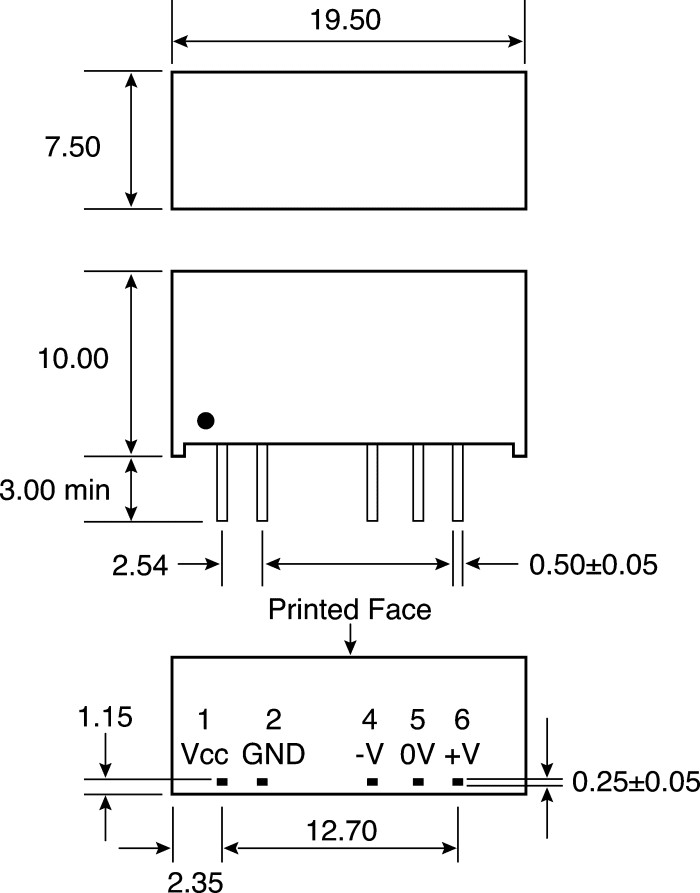

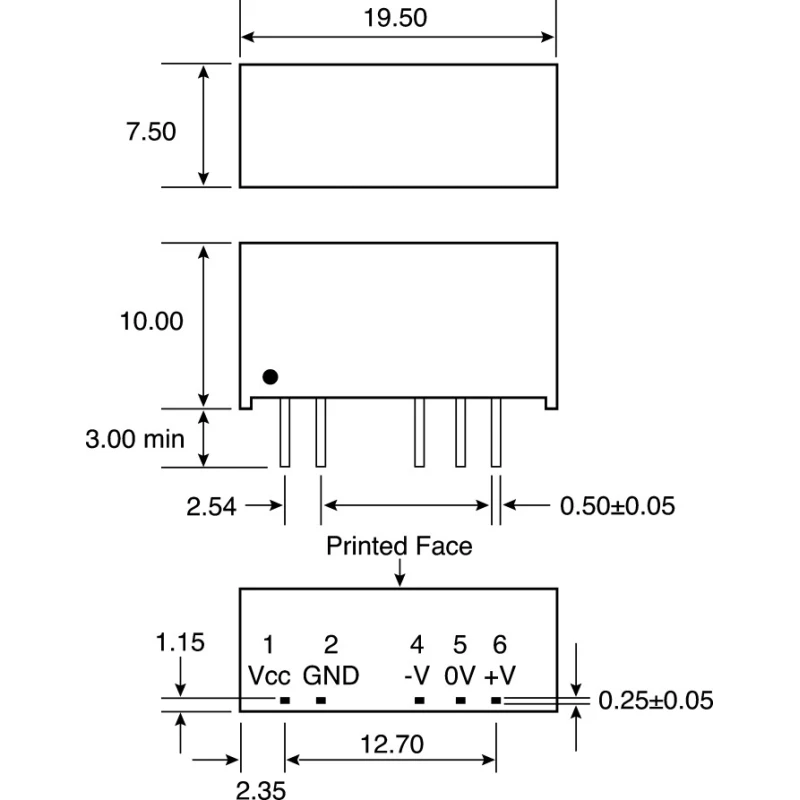

The compact physical size (19.5 mm length x 19.5 mm width x 10 mm depth) and light weight of 2.76 grams make it ideal for integration in space- and weight-sensitive electronic assemblies.

Provides dual output voltages of +15V and -15V DC with a maximum output current of 67 mA. Wide input voltage of 21.6V to 26.4V DC supports varied power supply conditions. High efficiency of 86% reduces power dissipation and prolongs lifespan.

1 kV input to output isolation ensures electrical safety in industrial environments. Robust SIP7 plastic through-hole package for easy PCB mounting and mechanical strength. Wide operating temperature from -40°C to +85°C suits harsh environments.

Compliance with RoHS for environmental safety standards. MTBF of 127,000 hours signifies dependable long-term operation. Minimal 150mV ripple and noise preserve signal integrity for sensitive electronics. Small footprint and lightweight design enable compact electronic system integration.

Murata Power Solutions products are trusted globally for power conversion applications across industrial equipment, telecommunications, computing, and instrumentation sectors. Explore more converters in EnvMart’s Electronics & Electricals category for advanced power solutions.
