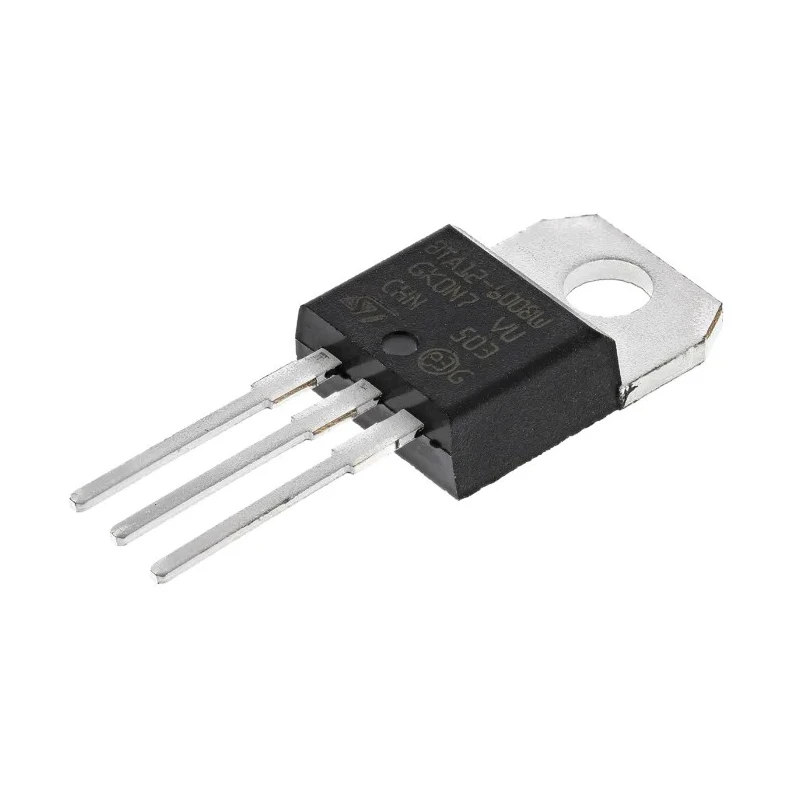

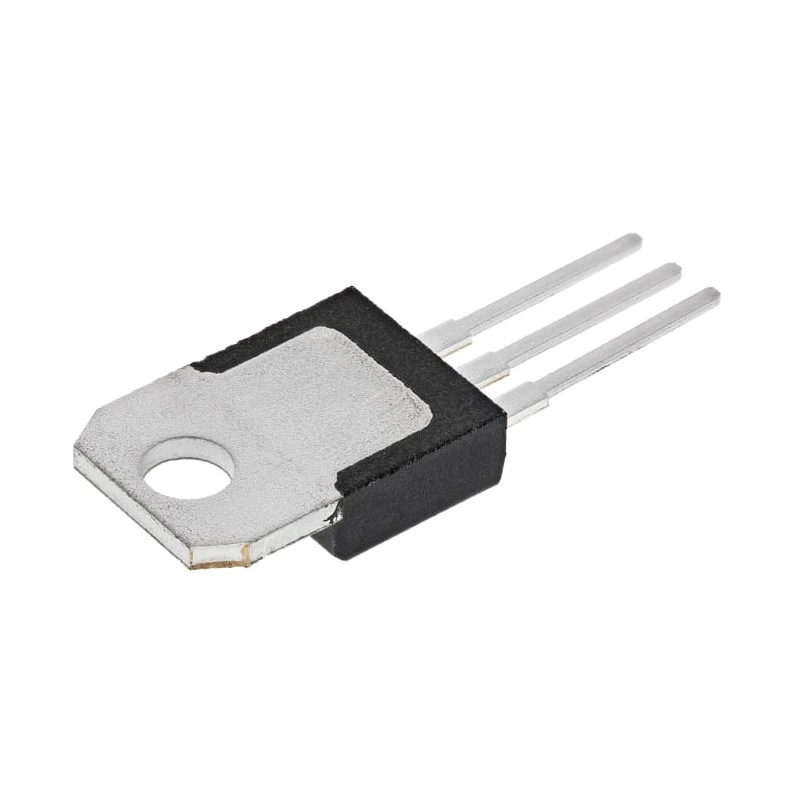

STMicroelectronics Through Hole, 3-Pin TRIAC, 800 V Rated, 12A Irms, Gate Trigger 1.3V, TO-220 Package BTA12-600BWRG

STMicroelectronics BTA12-600BWRG is an advanced through-hole TRIAC device designed for efficient power control in electronic systems. Rated at 800 V repetitive peak reverse voltage and 12 A Irms average current, this TRIAC is well suited for AC power switching in industrial, consumer electronic, and automation applications.

The device features a TO-220 package with 3 pins, facilitating simple insertion and soldering on through-hole PCBs. It is designed to tolerate surge currents up to 126 A, allowing it to withstand transient overload conditions effectively.

With a maximum gate trigger voltage of 1.3 V and gate trigger current of up to 50 mA, the BTA12-600BWRG TRIAC provides precise and reliable triggering even in low-voltage control circuits. Its operating temperature range from -40°C to 125°C supports operation under demanding thermal environments common in industrial setups.

This TRIAC exhibits a low peak on-state voltage of 1.55 V, thereby reducing power losses and improving energy efficiency. It is configured as a single TRIAC for versatile usage in various AC switching and phase control applications.

Typical industrial applications include motor control, lighting dimmers, heater controls, and other electrical appliances requiring robust AC power management. Its rugged construction and standardized form factor simplify integration into a wide range of electronic designs.

Package dimensions are compact, with a height of 15.9 mm and length of 10.4 mm, allowing high-density PCB layouts. The product has been manufactured adhering to semiconductor quality standards, ensuring longevity and consistent performance.

Features a 3-pin TO-220 package ideal for through-hole PCB mounting. Supports a repetitive peak reverse voltage of 800 V to handle high voltage applications. Rated average on-state current of 12A Irms for robust power handling.

Maximum surge current rating of 126A for transient load endurance. Gate trigger current max 50mA ensures stable triggering operation. Operating temperature range from -40°C to 125°C suitable for harsh environments. Maximum gate trigger voltage of 1.3 V for low voltage control signal activation.

Peak on-state voltage of 1.55 V minimizes conduction losses. Compact dimensions: 15.9 mm height and 10.4 mm length provide space-efficient integration. Single configuration suitable for a variety of switching applications.
