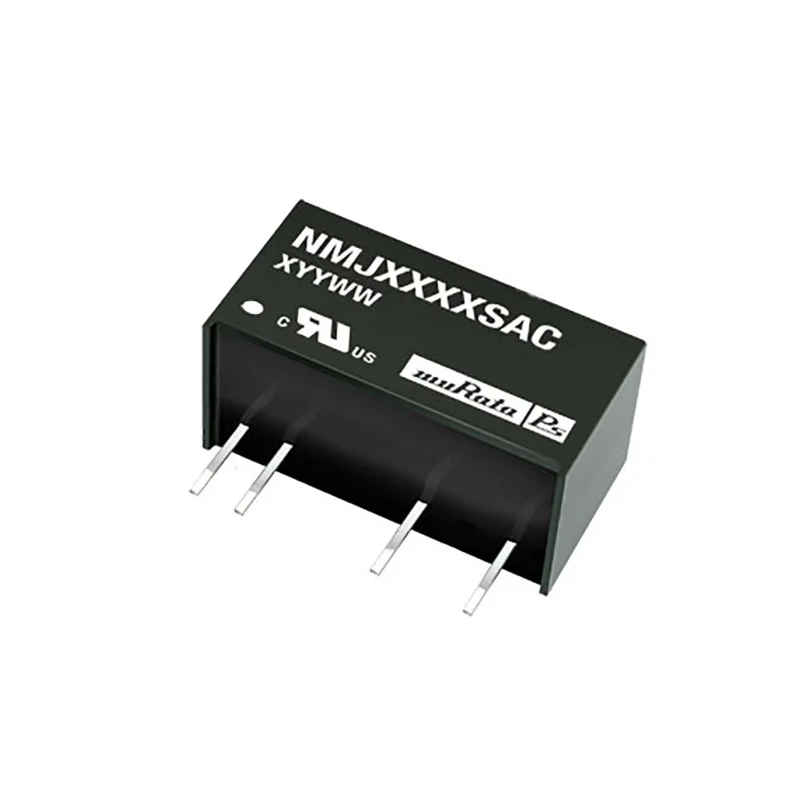

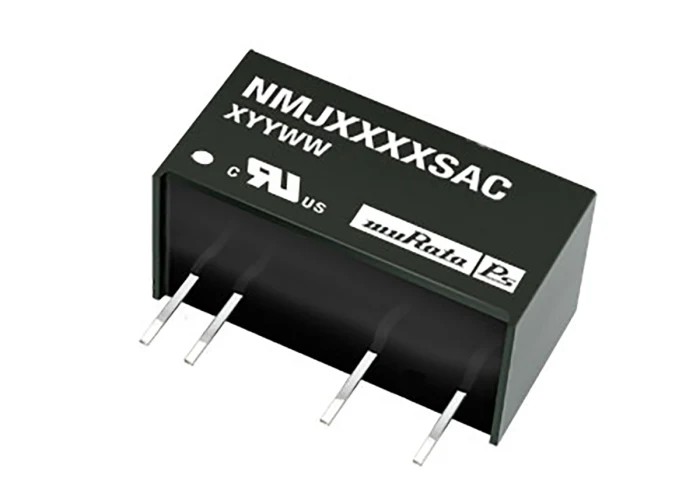

Murata Power Solutions DC/DC Converter 1W 5V DC Output 200mA 4.5-5.5V DC Input SIP Through Hole NMJ0505SAC
Specifications
| Country of Origin | China |
|---|---|
| Voltage | Converters / DC-DC Converters Murata Power Solutions NMJ DC/DC Converter, 5V dc/ |
| Brand | Murata Power Solutions |
| Efficiency | 68% |
| Length | 19.5mm |
| Model | NMJ0505SAC |
| Depth | 12.5mm |
| Gross Weight | 4.3g |
| Width | 19.5mm |
| Mount Type | Through Hole |
| Series | NMJ |
| Maximum Operating Temperature | 85°C |
| Package Type | SIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 13360000h |
| Number of outputs | 1 |
| Ripple and Noise | 50mV Pk-Pk |
| Maximum Output Power | 1W |
| Maximum Input Voltage | 5.5V dc |
| Standards/Approvals | RoHS |
| Minimum Input Voltage | 4.5V |
| Number of Pins | 7 |
| Output Voltage 1 | 5V dc |
| Output Current 1 | 200mA |
| Isolation Voltage | 5.2kV dc |
Key Features
- Input voltage range is 4.5V to 5.5V DC ensuring stable operation.
- Single output with excellent isolation voltage of 5.2kV DC.
- High reliability with MTBF of 13,360,000 hours.
- Low ripple and noise of 50mV peak to peak.
- Wide operating temperature range from -40°C to 85°C suitable for harsh environments.
- Compact SIP package dimensions of 19.5mm length, 19.5mm width, and 12.5mm depth.
- Efficiency rating of 68% ensures energy-saving performance.
- Fully encapsulated with toroidal magnetics requiring no heatsink.
Product Description
Murata Power Solutions NMJ0505SAC DC/DC Converter is a reliable and compact power supply solution designed for industrial and electronic applications requiring isolated output. This converter features a 1W output power with a regulated 5V DC output voltage and 200mA output current. Operating within an input voltage range of 4.5V to 5.5V DC, it supports efficient power conversion with 68% efficiency in a SIP type through-hole package.
The converter offers a high isolation voltage of 5.2kV DC, ensuring safety and noise immunity in demanding electrical environments. It maintains a low ripple and noise of 50mV peak to peak, making it suitable for noise-sensitive circuits. The product is designed with a wide operating temperature span from -40°C to 85°C, ideal for use in industrial, laboratory, and commercial HVAC systems where temperature variations are common.
Built with internal SMD construction and fully encapsulated with toroidal magnetics, the NMJ0505SAC requires no additional heat sinking, enabling compact designs. The footprint measures only 19.5mm by 19.5mm with a depth of 12.5mm, facilitating efficient PCB space utilization. This part complies with UL60950 safety standards and is RoHS certified.
Applications include industrial automation, telecommunications, instrumentation, and various embedded systems requiring isolated and regulated DC power conversion. The converter's high mean time before failure (MTBF) of over 13 million hours supports long-term reliability in continuous operation.
Input voltage range of 4.5V to 5.5V DC. Output voltage fixed at 5V DC with 200mA current capacity. High isolation voltage of 5.2kV DC for electrical safety. Low ripple and noise of 50mV peak to peak for clean output. Compact SIP through-hole packaging for easy PCB mounting.
Wide operating temperature range from -40°C to 85°C. Certified RoHS compliant and UL60950 recognized. Efficiency of 68% reducing heat dissipation. Long operational life with MTBF of 13,360,000 hours.
Discover this efficient and dependable DC/DC Converter ideal for industrial, laboratory, manufacturing, and power supply design projects. Explore more innovative power solutions and components at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The input voltage range for this model is 4.5V to 5.5V DC.
It has a maximum output power of 1W.
This unit provides a fixed output voltage of 5V DC with a current capacity of 200mA.
The NMJ0505SAC features a high isolation voltage of 5.2kV DC.
The dimensions of this SIP through-hole package are 19.5mm in length, 19.5mm in width, and 12.5mm in depth.
It has an efficiency rating of 68%.
This model operates within a temperature range of -40°C to 85°C.
The NMJ0505SAC maintains a low ripple and noise of 50mV peak to peak.
It is suitable for applications in industrial automation, telecommunications, instrumentation, and various embedded systems.
This model complies with RoHS standards and is recognized under UL60950 safety standards.
The MTBF for the NMJ0505SAC is over 13 million hours.
This unit is designed for through-hole mounting.
