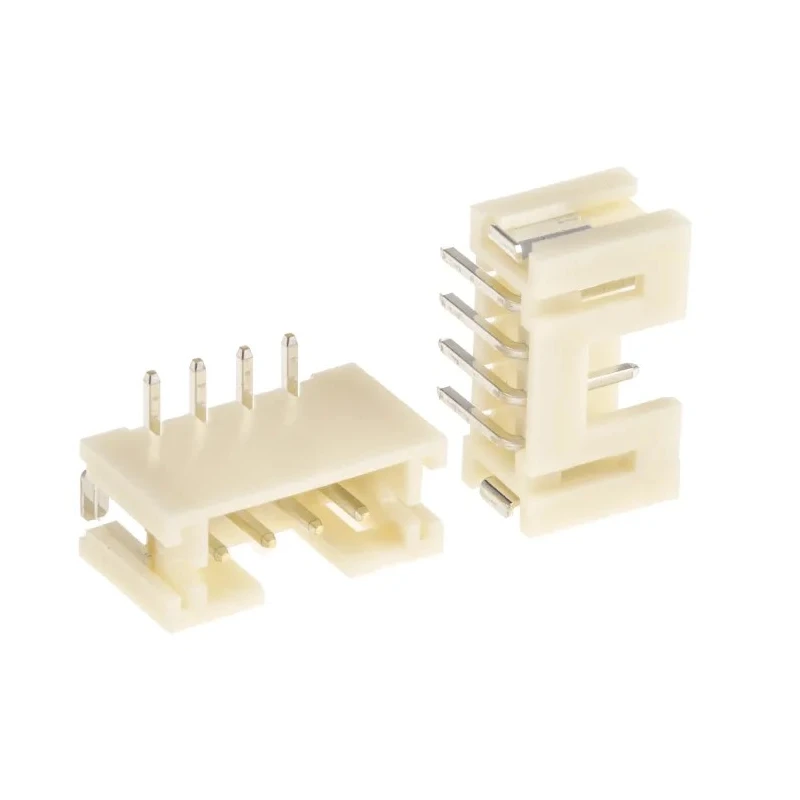

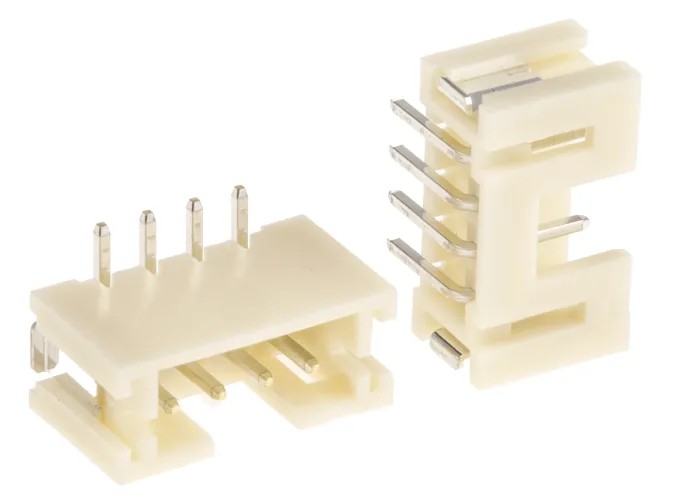

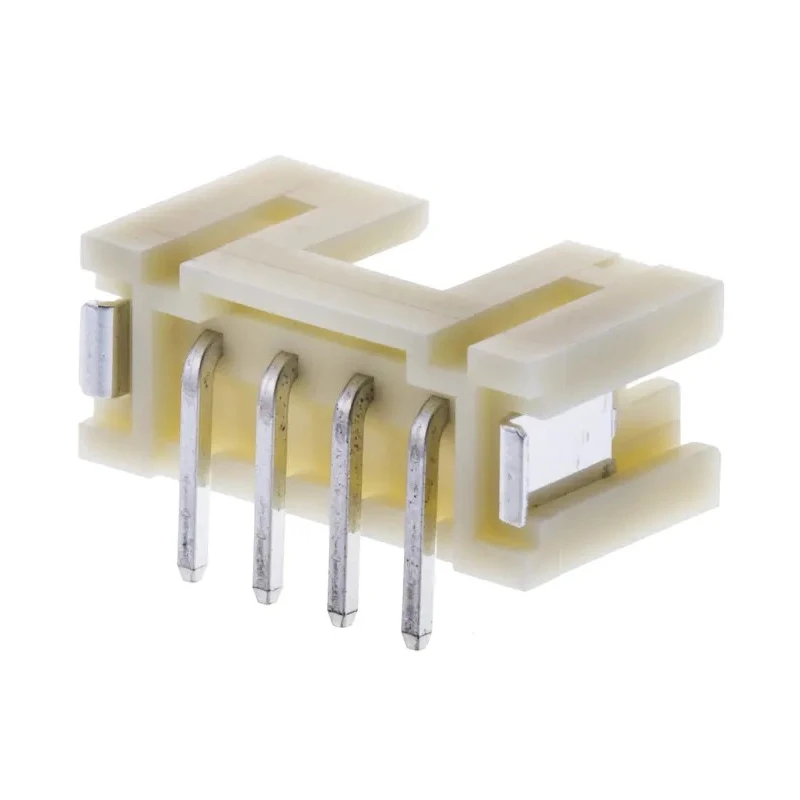

JST PH Series Straight Surface PCB Header, 4 Contacts, 2 mm Pitch, 1 Row, Shrouded B4B-PH-SM4-TB(LF)(SN)

JST B4B-PH-SM4-TB(LF)(SN) PH Series Straight Surface PCB Header is designed for high-density wire-to-board connections with low insertion force and high reliability. This connector features 4 contacts arranged in a single row with a 2 mm pitch, making it compact and space-saving for modern electronic assemblies.

The connector housing is made of durable polyamide material, fully shrouded to protect contacts, ensuring secure connections and minimizing mechanical damage. Contacts utilize copper alloy with tin plating to provide optimal conductivity and corrosion resistance. Its straight orientation and surface mount design make it suitable for PCB mounting in various electronic applications.

Operating safely at currents up to 2A and voltage ratings up to 100V ac, this connector performs reliably within a temperature range of -25°C to 85°C. It supports wire gauges from 32 AWG through 24 AWG, providing versatility for different cabling requirements.

Termination via soldering ensures robust mechanical and electrical integrity. Applications include electronic components, power and connectors assemblies in industrial, commercial, and consumer electronics systems. The JST PH Series is UL, CSA, and TUV certified, confirming its compliance with industry standards for safety and durability.

The header is fully shrouded for enhanced protection and reliability. Current rating of 2A and voltage rating of 100V ac. Polyamide housing with copper alloy tin-plated contacts. Straight orientation and surface mount type suitable for PCB.

Temperature range from -25°C to 85°C ensuring operational stability. Supports wire sizes from 32 to 24 AWG. One row with four male contacts for compact high-density applications. Solder termination for secure and reliable connections.

Extensively used in electronics requiring stable internal wiring. Complies with UL, CSA, and TUV standards for certified quality. This product is part of the PCB Headers category at EnvMart, ideal for electronics manufacturing and repair applications requiring reliable and efficient PCB connectors.
