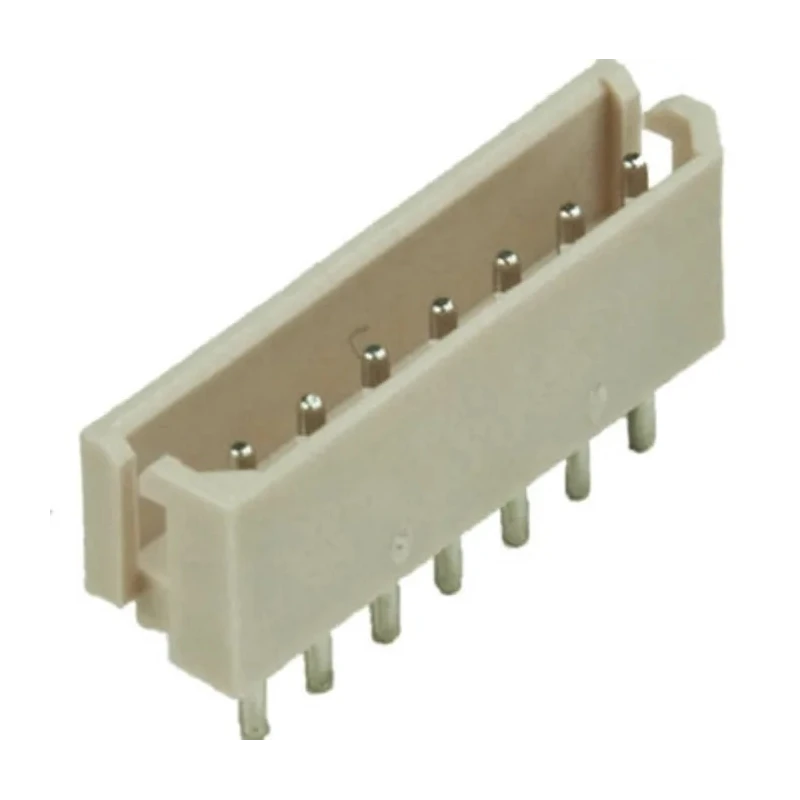

Molex SPOX Series Straight Through Hole Shrouded PCB Header 7 Contacts 2.5 mm Pitch 1 Row 22-03-5075
Specifications
| Country of Origin | Korea |
|---|---|
| Voltage | 250V |
| Brand | Molex |
| Orientation | Straight |
| Current | 3A |
| Mount Type | Through Hole |
| Housing Material | Nylon |
| Contact Material | Brass |
| Series | SPOX |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 2.5mm |
| Contact Plating | Tin |
| Number of Contacts | 7 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| Tail Pin Length | 3.5mm |
Key Features
- Durable nylon housing ensures mechanical stability.
- Brass contacts with tin plating provide reliable conductivity.
- Rated for 3 A current and 250 V voltage operation.
- Operating temperature range from -40°C to 105°C.
- Through-hole mount with 3.5 mm tail pin length for secure PCB soldering.
- Polarized shrouded design prevents mismating errors.
- Suitable for automotive, medical, and industrial applications.
Product Description
Molex 22-03-5075 SPOX Series Straight Through Hole Shrouded PCB Header is engineered for reliable wire-to-board electrical connections. It includes 7 male contacts arranged in a single row with a compact 2.5 mm pitch, ideal for low profile electronic applications.
The connector housing is manufactured from high strength nylon material, providing mechanical protection and excellent electrical insulation. Each brass contact with tin plating delivers consistent 3A current capacity and 250V operation rating, making it suitable for a wide range of industrial and commercial electronics.
Designed to withstand operating temperatures from -40°C up to 105°C, this PCB header is robust for use in automotive, medical, telecommunications, and networking equipment. Its through-hole mount, with 3.5 mm tail pin length, allows for secure and durable solder termination on printed circuit boards. The shrouded and polarized design ensures proper mating and prevents connection errors, while the friction lock mechanism secures the connector assembly.
These features make the Molex SPOX series highly reliable for applications requiring consistent electrical performance and mechanical durability in challenging environments. The connector offers a low profile shrouded design for compact circuit board layouts.
Polarization prevents connection mismatches, ensuring safety and reliability. Friction lock mechanism provides secure mating connection stability. Swaged tail versions available for enhanced PCB retention (not included in this part).
Commonly applied in automotive, consumer electronics, data communication, industrial control, medical, and telecommunications sectors. This product is manufactured in Korea, Republic Of, and supplied as new condition compliant with industry standards but without specific certifications.
Explore more PCB Headers and related connectors on EnvMart for varied pitch sizes, configurations, and mounting styles suitable for your electronic design needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a current of 3 A and a voltage of 250 V.
It operates within a temperature range of -40°C to 105°C.
This unit features 7 male contacts arranged in a single row.
It uses a through-hole mounting type for secure PCB soldering.
The housing is made from durable nylon material, providing mechanical protection and electrical insulation.
The pitch size of this model is 2.5 mm, making it suitable for low profile electronic applications.
It supports wire-to-board connections, ensuring reliable electrical connectivity.
Yes, it features a polarized shrouded design to prevent mismating errors during connection.
The tail pin length is 3.5 mm, allowing for secure solder termination on PCBs.
The contacts are made of brass with tin plating, providing reliable conductivity.
It is commonly applied in automotive, medical, telecommunications, and industrial control applications.
This PCB header is manufactured in the Republic of Korea.
