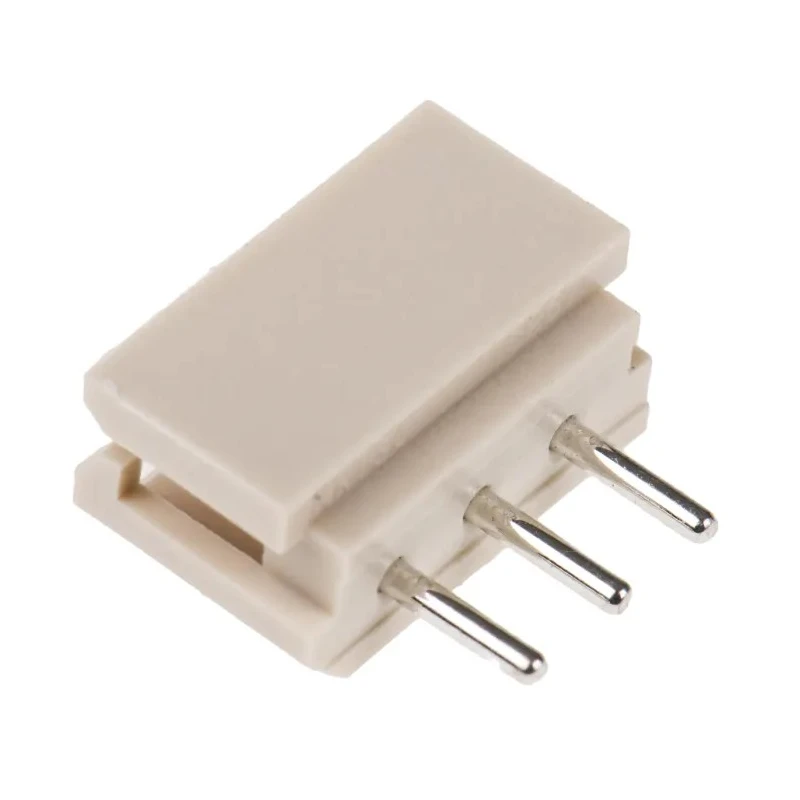

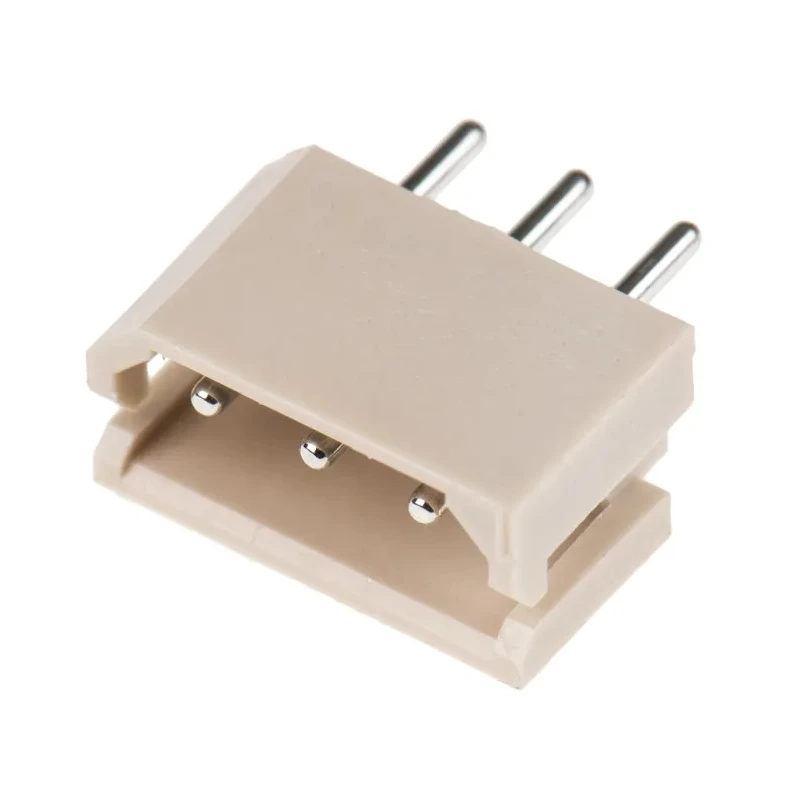

Molex SPOX Series PCB Header, 3 Contacts, 2.5 mm Pitch, 1 Row, Straight Orientation, Shrouded, Through Hole 22-03-5035
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 250V |
| Brand | Molex |
| Orientation | Straight |
| Current | 3A |
| Mount Type | Through Hole |
| Housing Material | Nylon |
| Contact Material | Brass |
| Series | SPOX |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 2.5mm |
| Contact Plating | Tin |
| Number of Contacts | 3 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| Tail Pin Length | 3.5mm |
Key Features
- Constructed with brass contacts plated with tin for superior conductivity and durability.
- Features a shrouded design providing protection and secure connections.
- Supports a temperature range from -40°C to 105°C, suitable for various environments.
- Straight body orientation enables easy and stable connectivity.
- Through hole mounting ensures reliable installation on PCBs.
- Ideal for signal and power transmission in automotive, electronics, and automation industries.
- Tail pins are 3.5 mm in length, facilitating solder termination.
- Designed specifically for wire-to-board connector systems with male contact gender.
Product Description
Molex 22-03-5035 SPOX Series PCB Header is a high-quality connector designed with a 2.5 mm pitch and a single row of 3 male contacts, providing a secure and efficient wire-to-board interface. Rated for 250 V voltage and carrying up to 3 A current, it features a brass contact material plated with tin to ensure excellent electrical conductivity and corrosion resistance.
The connector employs a shrouded design that offers enhanced mechanical protection to the contacts and ensures stable mating with cables. Its through hole mount type allows for robust installation on printed circuit boards, suitable for industrial, automotive, and electronic manufacturing applications.
Operating within a temperature range of -40°C to 105°C, the Molex 22-03-5035 PCB header is capable of withstanding challenging environmental conditions while maintaining reliable performance.
The straight orientation and tail pin length of 3.5 mm are optimized for stable soldering and seamless integration into PCB assemblies. Brass contact material with tin plating for conductivity and durability. Shrouded design enhances protection and connection security.
Through hole mount offers stronger mechanical stability. Rated 3 A current ensures dependable power transmission. Wide operating temperature range suitable for versatile applications. Ideal for automation, electronics, and signal transmission uses.
Male contact gender fits wire-to-board connector systems.
This PCB header is perfect for industrial electronics manufacturers requiring reliable connections under varying environmental conditions. Browse the Electronics Components category at EnvMart for more PCB header solutions and complementary connectors.
Explore more products in our PCB Headers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The voltage rating of this PCB header is 250 V.
It can carry a maximum current of 3 A.
The pitch size of the contacts is 2.5 mm.
This model utilizes a through hole mounting type for installation.
The operating temperature range is from -40°C to 105°C.
The contacts are constructed from brass and plated with tin for conductivity.
The tail pins of this PCB header are 3.5 mm in length.
It is designed specifically for wire-to-board connector systems.
This model features 3 contacts in a single row.
The orientation of this PCB header is straight.
The housing material is made of nylon.
The country of origin for this PCB header is India.
