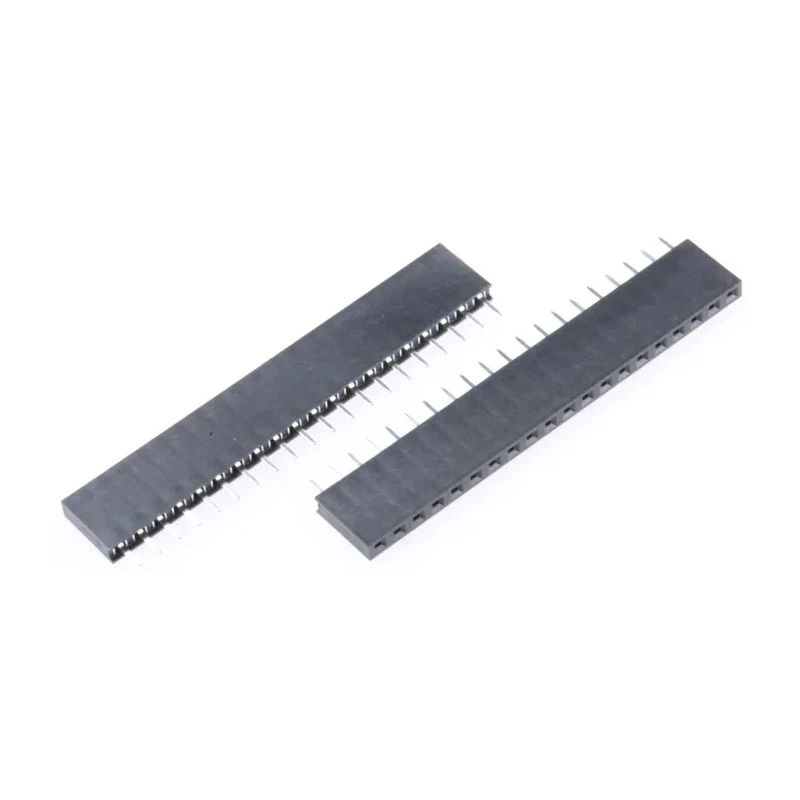

HARWIN M20 Series Straight Through Hole 20-Contact 1 Row 2.54 mm Pitch PCB Socket M20-7822046

HARWIN M20-7822046 is a high-quality PCB Socket featuring 20 contacts in a single row with 2.54 mm pitch, designed for straight through-hole mounting applications. This connector is engineered for reliable board-to-board connection in electronic assemblies requiring compact size and durability.

The socket housing is made from high temperature Nylon material conforming to UL94V-0 standards, ensuring excellent mechanical strength and resistance to soldering heat during reflow processes. The durable bronze contacts feature tin over nickel plating which offers strong corrosion protection and stable electrical conductivity.

It supports a broad temperature range from -55°C to 105°C, making it suitable for harsh environments in industrial, consumer electronics, communication devices, and control systems.

The design includes highly reliable dual beam contacts which improve connection stability and extend connector lifecycle up to approximately 300 mating cycles. The straight orientation and through-hole mounting type provide robust mechanical retention on printed circuit boards.

This component is compliant with RoHS directives, reinforcing its suitability for environmentally conscious manufacturing. It is commonly used in embedded PCs, motherboard applications, industrial monitoring devices, and personal computing systems.

Compact design for increased PCB density. High temperature Nylon housing UL94V-0 rated. Durable dual beam bronze contacts. Tin over nickel plating for corrosion resistance. 12A current rating per contact. Operating temperature: -55°C to 105°C.

Through-hole mount with straight contact orientation. RoHS compliant. Industrial and consumer electronics applications. Manufactured in China. Explore HARWIN connectors and related components available at EnvMart for your electronic assembly and manufacturing needs.
