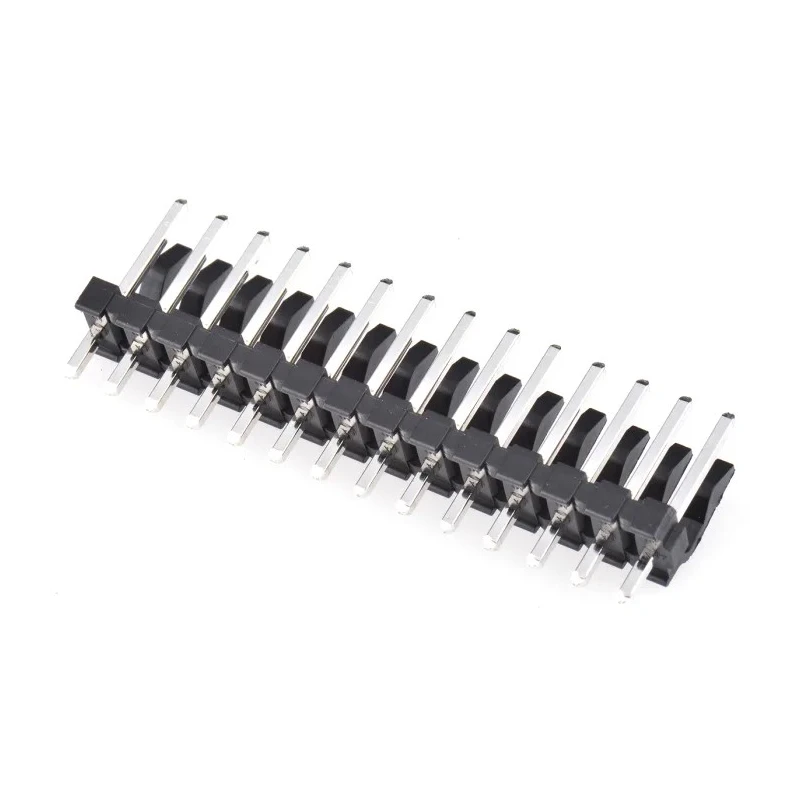

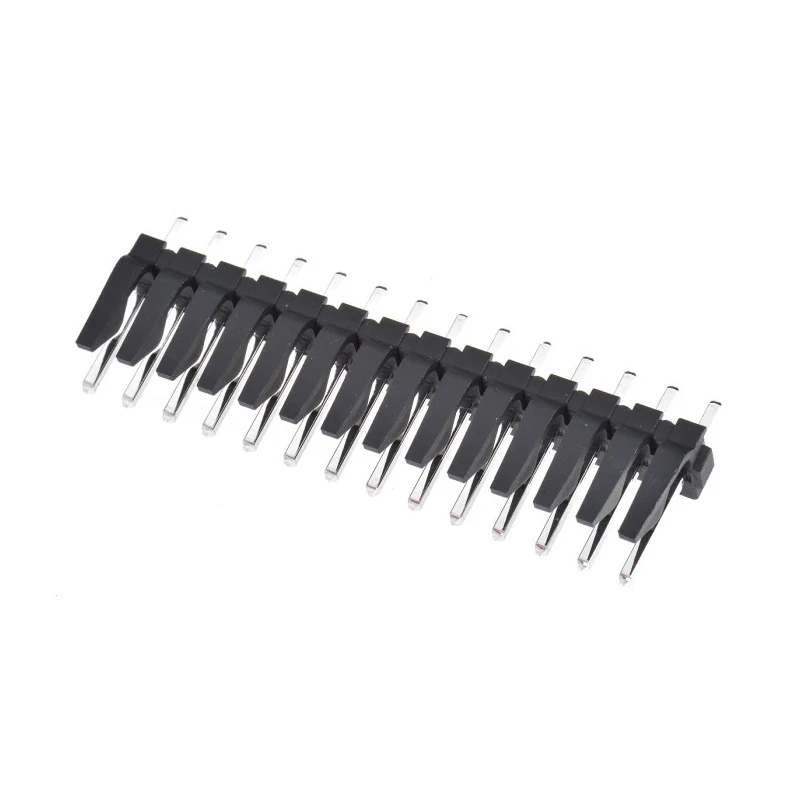

Molex KK 396 Series Straight Through Hole Pin Header, 14 Contacts, 3.96 mm Pitch, 1 Row, Unshrouded 26-48-1145
Specifications
| Country of Origin | Mexico |
|---|---|
| Voltage | 250V |
| Brand | Molex |
| Orientation | Straight |
| Current | 7A |
| Mount Type | Through Hole |
| Housing Material | Polyester |
| Contact Material | Brass |
| Series | KK 396 |
| Termination Type | Solder |
| Maximum Operating Temperature | 80°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 3.96mm |
| Contact Plating | Tin |
| Number of Contacts | 14 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Wire-to-Board |
| Tail Pin Length | 4.37mm |
Key Features
- Features 14 male contacts for secure wire-to-board connection.
- 3.96 mm pitch ensures compatibility with KK 396 series housings.
- Designed for through hole mounting with a straight orientation.
- Contacts are made of brass and plated with tin for durability.
- Housing is constructed from polyester for electrical insulation.
- Operates reliably between -40°C and 80°C temperature range.
- Supports maximum voltage of 250 V and current rating up to 7 A.
- Unshrouded design facilitates straightforward solder termination.
Product Description
Molex 26-48-1145 KK 396 Series Straight Through Hole Pin Header is a high-quality electronic component designed for wire-to-board connections. It features 14 male contacts arranged in a single row with a precise 3.96 mm pitch, matching the KK 396 header series standards for mechanical and electrical compatibility.
The contacts are made from brass and are tin plated to ensure reliable conductivity and corrosion resistance during operation. The housing material is polyester, which provides excellent electrical insulation and structural stability. The unshrouded configuration allows easy access for soldering and maintenance.
This connector is intended for through hole mounting, ensuring robust mechanical retention on printed circuit boards. It supports a maximum operating voltage of 250 V and a current rating of 7 A, suitable for a variety of electronic applications including industrial, manufacturing, and electronic assembly lines.
The operating temperature range from -40°C to 80°C makes it reliable for use in environments exposed to temperature variations. The tail pin length of 4.37 mm provides compatibility with standard PCB thicknesses and layouts.
Features 14 male contacts for secure wire-to-board connection. 3.96 mm pitch ensures compatibility with KK 396 series housings. Designed for through hole mounting with a straight orientation. Contacts are made of brass and plated with tin for durability.
Housing is constructed from polyester for electrical insulation. Operates reliably between -40°C and 80°C temperature range. Supports maximum voltage of 250 V and current rating up to 7 A. Unshrouded design facilitates straightforward solder termination.
Tail pin length of 4.37 mm accommodates standard PCB layouts. This pin header is well-suited for electronics manufacturing, industrial equipment connectors, and custom PCB designs requiring reliable, standardized connections.
Explore the full range of Molex connectors and PCB header components at EnvMart for dependable electronic assembly solutions.
Explore more products in our PCB Headers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch of this pin header is 3.96 mm, ensuring compatibility with KK 396 series housings.
This model features 14 male contacts arranged in a single row for secure wire-to-board connections.
It supports a maximum operating voltage of 250 V and a current rating of up to 7 A.
The contacts are made of brass and plated with tin, while the housing is constructed from polyester for electrical insulation.
This pin header operates reliably within a temperature range of -40°C to 80°C.
It is designed for through hole mounting, ensuring robust mechanical retention on printed circuit boards.
The tail pin length is 4.37 mm, accommodating standard PCB thicknesses and layouts.
This model is unshrouded, which facilitates straightforward solder termination.
The connector system is designed for wire-to-board connections, suitable for various electronic applications.
It uses solder termination, which allows for secure connections on printed circuit boards.
The country of origin for this pin header is Mexico.
This model specifically features 14 contacts, a 3.96 mm pitch, and an unshrouded design, which may vary from other configurations in the KK 396 series.
