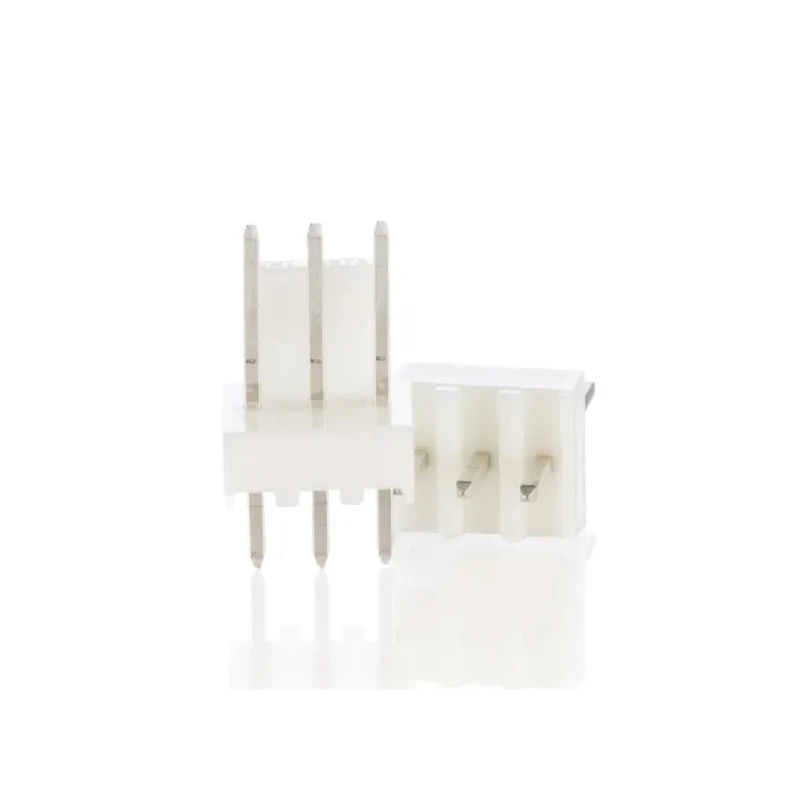

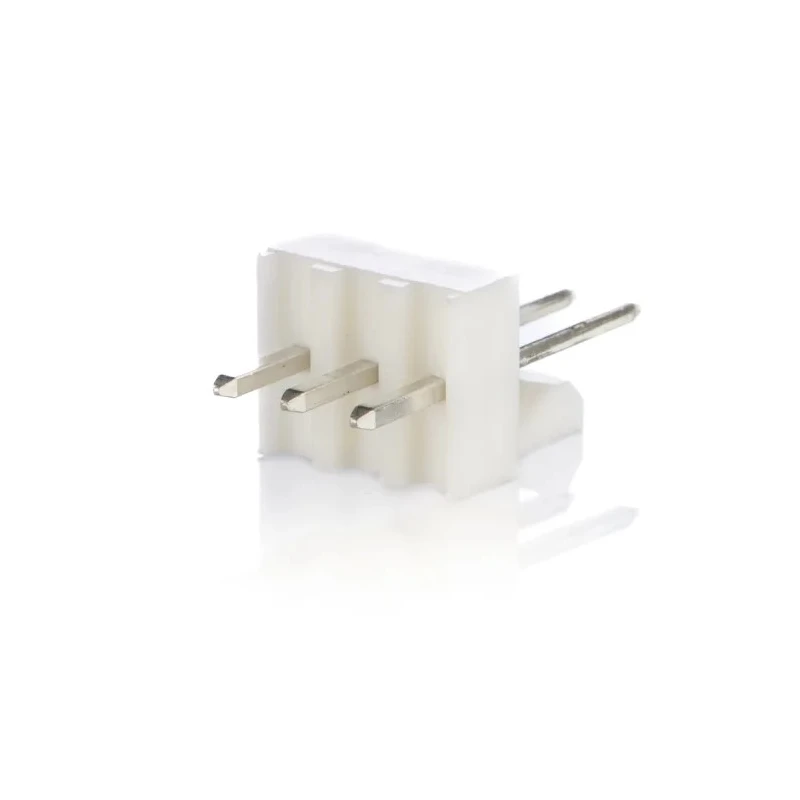

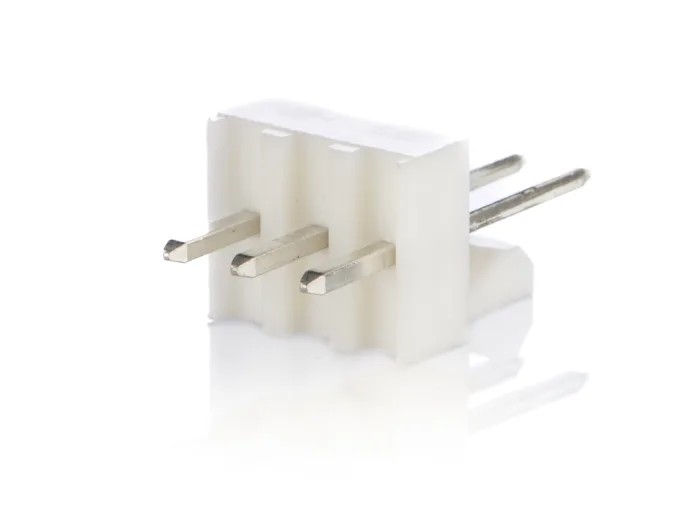

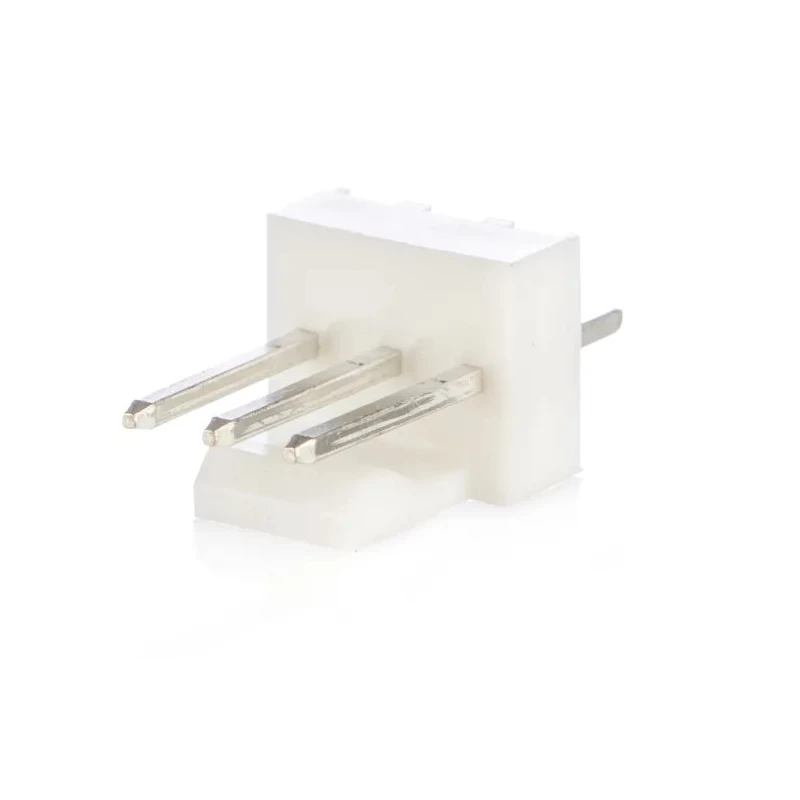

Molex KK 254 Series Straight Through Hole Pin Header 3 Contacts 2.54 mm Pitch 1 Row Unshrouded 22-23-2031
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 500V |
| Brand | Molex |
| Orientation | Straight |
| Current | 4A |
| Mount Type | Through Hole |
| Housing Material | Nylon |
| Contact Material | Brass |
| Series | KK 254 |
| Termination Type | Solder |
| Maximum Operating Temperature | 80°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Contact Plating | Tin |
| Number of Contacts | 3 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Wire-to-Board |
Key Features
- Constructed with fire-resistant nylon housing for durability and chemical resistance.
- Brass male contacts plated with tin providing corrosion resistance.
- Designed for through-hole mounting and solder termination ensuring reliable connections.
- Wide operating temperature range from -40°C to 80°C supports various industrial environments.
- Rated for up to 500V, suitable for low-power and signal electronics.
- Compatible with other Molex crimp housings and PCB connectors for versatile application.
- Ideal for use in medical, telecommunications, automotive, and security systems.
Product Description
Molex 22-23-2031 Straight Through Hole Pin Header is a high-quality electronic connector designed for PCB applications requiring reliable wire-to-board connections. Featuring 3 male contacts arranged in a single row with a 2.54 mm pitch, it provides a compact and secure interface for signal and low power electronics.
The header body is made from robust nylon material with fire-resistant properties, ensuring long service life and resistance to chemical contamination. The brass contacts are tin plated to enhance corrosion resistance and maintain contact integrity over time.
This product supports a continuous current of up to 4A per contact and withstands voltages up to 500V, making it well suited for a variety of industrial and commercial electronics. Operating temperature ranges from -40°C to 80°C, allowing use in harsh environmental conditions.
The pin header is designed for through-hole mounting technology and solder termination, offering strong mechanical and electrical connections. Its straight orientation and unshrouded design allow easy mating with corresponding Molex crimp housings and PCB connectors like the 2695, 6471, 7880, 4455, and 7720 series.
Durable nylon housing with fire-resistant rating. Brass male contacts with tin plating for corrosion protection. Through-hole solder termination for robust connections. 3 contacts in a single row with 2.54 mm pitch spacing.
Supports 4A current and 500V voltage ratings. Wide operational temperature range from -40°C to 80°C. Suitable for medical, automotive, telecommunications, and security applications.
This Molex KK 254 series PCB Pin Header is ideal for electronic assembly and maintenance where secure, long-lasting connections are required. Its compatibility with multiple Molex connector families provides design flexibility. It is widely used in industrial plants, manufacturing, telecommunications equipment, medical devices, and automotive electronic systems.
Explore more high-quality PCB connectors and accessories in the Electronics Components category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a maximum voltage of 500V, making it suitable for low-power and signal electronics applications.
It supports a continuous current of up to 4A per contact, allowing for reliable connections in various electronic applications.
The contacts are arranged with a pitch of 2.54 mm, which is standard for many PCB applications.
The housing is made from fire-resistant nylon, while the contacts are brass with tin plating for enhanced corrosion resistance.
It is designed for through-hole mounting, ensuring a secure and stable installation on PCBs.
The pin header operates effectively within a temperature range of -40°C to 80°C, suitable for various industrial environments.
This model features 3 male contacts arranged in a single row, providing a compact interface for connections.
Yes, it is compatible with various Molex crimp housings and PCB connectors, allowing for versatile applications.
It utilizes solder termination, which ensures strong mechanical and electrical connections on the PCB.
The pin header has a straight orientation, facilitating easy mating with corresponding connectors.
It is suitable for use in medical, telecommunications, automotive, and security systems due to its reliable performance.
The pin header is manufactured in India, ensuring compliance with relevant manufacturing standards.
