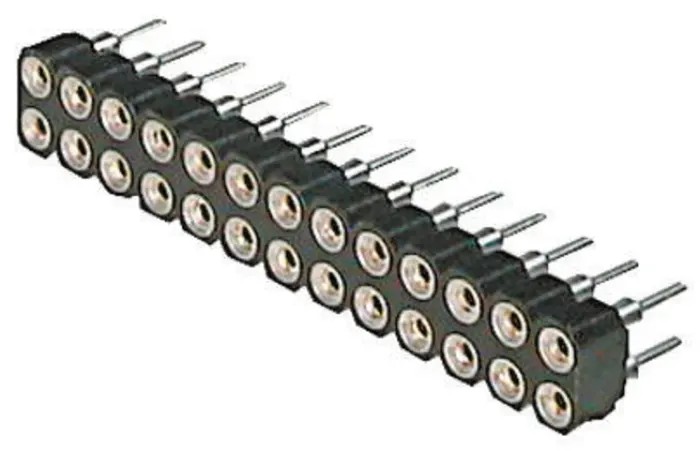

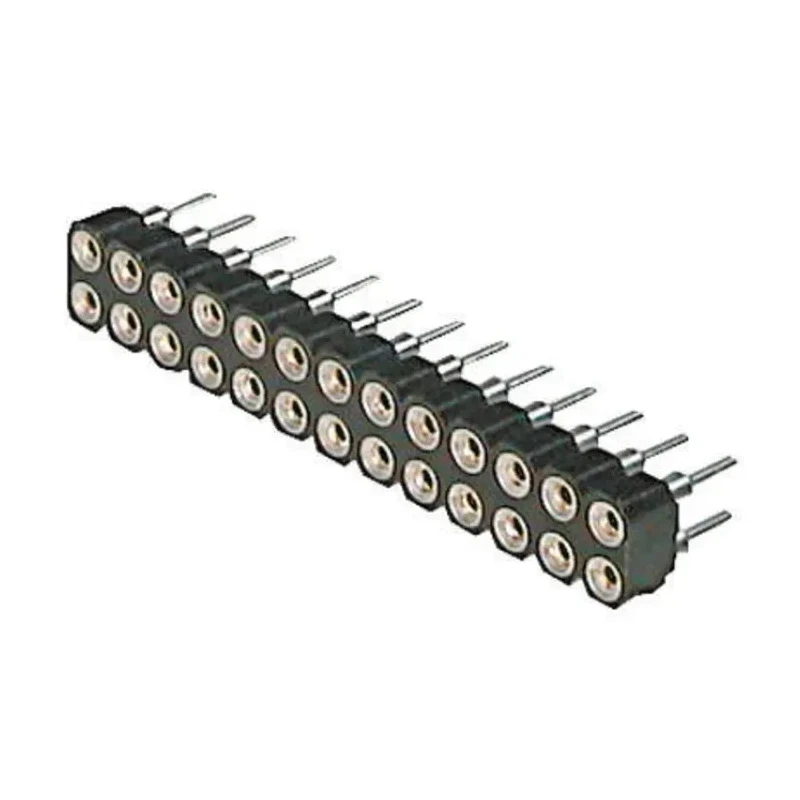

ASSMANN WSW AWD Series Straight Through Hole PCB Socket, 20-Contact, 2 Row, 2.54 mm Pitch Solder AWD 127/20/Z-T
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 100V |
| Brand | ASSMANN WSW |
| Orientation | Straight |
| Current | 12A |
| Model | AWD 127/20/Z-T |
| Mount Type | Through Hole |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Phosphor Bronze, Brass |
| Series | AWD |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Sub Type | Board-to-Board |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Tin |
| Number of Contacts | 20 |
| Contact Gender | Female |
Key Features
- Features 20 female contacts arranged in 2 rows for efficient multi-connection.
- Pitch between contacts is 2.54 mm, suitable for standard PCB designs.
- Mount type is through hole ensuring secure mechanical and electrical connection.
- Contact material includes phosphor bronze and brass with tin plating for excellent conductivity and corrosion resistance.
- Housing made from durable polybutylene terephthalate for high thermal stability.
- Rated for 12 A current and 100 V operating voltage suitable for a variety of applications.
- Operates reliably between temperatures -40°C to 105°C, suitable for industrial environments.
- Straight orientation and machined pins allow easy soldering and assembly.
Product Description
ASSMANN WSW AWD 127/20/Z-T is a high-quality straight through hole PCB socket designed for board-to-board electronic connections. This 20-contact socket features a 2-row configuration with a 2.54 mm pitch between contacts, ideal for standard printed circuit board layouts. It is intended for use in industrial and electronic manufacturing environments where reliable, durable interconnections are required.
The socket's female contacts are made using a combination of phosphor bronze and brass, providing excellent conductivity, mechanical strength, and corrosion resistance. The contact plating with tin enhances solderability and protects against oxidation. The housing is constructed from polybutylene terephthalate, a thermoplastic polymer that offers robust mechanical support and thermal stability over a wide temperature range from -40°C to 105°C.
Designed for through hole mounting, this socket facilitates secure attachment to PCBs with machined pins that ensure precise alignment and ease of soldering. It supports currents up to 12 A and voltages up to 100 V, making it suitable for many electronics and power applications.
20 female contacts in 2 rows provide stable multi-connection. 2.54 mm pitch matches common PCB standards. Through hole mount type for firm solder joint strength. Phosphor bronze and brass contacts plated with tin for durability.
Polybutylene terephthalate housing ensures thermal and mechanical resilience. Operates from -40°C to 105°C for industrial reliability. Rated 12 A current and 100 V voltage for versatile use. Straight orientation with machined pins eases assembly.
This ASSMANN WSW PCB socket is used extensively in electronics manufacturing, industrial automation, communication equipment, instrumentation, and other areas requiring dependable electrical connectivity. Its robust materials and precise engineering support long-term performance in demanding environments.
Explore the PCB Sockets category on EnvMart for additional ASSMANN WSW products and related electronic components. Find compatible connectors and sockets to complete your hardware assembly effectively.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The contacts in this PCB socket are arranged with a pitch of 2.54 mm, which is suitable for standard PCB designs.
This model is rated for a maximum current of 12 A, making it suitable for various electronics and power applications.
It can operate reliably at temperatures up to 105°C, suitable for industrial environments.
The contacts are made from a combination of phosphor bronze and brass, providing excellent conductivity and corrosion resistance.
This socket features 20 female contacts arranged in 2 rows.
It utilizes a through hole mounting type, ensuring a secure mechanical and electrical connection to PCBs.
This model is rated for an operating voltage of 100 V, suitable for various applications.
The housing is made from polybutylene terephthalate, which offers high thermal stability and robust mechanical support.
The contacts are arranged in a straight orientation, facilitating easier soldering and assembly.
This PCB socket operates reliably at temperatures as low as -40°C, suitable for extreme conditions.
It uses solder termination, which is common for secure electrical connections in PCB applications.
It is commonly used in industrial automation, communication equipment, and instrumentation where reliable electrical connectivity is required.
