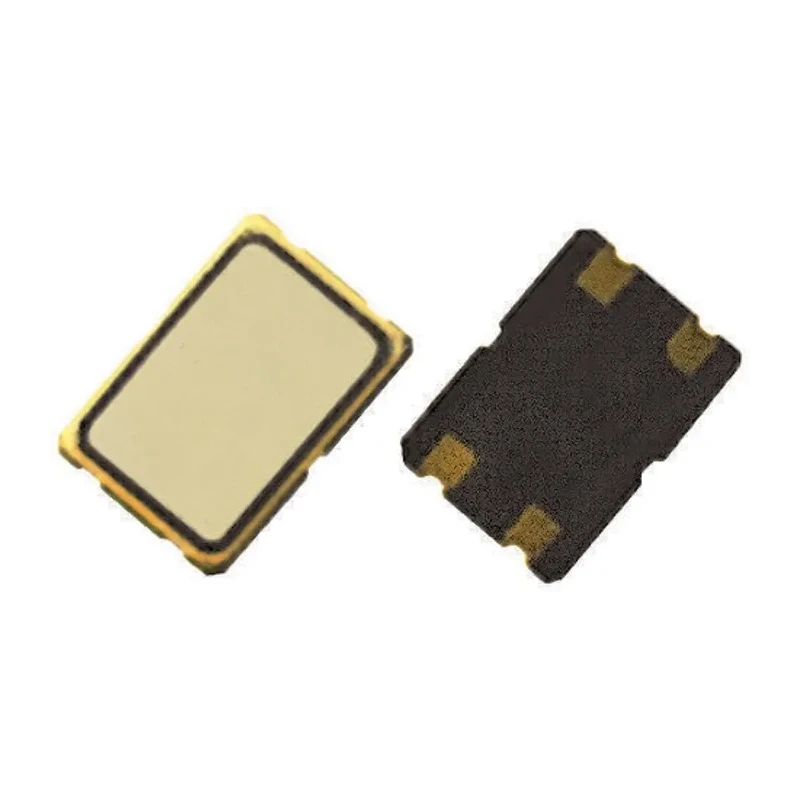

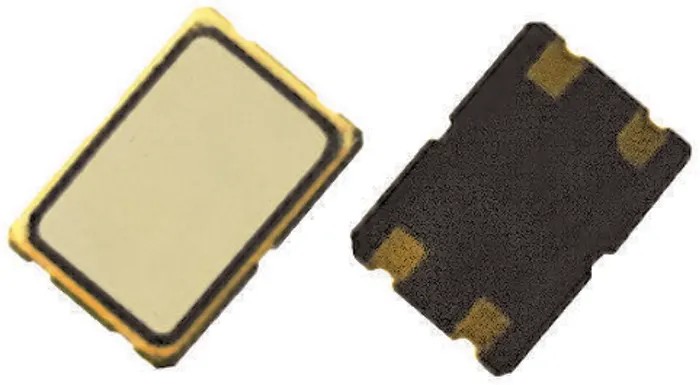

AKER 6 MHz Crystal ±30 ppm Surface Mount 4-Pin 7 mm x 5 mm x 1.1 mm C7S-6.000-12-3030-X
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | AKER |
| Height | 1.1mm |
| Length | 7mm |
| Model | C7S-6.000-12-3030-X |
| Packaging | Tape & Reel |
| Width | 5mm |
| Mount Type | Surface |
| Series | C7S |
| Maximum Operating Temperature | 85°C |
| Package Type | Surface Mount |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 4 |
| Standard Frequency | 6MHz |
| Load Capacitance | 12pF |
| Series Resistance | 110Ω |
Key Features
- Standard frequency of 6 MHz ensures reliable oscillation performance.
- ±30 ppm frequency tolerance provides stable frequency accuracy.
- Surface mount package type with 4 pins facilitates easy PCB integration.
- Operating temperature range from -40°C to 85°C suits industrial applications.
- Load capacitance of 12 pF supports various oscillator circuit designs.
- Series resistance of 110 Ω limits electrical losses and improves signal quality.
- RoHS compliant ensuring environmental safety standards adherence.
- Packaged on tape and reel for automated assembly processes.
Product Description

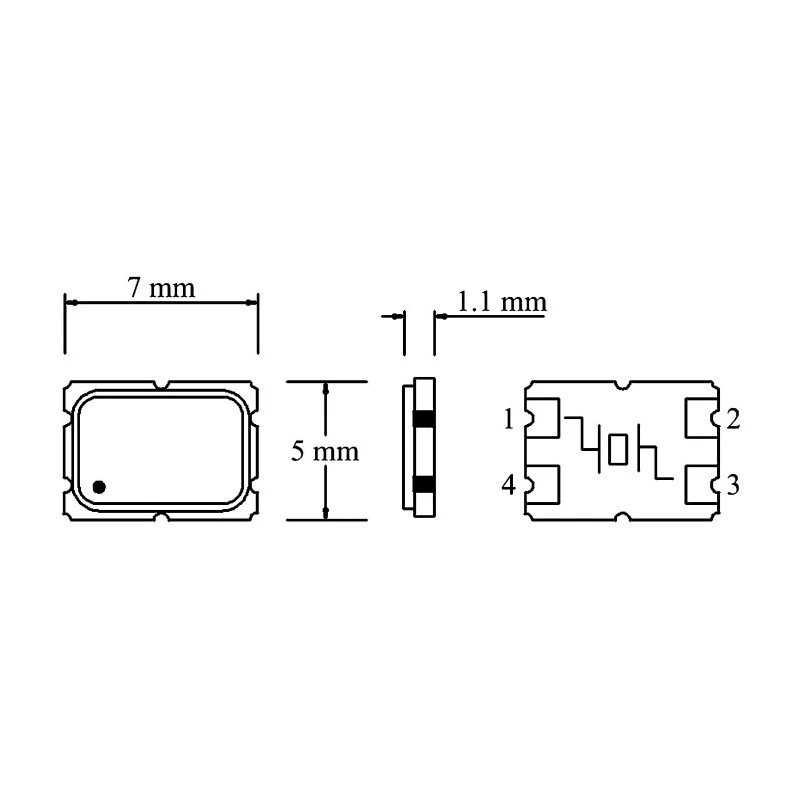

AKER C7S-6.000-12-3030-X is a high precision 6 MHz crystal unit designed for surface mount applications with a 4-pin configuration. With dimensions of 7 mm length, 5 mm width, and 1.1 mm height, it offers a compact footprint ideal for space-constrained PCBs.
The crystal provides a stable frequency output featuring a frequency tolerance and stability of ±30 ppm, making it suitable for use in timing circuits requiring high accuracy. The standard load capacitance is 12 pF and the series resistance is rated at 110 Ω, ensuring low signal attenuation and dependable performance.
This component operates reliably over a temperature range of -40°C to 85°C, permitting use in a wide range of industrial, consumer electronics, and communication device environments. It is RoHS compliant, meeting environmental requirements for electronic components.
The product is supplied in tape and reel packaging, enabling compatibility with automated pick-and-place assembly equipment to streamline manufacturing processes. Standard frequency of 6 MHz ensures reliable oscillation performance.
±30 ppm frequency tolerance provides stable frequency accuracy. Surface mount package type with 4 pins facilitates easy PCB integration. Compact 7 mm x 5 mm x 1.1 mm dimensions optimize PCB space usage. Wide operating temperature range (-40°C to 85°C) supports industrial applications.
Load capacitance of 12 pF supports various oscillator circuit designs. Series resistance of 110 Ω limits electrical losses and improves signal quality. RoHS compliant ensuring environmental safety standards adherence. Supplied in tape and reel packaging for automated assembly.
This 6 MHz crystal unit is ideal for precision timing and frequency control in industrial electronics, communication systems, embedded devices, and instrumentation. Its surface mount design enables integration in modern compact PCB layouts.
Explore the wide range of Crystal Units available on EnvMart to find components suited for your electronic design and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The standard frequency of this crystal unit is 6 MHz, ensuring reliable oscillation performance.
This model has dimensions of 7 mm in length, 5 mm in width, and 1.1 mm in height, making it compact for PCB applications.
The load capacitance of this crystal unit is 12 pF, which supports various oscillator circuit designs.
The series resistance is rated at 110 Ω, which limits electrical losses and improves signal quality.
It operates reliably over a temperature range of -40°C to 85°C, suitable for various industrial applications.
The product is supplied in tape and reel packaging, facilitating automated assembly processes.
This model uses a surface mount package type with 4 pins, allowing for easy integration onto PCBs.
Yes, it is RoHS compliant, adhering to environmental safety standards for electronic components.
This crystal unit belongs to the C7S series, which is designed for high precision applications.
It is suitable for precision timing and frequency control in industrial electronics, communication systems, and embedded devices.
This model features a pin count of 4, which is typical for surface mount applications.
The series resistance of 110 Ω helps to limit electrical losses, thereby improving the overall signal quality of the output.
