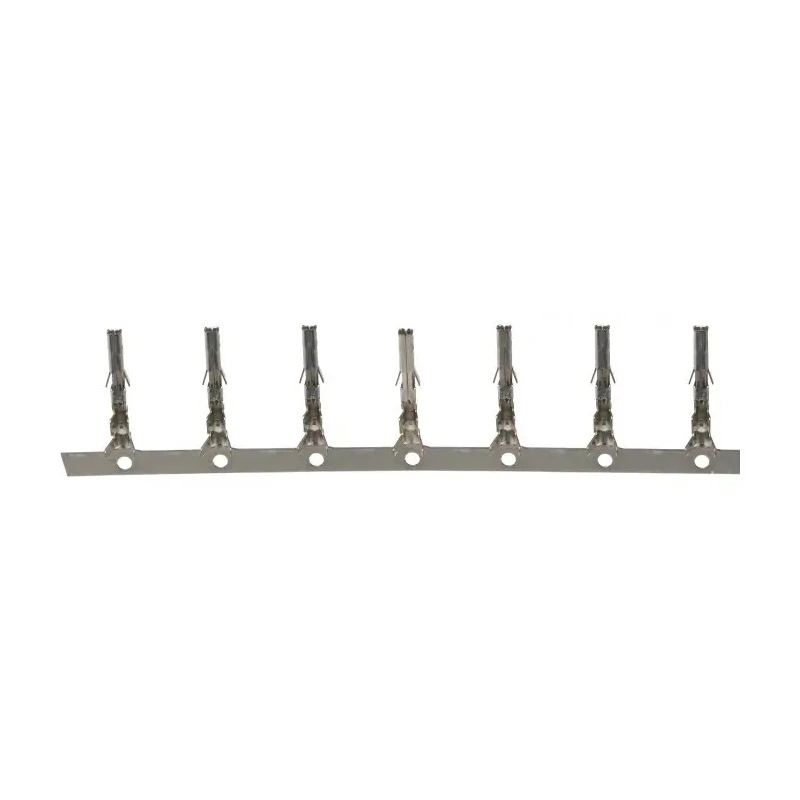

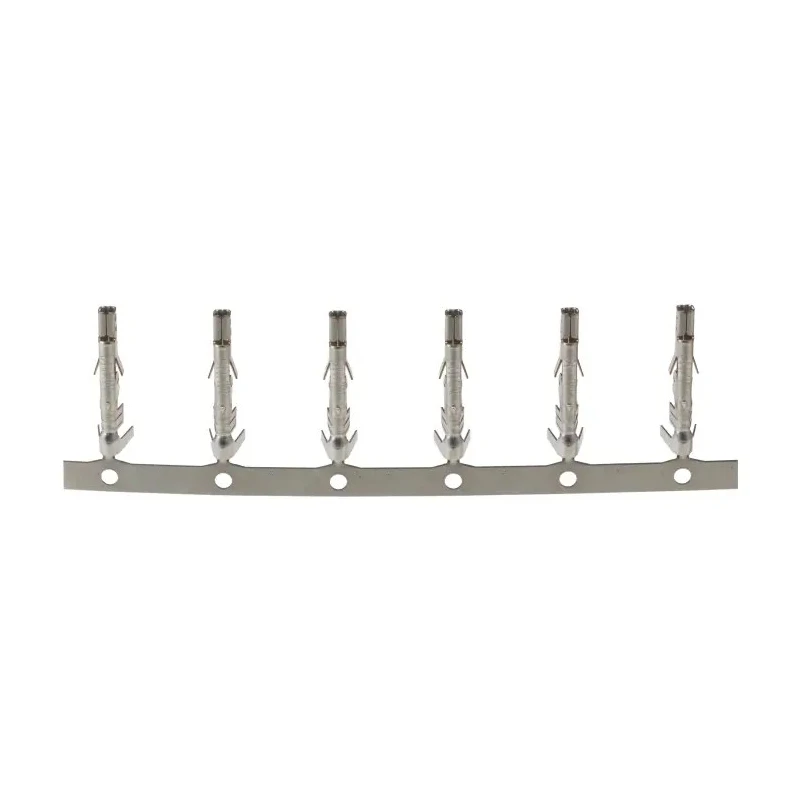

Molex 5556 Series Female Crimp Terminal 22 AWG Min, 16 AWG Max, Tin Plated Phosphor Bronze 39-00-0079
Specifications
| Country of Origin | United States |
|---|---|
| Brand | Molex |
| Current | 9A |
| Gender | Female |
| Contact Material | Phosphor Bronze |
| Series | 5556 |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| For Use With | Mini-Fit Jr, Mini-Fit TPA and Mini-Fit BMI Connector Housings |
| Contact Plating | Tin |
| Maximum Wire Size mm² | 1.3mm² |
| Minimum Wire Size AWG | 22AWG |
| Maximum Wire Size AWG | 16AWG |
| Maximum Contact Resistance | 10mΩ |
Key Features
- Constructed from phosphor bronze for excellent electrical conductivity.
- Features tin plating to enhance corrosion resistance.
- Supports a maximum current rating of 9A for power applications.
- Designed for use with Mini-Fit Jr, Mini-Fit TPA, and Mini-Fit BMI connector housings.
- Operates reliably in temperatures ranging from -40°C to 105°C.
- Provides crimp termination for secure and durable connections.
- Capable of withstanding up to 30 mating cycles for long-lasting use.
Product Description
Molex 39-00-0079 is a Female Crimp Terminal from the 5556 Series, engineered for reliable electrical and power connections. It features a crimp termination method that provides a secure bond essential for high-performance applications in industrial, electrical, and electronic systems.
Manufactured from tin-plated phosphor bronze, this terminal ensures excellent conductivity and corrosion resistance. It supports a maximum current of 9A and can operate within a temperature range from -40°C to 105°C, making it suitable for demanding environmental conditions.
This terminal is compatible with Mini-Fit Jr, Mini-Fit TPA, and Mini-Fit BMI connector housings, facilitating wire-to-board and wire-to-wire connections critical for power distribution systems. Its design accommodates wire sizes from 22 AWG minimum to 16 AWG maximum (1.3 mm²), supporting efficient electrical performance.
Durability is enhanced with a capacity to withstand up to 30 mating cycles, ensuring long service life in repeated-use applications. The crimp termination technique provides vibration-resistant, stable connectivity, preferred in industrial automation, manufacturing, and electrical control panel assembly.
Constructed from phosphor bronze for excellent electrical conductivity. Tin plating improves corrosion resistance. Supports 9A current rating for various power applications. Compatible with Mini-Fit Jr, TPA, and BMI housings.
Wide operating temperature range of -40°C to 105°C. Secure crimp termination method for reliable connections. Designed to endure 30 mating cycles.
This product is ideal for electronic component assemblies, industrial automation wiring, HVAC control systems, and manufacturing equipment that require robust and dependable wire termination solutions. The 5556 Series terminal ensures consistent electrical performance and mechanical reliability.
Browse the Electronics Components category on EnvMart for compatible connectors and other crimp contact solutions from Molex and other leading brands.
Explore more products in our Crimp Contacts category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating for this female crimp terminal is 9A, suitable for various power applications.
This terminal supports wire sizes from 22 AWG minimum to 16 AWG maximum, accommodating up to 1.3 mm².
It is constructed from phosphor bronze and features tin plating to enhance electrical conductivity and corrosion resistance.
This model is designed for use with Mini-Fit Jr, Mini-Fit TPA, and Mini-Fit BMI connector housings.
The terminal operates reliably in temperatures ranging from -40°C to 105°C.
It is capable of withstanding up to 30 mating cycles, ensuring long-lasting use in repeated applications.
The terminal uses a crimp termination method, providing a secure and stable connection.
The maximum contact resistance for this terminal is 10 mΩ, ensuring efficient electrical performance.
The country of origin for this terminal is the United States.
It is ideal for electronic component assemblies, industrial automation wiring, HVAC control systems, and manufacturing equipment.
This crimp terminal is female, designed for secure connections in various applications.
The tin plating enhances corrosion resistance, contributing to the terminal's reliability in various environments.
