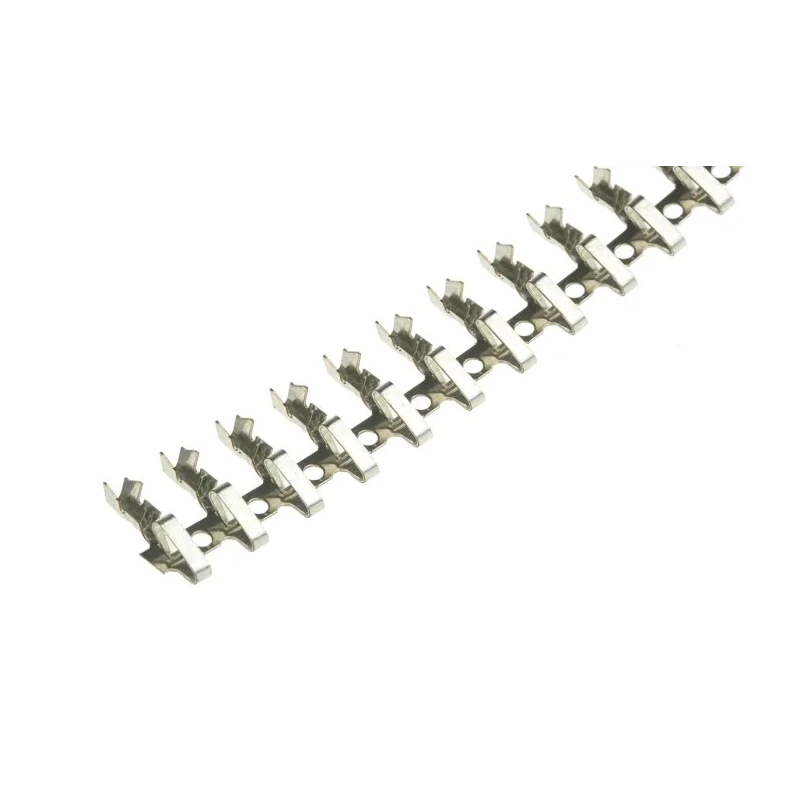

Molex 2478 Series Female Crimp Terminal, 24 AWG Min Crimp, 18 AWG Max, 7A, Tin Plating, Phosphor Bronze Contact 08-52-0071

Molex 08-52-0071 Female Crimp Terminal is engineered for use with KK 396 Connector Housing, designed to provide robust electrical connections with a current rating of 7A. The terminal supports wire sizes ranging from 24 AWG minimum to 18 AWG maximum, suitable for various industrial and electronic applications.

The contacts are made of phosphor bronze, selected for excellent conductivity, mechanical strength, and corrosion resistance. The tin plating further enhances the surface conductivity and provides protection against oxidation, ensuring long-term reliability.

This crimp terminal features a dual cantilever design with a square post contact mechanism that maintains effective spring-like contact with the male pin header. A locking tang prevents back out once loaded into the housing, enhancing mechanical stability.

Operating temperature spans from 0°C to 75°C, making it appropriate for industrial, consumer electronics, automotive, communications, medical, data computing, and networking uses. Its low maximum contact resistance of 6 milliohms minimizes power loss and signal degradation.

The 08-52-0071 model is manufactured in India and conforms to quality and performance expectations for industrial electronic connectors. It is supplied on a reel format, designed for automated insertion in manufacturing lines, improving assembly efficiency.

Compatible with KK 396 Connector Housing for easy installation. Supports 7A current for reliable electrical throughput. Phosphor bronze contact material ensures durability and corrosion resistance. Tin plating enhances conductivity and protects contacts.

Operating temperature range from 0°C to 75°C suitable for diverse environments. Dual cantilever design ensures secure spring-like electrical contact. Locking tang prevents terminal back out improving mechanical stability.

Low maximum contact resistance of 6 milliohms reduces power loss. Supplied on reel for efficient automated assembly processes. Explore a wide selection of electronic connectors and components at EnvMart for industrial, automotive, and consumer electronics applications.
