| Country of Origin | China |
|---|---|
| Brand | Molex |
| Current | 9A |
| Gender | Female |
| Contact Material | Brass |
| Series | 5556 |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| For Use With | 44516 Mini-Fit BMI Slide and Lock Panel Mount, 5557 Mini-Fit Jr. Receptacle Housing, Mini-Fit BMI Panel Mount Receptacle Housing |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.2mm² |
| Maximum Wire Size mm² | 0.8mm² |
| Minimum Wire Size AWG | 24AWG |
| Maximum Wire Size AWG | 18AWG |
| Maximum Contact Resistance | 10mΩ |

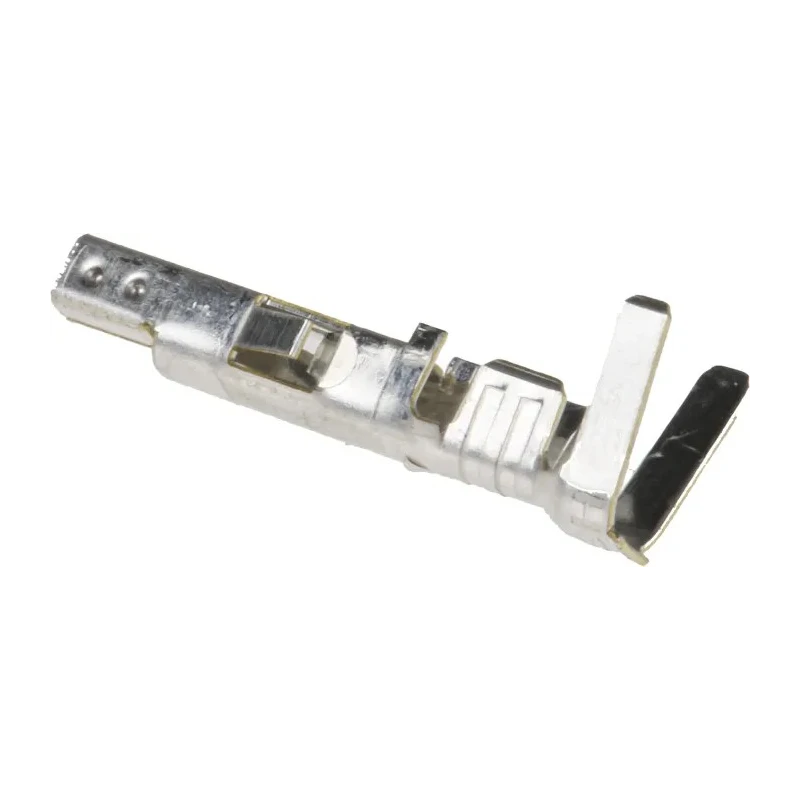

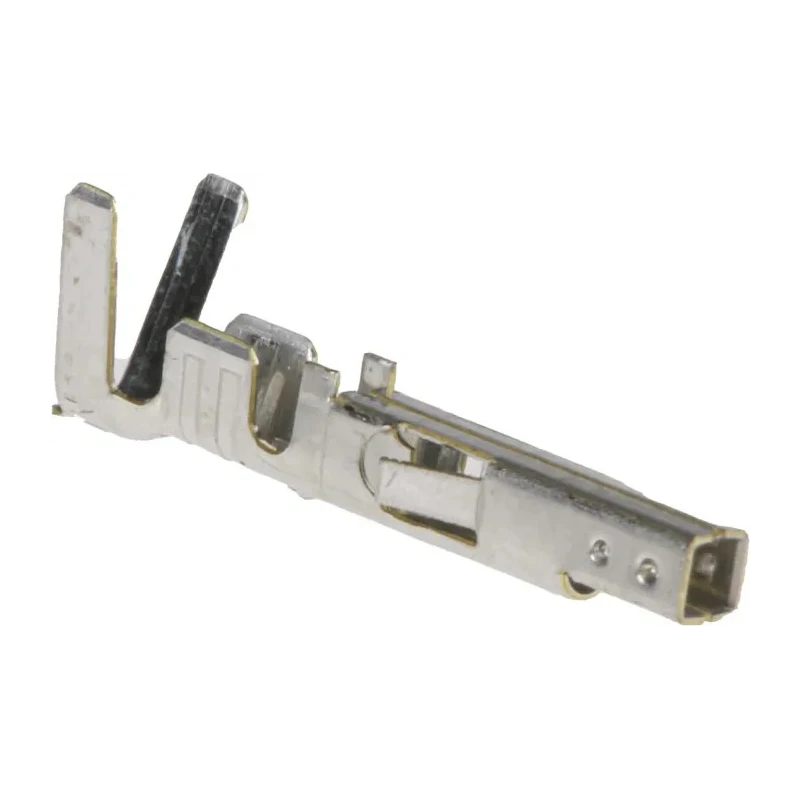

Molex 5556 Series Female Crimp Terminal 39-00-0038 is designed to make secure and enduring electrical connections in industrial, medical, automotive, and networking equipment requiring reliable performance at 9A current load. The tin-plated brass contact material ensures excellent conductivity and corrosion resistance, ideal for harsh operating conditions.
This crimp terminal accommodates wire sizes from 24 AWG minimum to 18 AWG maximum, fitting precisely into Mini-Fit and Mini-Fit Jr. plug and receptacle housings such as 44516 Mini-Fit BMI Slide and Lock Panel Mount and 5557 Mini-Fit Jr. receptacle housing. Locking tangs prevent accidental disconnection by firmly fixing the contact inside the connector housing, ensuring a vibration and shock-resistant assembly.
With a maximum operating temperature of 105°C and minimum of -40°C, this terminal is suitable for a wide range of industrial applications including automotive systems, industrial automation, medical equipment, communications, and networking devices.
The crimp termination method provides strong mechanical and electrical connections without the use of solder or alloy fillers, improving reliability and avoiding potential failure points. The low maximum contact resistance of 10 milliohms ensures efficient electrical performance with minimal losses.
Constructed with tin-plated brass contact material for conductivity and corrosion resistance. Compatible with Mini-Fit BMI and Mini-Fit Jr. housings providing connection flexibility. Wide operating temperature range of -40°C to 105°C supports harsh industrial environments.
Locking tangs secure the terminal within the connector preventing slippage. Designed for wire sizes 24 to 18 AWG supporting common industrial wiring standards. This product is RoHS compliant and meets environmental regulations related to chemical safety and low halogen content, limiting hazardous emissions in case of fire exposure.
Explore more quality reliable electrical connectors and accessories in the Molex range available through EnvMart for your industrial and electronic component needs.
