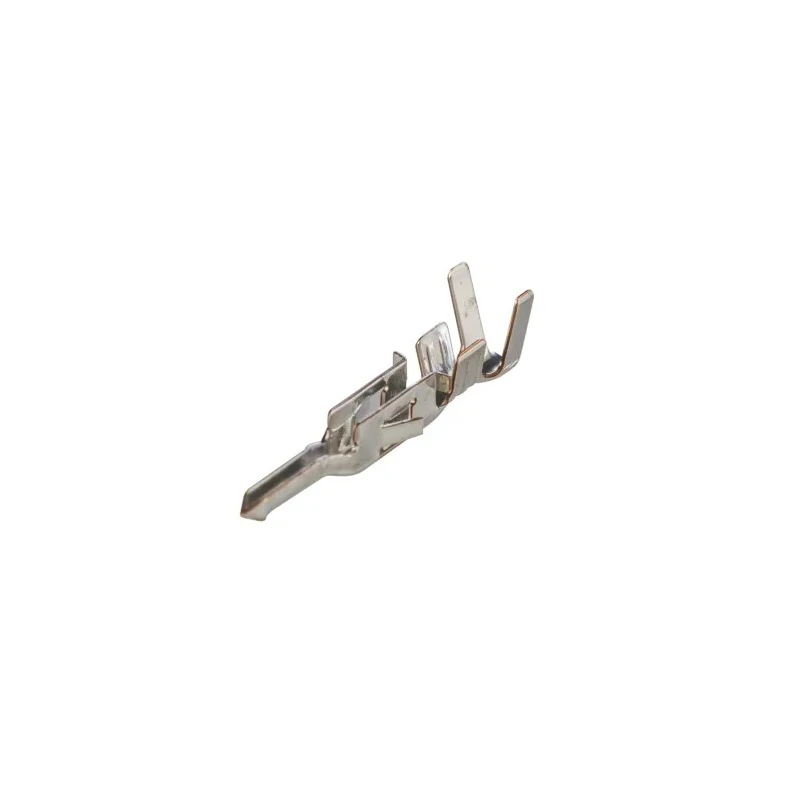

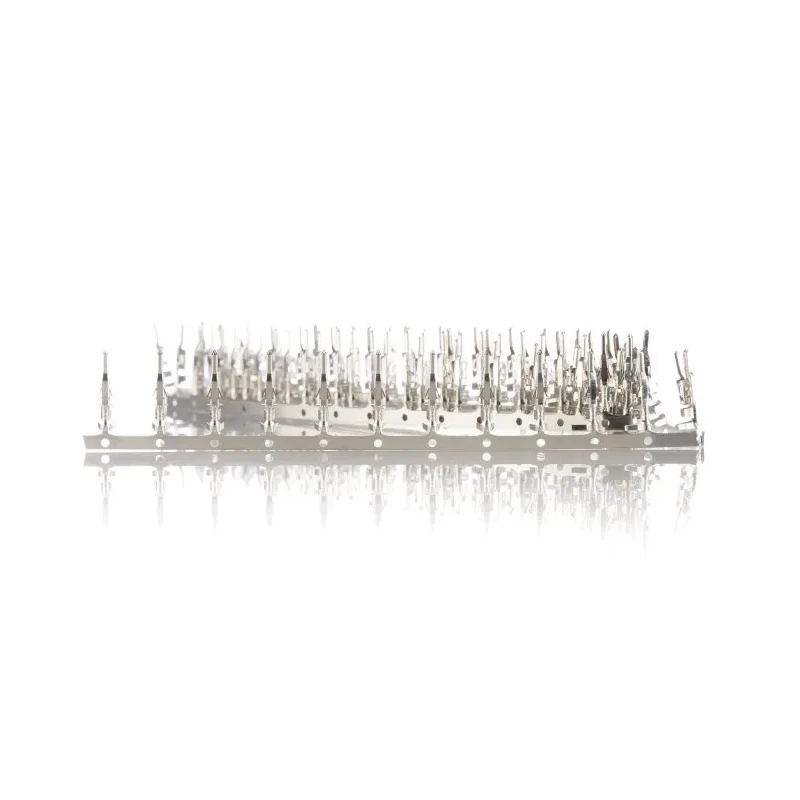

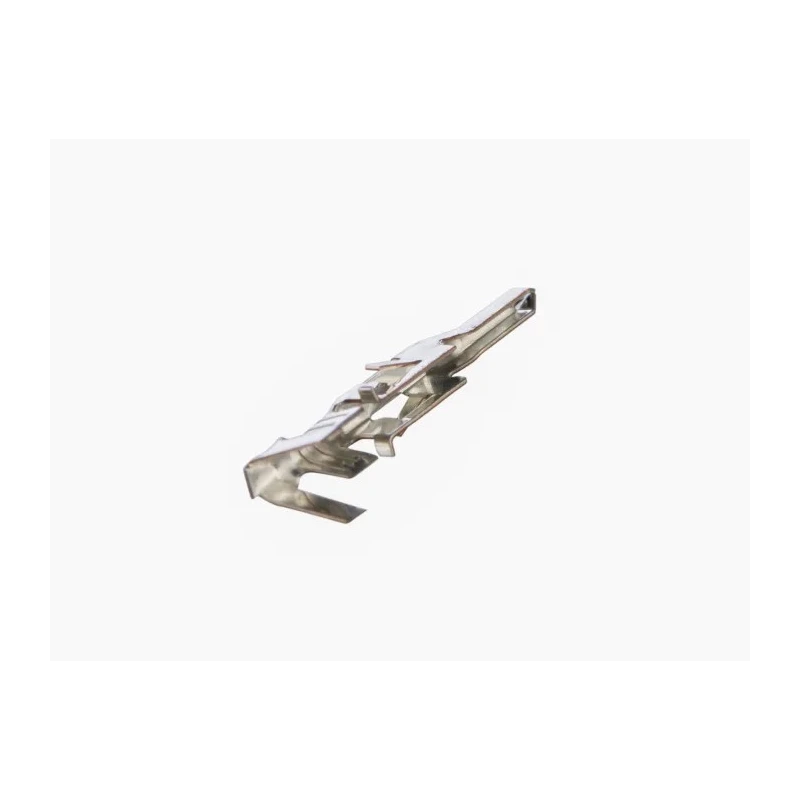

Molex 5558 Series Male Crimp Terminal 22 AWG Min Crimp 16 AWG Max Rated 9A Current Tin Plated Phosphor Bronze 39-00-0083
Specifications
| Country of Origin | India |
|---|---|
| Brand | Molex |
| Current | 9A |
| Gender | Male |
| Contact Material | Phosphor Bronze |
| Series | 5558 |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| For Use With | Mini-Fit Jr Connector Housing |
| Contact Plating | Tin |
| Maximum Wire Size mm² | 1.3mm² |
| Minimum Wire Size AWG | 22AWG |
| Maximum Wire Size AWG | 16AWG |
| Maximum Contact Resistance | 10mΩ |
Key Features
- Compatible with Mini-Fit Jr connector housings for versatile electronic applications.
- Tin plating on phosphor bronze contacts ensures reliable conductivity and corrosion resistance.
- Supports operation temperatures from -40°C to 105°C for harsh environmental performance.
- Crimp termination type provides a secure and efficient wire connection.
- Low contact resistance of 10mΩ minimizes energy loss and enhances electrical reliability.
- Designed for use in power distribution and wire-to-wire connections within electronic and mechanical assemblies.
- Suitable for use with extraction and crimp tools specifically for Mini-Fit Jr terminals.
Product Description
Molex 39-00-0083 5558 Series Male Crimp Terminal is designed for use with Mini-Fit Jr connector housings, accommodating wire sizes from 22 AWG minimum to 16 AWG maximum and supporting a current rating of 9A. The terminal features phosphor bronze contacts with tin plating, providing excellent conductivity and corrosion resistance to ensure durability in demanding environments.
This crimp terminal operates reliably across a temperature range from -40°C to 105°C, making it suitable for applications in industrial electronics, power distribution, automation systems, and mechanical electrical assemblies. The crimp termination type ensures a secure wire connection that withstands vibration and mechanical stress.
With a low contact resistance of 10mΩ, this terminal helps reduce energy losses and maintain stable electrical performance. It is designed for seamless integration with Mini-Fit Jr plug housings and can be installed using dedicated crimping and extraction tools to guarantee proper connection strength.
Compatibility with Mini-Fit Jr connector housings allows for flexible use in various electronic assemblies. Tin plated phosphor bronze contacts enhance corrosion resistance and electrical conductivity. Wide operating temperature range from -40°C to 105°C supports harsh environmental use.
Crimp termination type ensures reliable and durable wire connections. Low contact resistance of 10mΩ reduces electrical losses. Suitable for power distribution, automation, and mechanical assembly applications. Installation compatible with specialized crimp and extraction tools for Mini-Fit Jr terminals.
This product is ideal for industrial, commercial, and electrical manufacturing applications requiring robust wire termination solutions. Explore the Electronics Components category on EnvMart to find compatible connectors and accessories.
Explore more products in our Crimp Contacts category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a current rating of 9A, making it suitable for various electronic applications requiring reliable power distribution.
It accommodates wire sizes from 22 AWG minimum to 16 AWG maximum, allowing for flexible use in different applications.
The terminal operates reliably across a temperature range from -40°C to 105°C, suitable for harsh environmental conditions.
The contacts are made of phosphor bronze and are tin plated, which enhances conductivity and corrosion resistance.
It is designed for use with Mini-Fit Jr connector housings, ensuring seamless integration in electronic assemblies.
This terminal features a low contact resistance of 10mΩ, which helps reduce energy losses and maintain stable electrical performance.
It utilizes a crimp termination type, providing a secure and efficient wire connection that can withstand mechanical stress.
Installation requires specialized crimping and extraction tools designed for Mini-Fit Jr terminals to ensure proper connection strength.
This model is suitable for power distribution, automation systems, and mechanical electrical assemblies, among other industrial applications.
The maximum wire size for this terminal is 1.3 mm², accommodating a range of wire gauges for various applications.
The Molex 5558 Series Male Crimp Terminal is manufactured in India, ensuring compliance with regional production standards.
Tin plating on the phosphor bronze contacts enhances conductivity and provides corrosion resistance, ensuring reliable performance in demanding environments.
