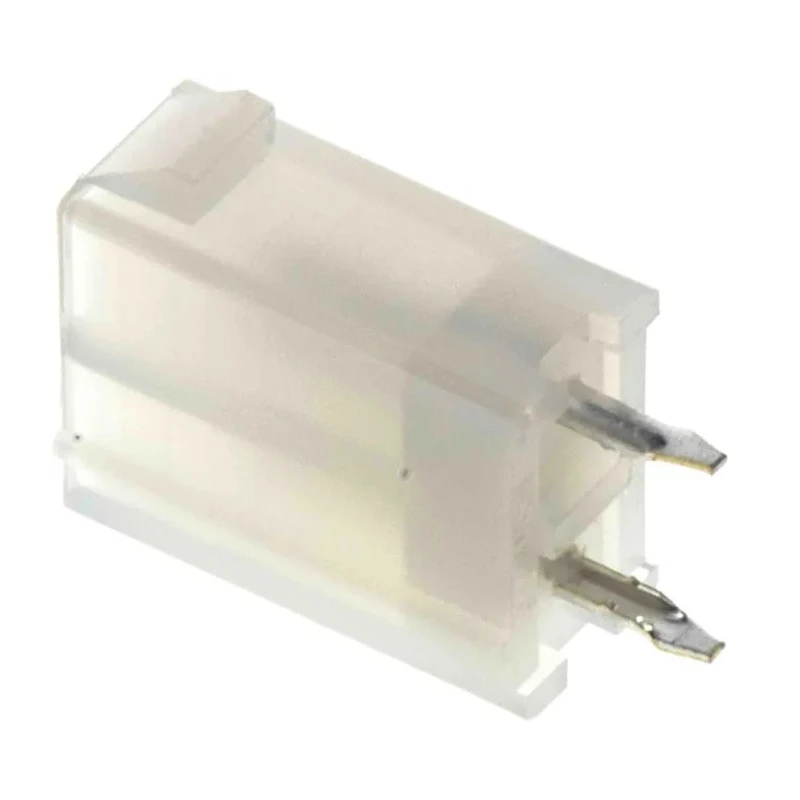

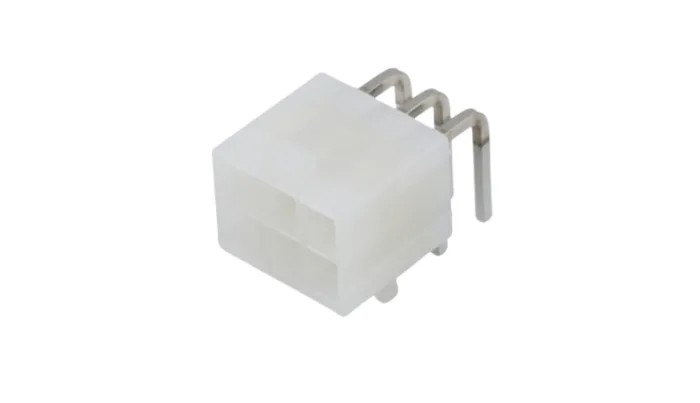

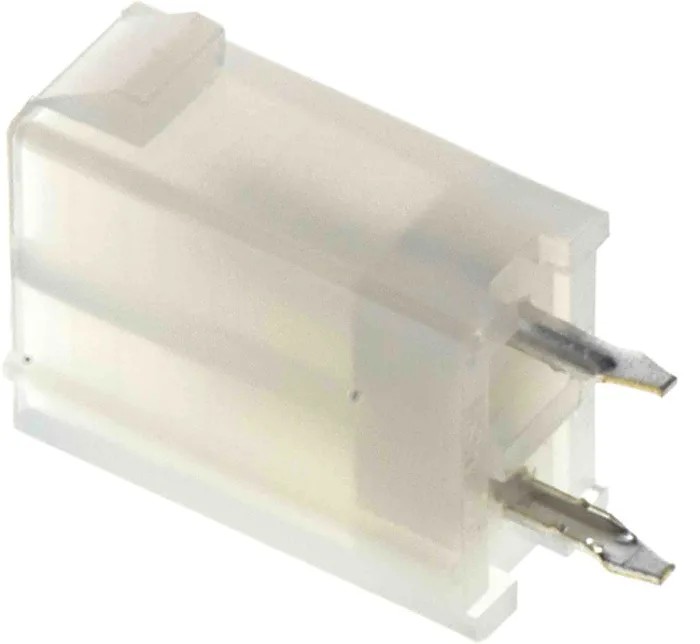

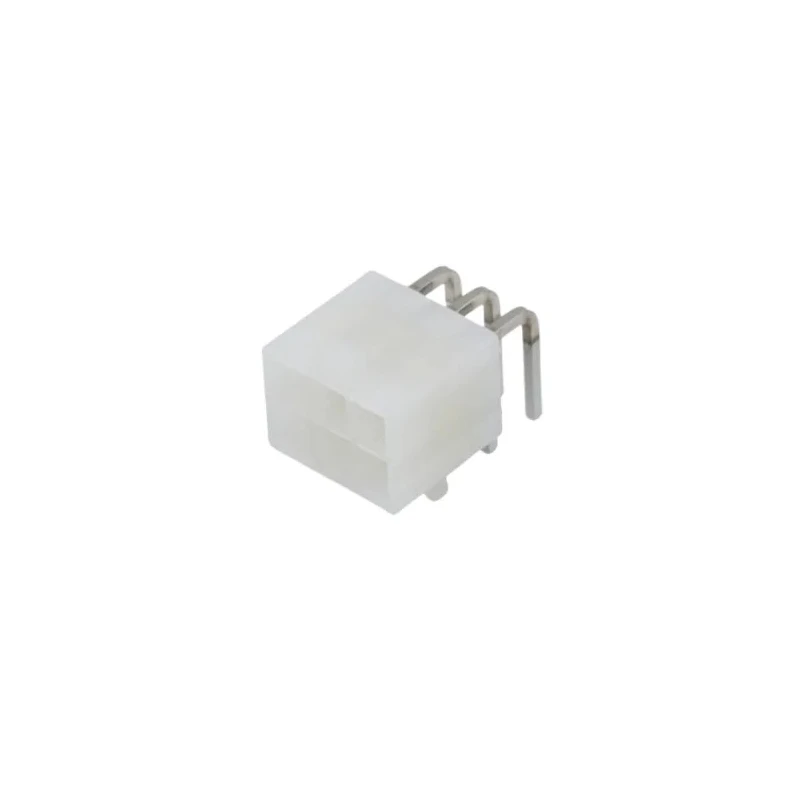

Molex 39301 Series Right Angle Through Hole PCB Header, Shrouded, 6 Contacts, 4.2 mm Pitch, 2 Row, 600V, 13A 39-30-1062
Specifications
| Country of Origin | Mexico |
|---|---|
| Voltage | 600V |
| Brand | Molex |
| Orientation | Right Angle |
| Current | 13 |
| Mount Type | Through Hole |
| Housing Material | Nylon |
| Contact Material | Brass |
| Series | 39301 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Pitch | 4.2mm |
| Contact Plating | Gold |
| Number of Contacts | 6 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
Key Features
- The shrouded design reduces misalignment risks during mating.
- Right-angle orientation allows space-saving PCB layouts.
- Brass contacts provide durable and reliable conduction.
- Gold plating enhances conductivity and corrosion resistance.
- Rated for 13A current per contact and 600V maximum voltage.
- Operates efficiently between -40°C and 105°C for diverse environmental conditions.
- Features solder termination for secure PCB integration.
- Includes dual rows with 6 male contacts.
Product Description
Molex 39-30-1062 is a high-performance PCB header connector from the 39301 series, offering reliable right-angle through-hole mounting with dual rows. With 6 shrouded male contacts spaced at 4.2 mm pitch, this connector is engineered for robust wire-to-board power applications.
The connector features durable brass contacts plated with gold for enhanced conductivity and corrosion resistance. It supports up to 13 amperes of current per contact and withstands voltages up to 600V, ensuring reliable electrical performance.
Designed for harsh operating environments, it functions effectively across a temperature range from -40°C to 105°C. The right-angle configuration facilitates compact PCB layouts, optimizing space in electrical and mechanical equipment designs.
This PCB header uses solder termination for secure and durable integration onto printed circuit boards. The shrouded housing helps prevent misalignment during mating, improving reliability in automated and manual assembly processes.
The shrouded design reduces misalignment risks during mating. Right-angle orientation allows space-saving PCB layouts. Brass contacts provide durable and reliable conduction. Gold plating enhances conductivity and corrosion resistance.
Rated for 13A current per contact and 600V maximum voltage. Operates efficiently between -40°C and 105°C for diverse environmental conditions. Features solder termination for secure PCB integration. Includes dual rows with 6 male contacts.
Suitable for wire-to-board applications in automotive, electrical, and industrial equipment.
This connector is widely used in automation systems, consumer electronics, and automotive applications where compact, reliable power connection solutions are essential. Its high durability and electrical ratings make it ideal for demanding industrial and commercial environments.
Explore further electronics components and PCB Headers at EnvMart to enhance your project with trusted industrial-grade parts.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum voltage rating for this PCB header is 600V.
This model is rated for 13A current per contact.
The contacts in this connector are spaced at a pitch of 4.2 mm.
It features solder termination for secure integration onto printed circuit boards.
It operates efficiently between -40°C and 105°C.
This PCB header has 6 male contacts arranged in dual rows.
The contacts are made of brass and are plated with gold for enhanced conductivity.
This model features a right-angle orientation, allowing for space-saving PCB layouts.
The housing material of this connector is nylon.
It is suitable for wire-to-board applications in automotive, electrical, and industrial equipment.
The connector system type is wire-to-board, designed for robust power applications.
The country of origin for this PCB header is Mexico.
