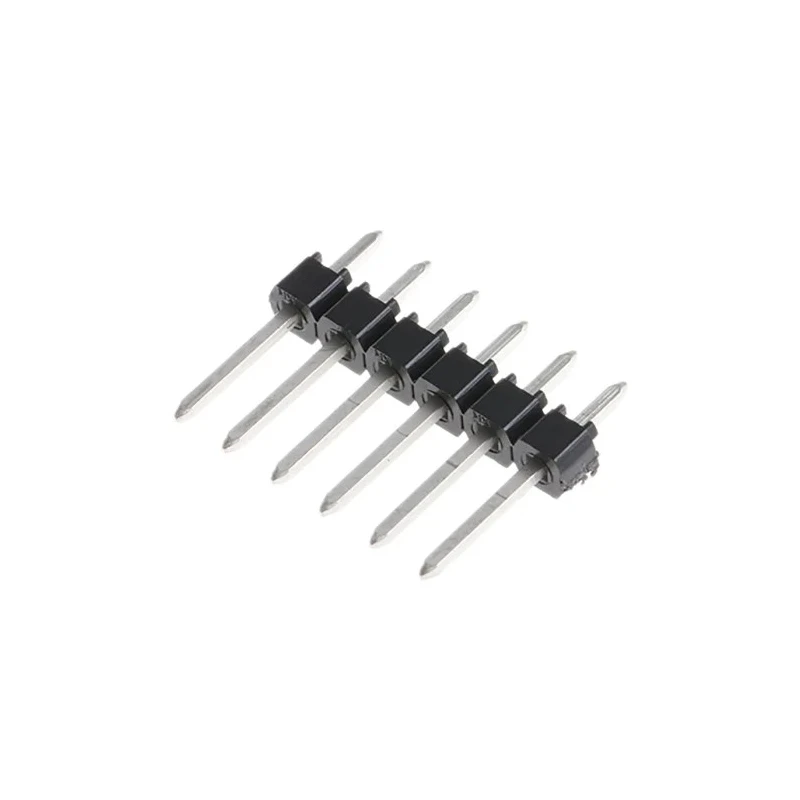

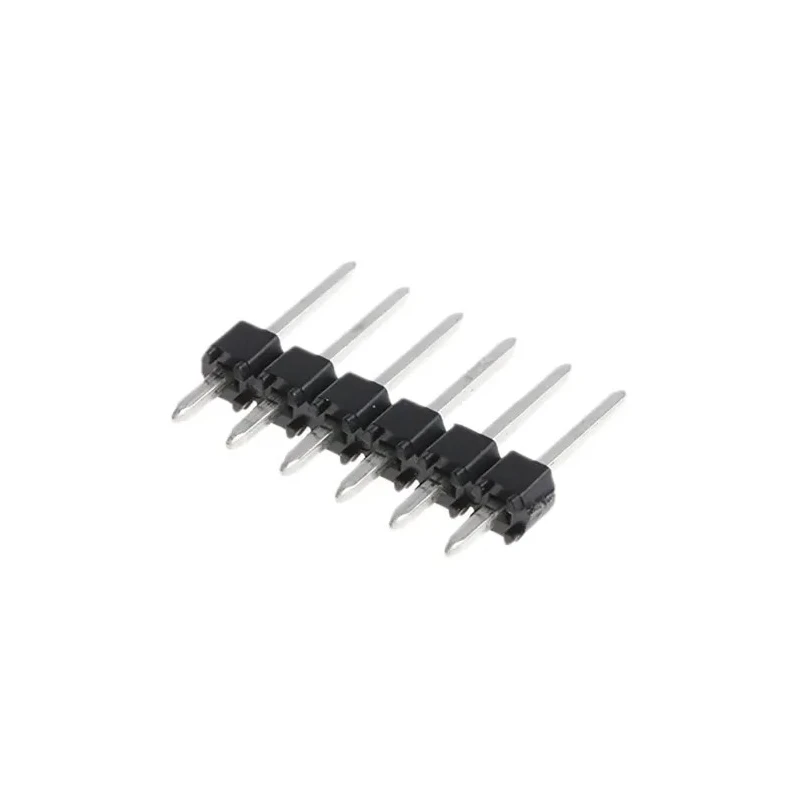

Molex C-Grid III Series Straight Through Hole Pin Header, 6 Contacts, 2.54 mm Pitch, 1 Row, Unshrouded 90120-0126
Specifications
| Country of Origin | Indonesia |
|---|---|
| Voltage | 350V |
| Brand | Molex |
| Orientation | Straight |
| Current | 3A |
| Mount Type | Through Hole |
| Housing Material | Polyester |
| Contact Material | Brass |
| Series | C-Grid III |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Contact Plating | Tin |
| Number of Contacts | 6 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Wire-to-Board |
| Tail Pin Length | 2.9mm |
| Mating Pin Length | 6.75mm |
Key Features
- Supports a current rating of 3 amperes for efficient power delivery.
- Constructed with a polyester housing offering durability and insulation.
- Brass contacts plated with tin ensure corrosion resistance and secure connections.
- Features a breakaway design that can be cut to size for design flexibility.
- Operates reliably within a temperature range from -55°C to 125°C.
- Mating pin length is 6.75 mm with a tail pin length of 2.9 mm for secure PCB soldering.
- Unshrouded and male contact gender suitable for wire-to-board connectivity.
- Designed for through-hole mounting on PCBs for mechanical stability.
Product Description
Molex 90120-0126 is part of the C-Grid III Series of straight through hole pin headers with 6 contacts arranged in a single row with a 2.54 mm pitch. This connector features an unshrouded design suitable for wire-to-board applications, providing reliable electrical connections with a 3A current capacity and 350 V voltage rating.
The housing is made from durable polyester material providing insulation and mechanical robustness. The brass contacts are tin-plated to prevent corrosion and ensure a high retention force for secure mating. The connector supports through-hole mounting, offering strong mechanical stability once soldered to the PCB.
Operating temperature ranges from -55°C to 125°C make it suitable for use in varying environmental conditions. The connectors feature a breakaway design allowing cutting to desired lengths to fit specific design requirements, enhancing flexibility during PCB assembly.
This pin header is ideal for industrial, computer, medical, telecommunications, and consumer electronics applications. Typical uses include desktop computers, servers, monitors, medical instrumentation, white goods, exchange stations, industrial equipment, and automotive safety electronics. The Molex C-Grid III Series supports secure and stable electrical connections essential in critical electronic assemblies.
Supports a current rating of 3 amperes for efficient power delivery. Polyester housing provides durable insulation. Brass contacts with tin plating resist corrosion. Breakaway design allows customization of connector length.
Wide operating temperature range from -55°C to 125°C. Pin lengths designed for solid PCB solder joints. Unshrouded male contacts for wire-to-board connection. Through-hole mount for mechanical stability on PCBs. Voltage rating up to 350 V suits diverse applications.
This Molex PCB Pin Header is a reliable choice for various industrial and commercial electronic manufacturing projects. Explore additional Molex connectors and accessories on EnvMart to fulfill your PCB interconnection requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It supports a current rating of 3 amperes, making it suitable for efficient power delivery in various applications.
The voltage rating is up to 350 volts, allowing it to be used in diverse electronic applications.
The housing is made from polyester, while the contacts are brass plated with tin to prevent corrosion.
It operates reliably within a temperature range from -55°C to 125°C, making it suitable for various environmental conditions.
This model features 6 contacts arranged in a single row with a 2.54 mm pitch.
It supports through-hole mounting, which provides mechanical stability once soldered to the PCB.
The mating pin length is 6.75 mm, designed for secure PCB soldering.
The tail pin length is 2.9 mm, which aids in creating solid solder joints on the PCB.
This model features an unshrouded design, suitable for wire-to-board connectivity.
It is ideal for use in industrial, computer, medical, telecommunications, and consumer electronics applications.
It uses a solder termination type, ensuring secure connections during PCB assembly.
The country of origin for this pin header is Indonesia.
