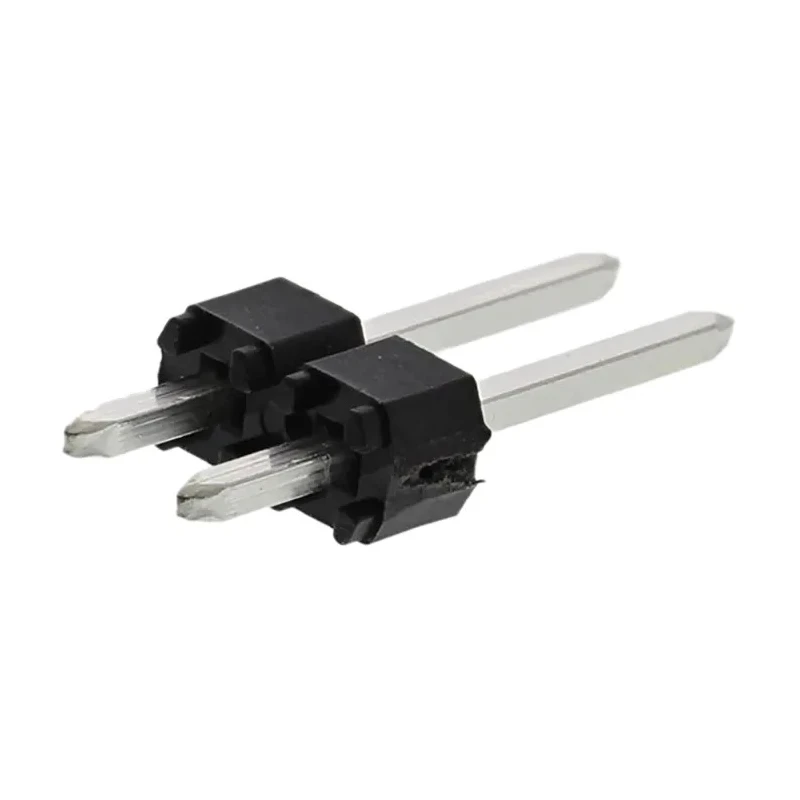

Molex C-Grid III Series Straight Through Hole Pin Header, 2 Contacts, 2.54 mm Pitch, 1 Row, Unshrouded 90120-0122
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 350V |
| Brand | Molex |
| Orientation | Straight |
| Current | 3A |
| Mount Type | Through Hole |
| Housing Material | Polyester |
| Contact Material | Brass |
| Series | C-Grid III |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Contact Plating | Tin |
| Number of Contacts | 2 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Wire-to-Board |
| Tail Pin Length | 2.9mm |
| Mating Pin Length | 6.75mm |
Key Features
- Designed for board to board and wire to board applications.
- Features a breakaway design for flexible length customization.
- Contacts have high retention force ensuring secure mating connections.
- High mechanical stability after soldering on the PCB.
- Made from brass contacts with tin plating for corrosion resistance.
- Polyester housing supports wide operating temperature range from -55°C to 125°C.
- Supports up to 3A current and 350V voltage rating.
- Straight orientation with through-hole mount type for ease of assembly.
Product Description
Molex 90120-0122 C-Grid III Series Straight Through Hole Pin Header is a high-quality PCB connector featuring a pitch of 2.54 mm, 2 contacts arranged in a single row, and an unshrouded design. This connector is engineered for industrial, medical, telecommunications, computer, and consumer electronic applications, providing reliable interconnection between boards and wire assemblies.
The pin header belongs to the C-Grid III series which is designed for robust retention, high mechanical stability post-soldering, and versatile application flexibility with its breakaway design. It is suitable for both board-to-board and wire-to-board setups, supporting currents up to 3 amperes and voltage ratings up to 350 volts. The polyester housing material ensures durability under a wide temperature range from -55°C to 125°C.
The brass contacts are plated with tin to prevent corrosion and ensure a dependable electrical connection. The connector has a straight, through-hole mount style with male contact gender. The tail pin length is 2.9 mm, and the mating pin length is 6.75 mm, standardizing connector interfacing. This unshrouded header offers design flexibility and is easy to integrate into various electronics systems.
Designed for board-to-board and wire-to-board interconnectivity. Breakaway design allows for cutting to custom lengths. High pin retention force for secure mating. Stable mechanical connection after soldering. Brass contact material with tin plating resists corrosion.
Polyester housing supports -55°C to 125°C operating temperature. Rated for 3A current at 350V. Straight orientation and through-hole mount type. Tail pin length of 2.9 mm and mating pin length of 6.75 mm. Unshrouded, male contact gender.
This connector series is widely used in industrial, computer, medical, telecommunications, consumer electronics, and automotive applications. Typical uses include desktop PCs, servers, monitors, medical equipment, industrial machinery, and automotive safety electronics.
Explore the Molex C-Grid III Series PCB Pin Headers for reliable, flexible, and high-performance interconnection solutions at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a voltage rating of up to 350 volts.
It is rated for a maximum current of 3 amperes.
The pitch size of this pin header is 2.54 mm.
The contacts are made from brass with tin plating, and the housing is made from polyester.
It supports an operating temperature range from -55°C to 125°C.
This connector features 2 contacts arranged in a single row.
The tail pin length is 2.9 mm.
The mating pin length is 6.75 mm.
It uses a through-hole mount type for ease of assembly.
The contact gender is male.
This connector is designed for both board-to-board and wire-to-board applications.
It belongs to the C-Grid III series.
