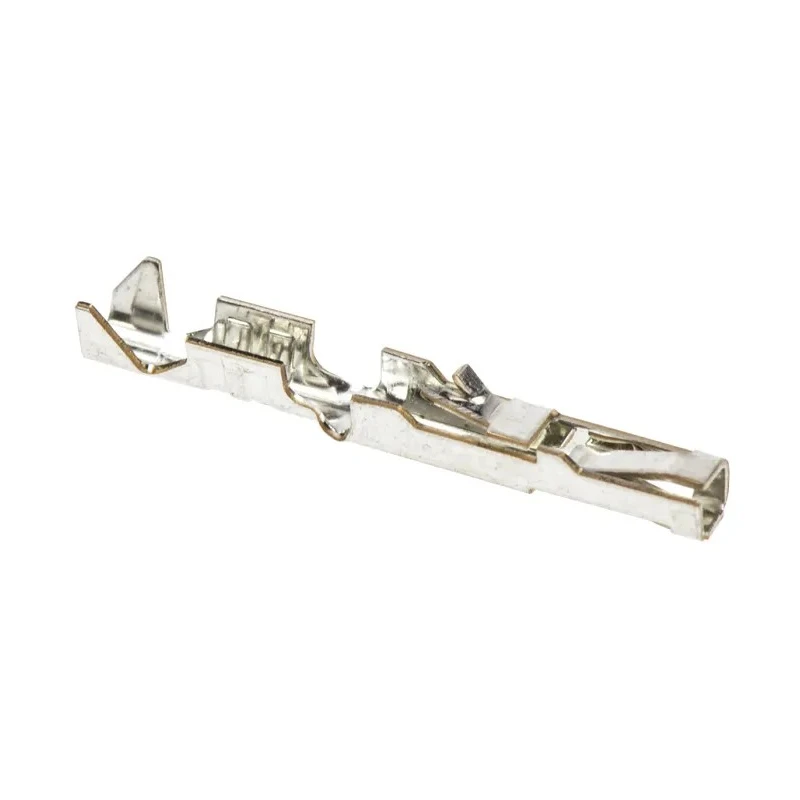

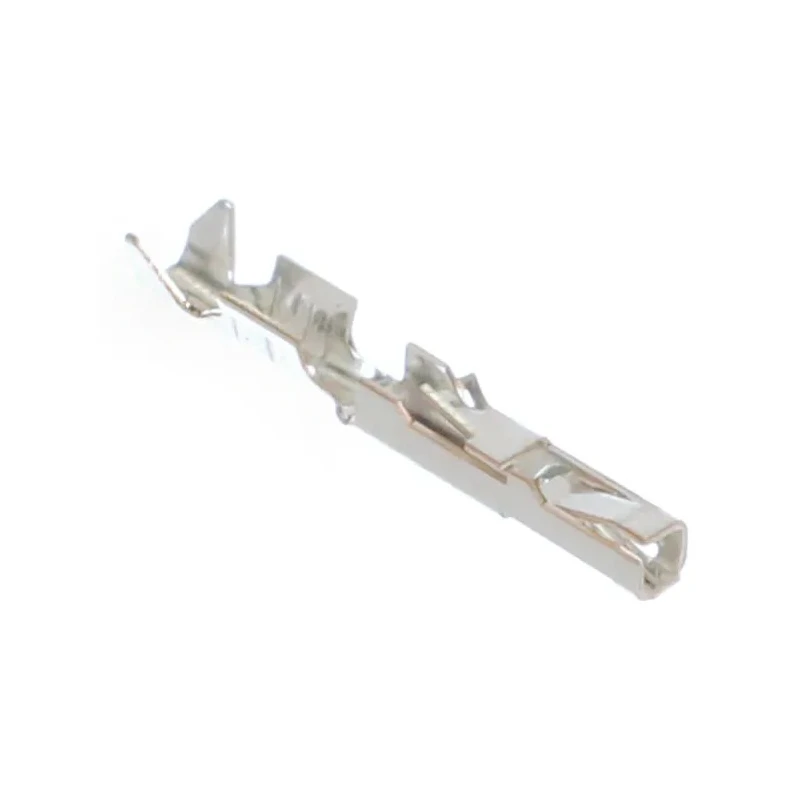

Molex Female Crimp Terminal for 24-22 AWG Wire, Phosphor Bronze with Tin Plating, 3A Current, 105°C Max Operating 90119-2109

Molex 90119-2109 Female Crimp Terminal is a precision-engineered component designed for reliable electrical connection with 24 to 22 AWG wires. This crimp terminal utilizes phosphor bronze contact material plated with tin to optimize electrical conductivity and corrosion resistance. The crimp design ensures a strong, gas-tight mechanical and electrical joint without requiring heat application, making installation faster and safer.

Rated for a maximum current of 3 amperes and capable of handling up to 350 volts AC, this terminal operates efficiently in demanding electrical applications while withstanding temperatures ranging from -55°C to 105°C. Its lightweight construction at 0.073 grams minimizes mechanical load on printed circuit boards, improving device longevity.

The terminal is specifically crafted for use with Molex C-Grid III connector housings, featuring a box design and uniform locking system for secure and versatile housing compatibility. Insulation headers are molded from 15% glass-filled polyester (PBT), and housings are made of polyphenylene oxide (PPO), offering durability and performance in industrial environments.

Recommended PCB hole diameter is 1 mm, suitable for header pin sizes of 0.64 square millimeters. The terminal's robust construction and precision make it ideal for applications in automated assembly lines, breweries, pharmaceutical manufacturing, and consumer electronics.

Constructed from phosphor bronze with tin plating for reliable conductivity and corrosion resistance. Crimp termination provides secure, gas-tight connections without heat. Compatible with C-Grid III housings ensuring secure lock and fit.

Lightweight at 0.073 grams minimizing stress on circuit boards. Rated for 3 Amp current and 350 Volt maximum voltage. Operating temperature range from -55°C to 105°C supports various industrial environments. Uses durable insulation headers of glass-filled polyester and polyphenylene oxide housings.

Ideal for automated production, pharmaceutical, and brewery sectors. Recommended PCB hole diameter is 1 mm with header pin size of 0.64 square mm. This product is new and made in India. Explore more high-quality electronic components and connectors at EnvMart for your industrial and manufacturing needs.
