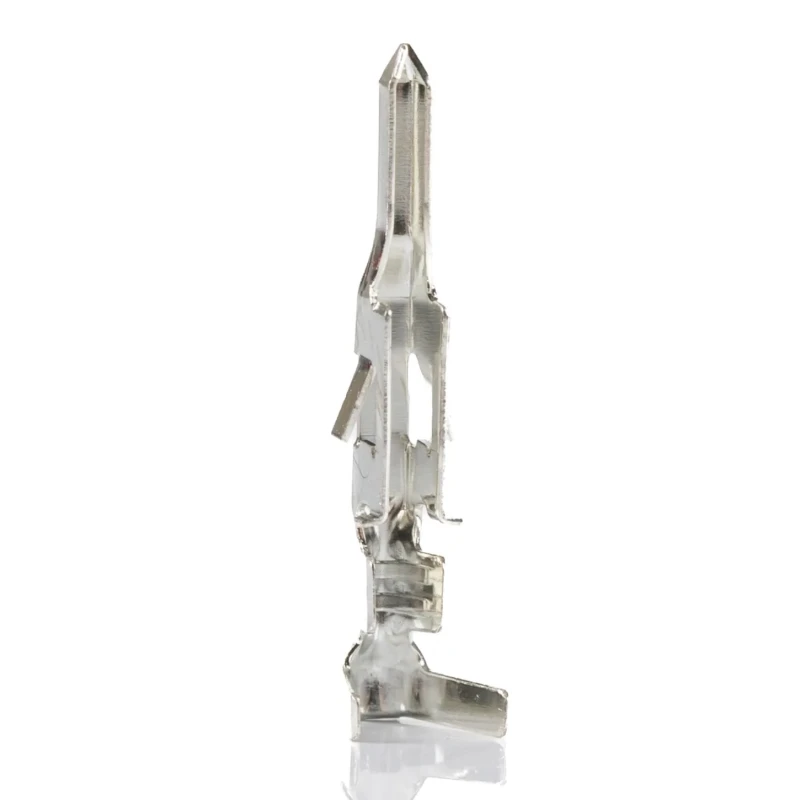

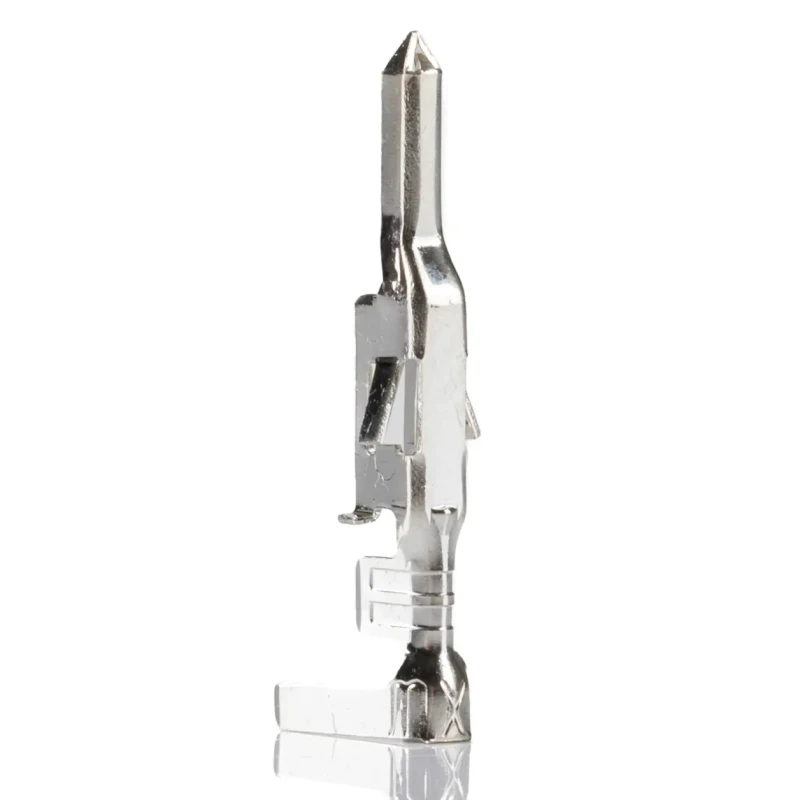

Molex 5558 Series Male Crimp Terminal 9A Current, 24-18 AWG Wire Size 39-00-0121
Specifications
| Country of Origin | United States |
|---|---|
| Brand | Molex |
| Current | 9A |
| Gender | Male |
| Contact Material | Brass |
| Series | 5558 |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| For Use With | Mini-Fit TPA and Mini-Fit BMI Connector Housings, Mini-Fit Jr |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.2mm² |
| Maximum Wire Size mm² | 0.8mm² |
| Minimum Wire Size AWG | 24AWG |
| Maximum Wire Size AWG | 18AWG |
| Maximum Contact Resistance | 10mΩ |
Key Features
- Constructed with tin-plated brass contacts for excellent conductivity.
- Features locking tangs for secure connection and resistance to vibration.
- Suitable for operating temperatures ranging from -40°C to 105°C.
- Maximum contact resistance capped at 10 milliohms ensuring low electrical loss.
- Compatible with Mini-Fit TPA, BMI, and Mini-Fit Jr. connector housings.
- Rated for maximum voltage of 600V AC for industrial and automotive use.
- Corrosion-resistant materials enhance longevity in harsh environments.
Product Description
Molex 39-00-0121 Male Crimp Terminal from the 5558 Series is engineered for use with Mini-Fit connector housings including TPA, BMI, and Mini-Fit Jr. It supports wire sizes from 24 AWG minimum up to 18 AWG maximum and carries a current rating of 9A. This crimp terminal is constructed from brass with a tin plating finish, ensuring dependable electrical conductivity and corrosion resistance.
The terminal includes durable locking tangs that secure the connection within the connector housing, providing stability against heavy vibrations encountered in industrial and automotive applications. Its design allows for a maximum contact resistance of 10 milliohms, contributing to efficient electrical performance.
This product operates reliably in temperature extremes ranging from -40°C to +105°C, suitable for various harsh environmental conditions. The molecule crimp terminal supports a maximum voltage rating of 600V AC, making it appropriate for numerous electrical power and control applications.
Applications include automotive components, industrial automation systems, communications networks, and consumer electronics. Its robust design and high performance meet the demands of industrial, manufacturing, and commercial electronic assembly operations.
Key features include multiple points of contact for reliable electrical connections, secure locking tangs for terminal retention, and compatibility with a range of Mini-Fit series connector housings.
Constructed with tin-plated brass contacts for excellent conductivity. Features locking tangs for secure connection and resistance to vibration. Suitable for operating temperatures ranging from -40°C to 105°C. Maximum contact resistance capped at 10 milliohms ensuring low electrical loss.
Compatible with Mini-Fit TPA, BMI, and Mini-Fit Jr. connector housings. Rated for maximum voltage of 600V AC for industrial and automotive use. Corrosion-resistant materials enhance longevity in harsh environments. Explore more Molex Crimp Contacts and related electronic components on EnvMart for your project needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating for this crimp terminal is 9A.
This model is compatible with wire sizes ranging from 24 AWG to 18 AWG.
The terminal is rated for a maximum voltage of 600V AC.
It is constructed from brass with a tin plating finish for enhanced conductivity and corrosion resistance.
This crimp terminal operates reliably within a temperature range of -40°C to +105°C.
It features durable locking tangs that secure the connection within the connector housing, providing resistance to vibration.
The maximum contact resistance is capped at 10 milliohms, ensuring low electrical loss.
It is compatible with Mini-Fit TPA, Mini-Fit BMI, and Mini-Fit Jr. connector housings.
Applications include automotive components, industrial automation systems, communications networks, and consumer electronics.
The termination type for this terminal is crimp.
This crimp terminal is manufactured in the United States.
The gender of this crimp terminal is male.
