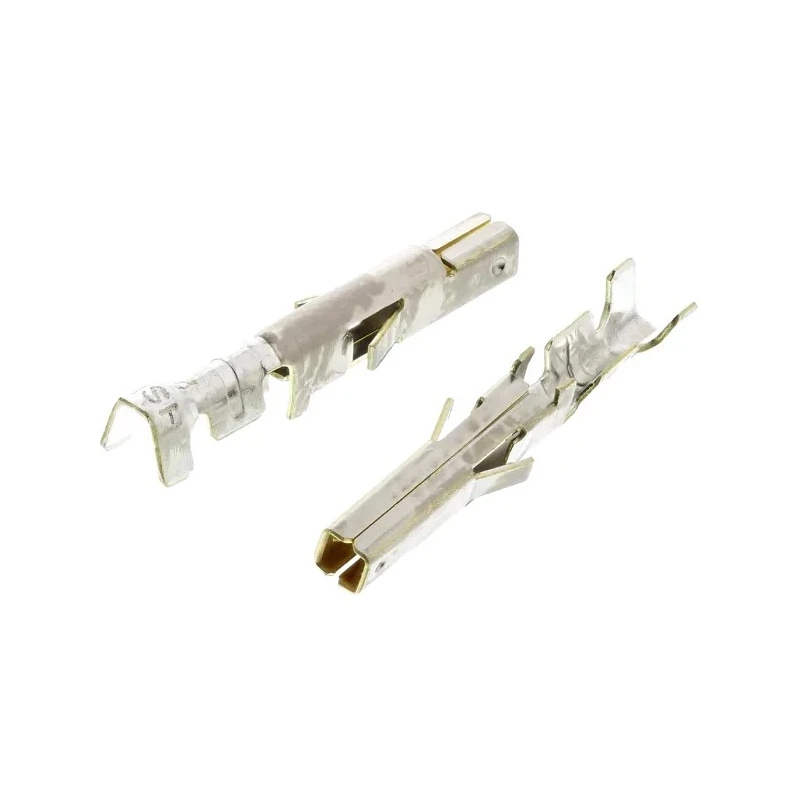

Molex Female Crimp Terminal Mini-Fit Jr Housing 9A, 28 AWG Min, 22 AWG Max 39-00-0435
Specifications
| Country of Origin | India |
|---|---|
| Brand | Molex |
| Current | 9A |
| Gender | Female |
| Contact Material | Brass |
| Series | 5556 |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| For Use With | Mini-Fit Jr Connector Housing |
| Contact Plating | Gold |
| Minimum Wire Size mm² | 0.08mm² |
| Maximum Wire Size mm² | 0.35mm² |
| Minimum Wire Size AWG | 28AWG |
| Maximum Wire Size AWG | 22AWG |
| Maximum Contact Resistance | 20mΩ |
Key Features
- Constructed with brass contact material and gold plating for reliable conductivity.
- Operates efficiently between -40°C to 105°C temperature range.
- Features locking tangs for secure connection within the housing.
- Multiple contact points enhance electrical connection quality.
- Suitable for applications in automotive, industrial, medical, and networking sectors.
- Termination type is crimp ensuring fast, reliable wire termination.
- Maximum contact resistance is 20 milliohms to ensure low power loss.
- Compatible specifically with Mini-Fit Jr connector housings.
Product Description
Molex 39-00-0435 is a female crimp terminal designed for use with Mini-Fit Jr connector housings, rated for a current of 9A and compatible with wire sizes from 28 AWG minimum to 22 AWG maximum. This crimp terminal features brass contact material with gold plating, providing excellent electrical conductivity and resistance to corrosion.
Operating effectively in a temperature range from -40°C up to 105°C, the terminal is designed to withstand industrial and automotive environmental conditions. Locking tangs ensure a secure fit within the Mini-Fit Jr housing, providing mechanical stability and preventing accidental disconnection.
The multiple points of contact improve connection reliability and current carrying capability, making it suitable for demanding applications such as industrial automation, medical equipment, communications, and consumer electronics. The crimp termination allows for efficient and reliable wire connection, ensuring consistent performance.
This product does not include any additional certifications and complies with standard manufacturing quality for electronic connector components. Its maximum contact resistance of 20 milliohms guarantees minimal voltage drop and increased efficiency in electrical circuits.
Molex's 39-00-0435 female crimp terminal is a specialized connector component integral to the Mini-Fit Jr series, trusted for engineered precision and durability in electrical connectivity tasks. It supports a wide range of industrial and commercial applications requiring secure and stable wire connections.
Constructed with brass contact material and gold plating for reliable conductivity. Operates efficiently between -40°C to 105°C temperature range. Features locking tangs for secure connection within the housing. Multiple contact points enhance electrical connection quality.
Suitable for applications in automotive, industrial, medical, and networking sectors. Termination type is crimp ensuring fast, reliable wire termination. Maximum contact resistance is 20 milliohms to ensure low power loss.
Compatible specifically with Mini-Fit Jr connector housings. Explore more Molex products and related connector components at EnvMart for industrial, electronic, and automation needs.
Explore more products in our Crimp Contacts category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This crimp terminal is rated for a current of 9A.
It is compatible with wire sizes from 28 AWG minimum to 22 AWG maximum.
The terminal is constructed with brass contact material and features gold plating for improved conductivity.
It operates efficiently within a temperature range of -40°C to 105°C.
It features locking tangs that provide a secure fit within the Mini-Fit Jr housing, preventing accidental disconnection.
The maximum contact resistance is 20 milliohms, which helps ensure low power loss.
This terminal is specifically compatible with Mini-Fit Jr connector housings.
It uses crimp termination, allowing for fast and reliable wire connections.
It is suitable for applications in automotive, industrial, medical, and networking sectors.
This terminal is part of the 5556 series.
Dimensions and weight specifications are not provided in the available data.
This product does not include any additional certifications but complies with standard manufacturing quality for electronic connector components.
