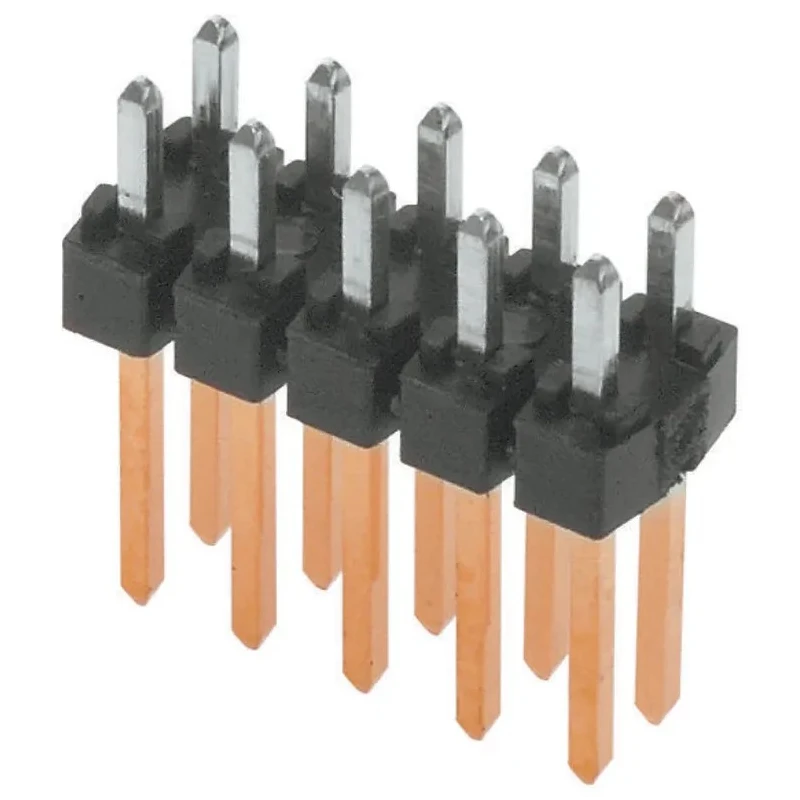

Molex C-Grid III Series Straight Through Hole Pin Header, 12 Contacts, 2.54 mm Pitch, 2 Row, Unshrouded 90131-0126
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 350V |
| Brand | Molex |
| Orientation | Straight |
| Current | 3A |
| Mount Type | Through Hole |
| Housing Material | Polyester |
| Contact Material | Brass |
| Series | C-Grid III |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Tin |
| Number of Contacts | 12 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Wire-to-Board |
| Tail Pin Length | 2.9mm |
| Mating Pin Length | 6.75mm |
Key Features
- Features 12 male contacts arranged in 2 rows with 2.54 mm pitch.
- Constructed with brass contacts plated in tin for durability.
- Housing made of durable polyester material for stable mounting.
- Designed with a breakaway feature to enable custom pin length.
- Supports maximum operating temperature up to 125°C and minimum down to -55°C.
- Intended for through hole solder mounting ensuring mechanical stability.
- Suitable for board to board and wire to board applications in industrial and electronic sectors.
- Compatible with C-Grid III series sockets and crimp housings for flexible interconnections.
Product Description
Molex 90131-0126 C-Grid III Series Straight Through Hole Pin Header is a high-quality PCB connector designed for industrial, computing, medical, telecommunications, and automotive applications. This pin header features 12 male contacts arranged in two rows with a 2.54 mm pitch, ideal for secure wire-to-board connections.
The header is constructed using brass contacts plated with tin, housed in durable polyester material to provide excellent mechanical stability once soldered. The breakaway design allows for easy customization of pin count and length, accommodating different PCB layouts.
Operating within a wide temperature range of -55°C to 125°C, it supports voltages up to 350 volts and can carry currents up to 3 amperes, making it suitable for various power and signal applications in multiple industrial sectors.
This straight orientation through hole pin header is unshrouded to allow easy access during soldering and maintenance. It mates seamlessly with other C-Grid III series connectors including PCB sockets and crimp housings to provide flexible interconnection solutions.
12 contacts in 2 rows with 2.54 mm pitch for reliable connection. Brass contacts with tin plating ensure durability and conductivity. Polyester housing provides insulation and robustness. Breakaway feature offers design versatility.
Wide operating temperature range from -55°C to 125°C. Supports up to 350 V and 3 A current rating. Through hole mounting type for mechanical stability. Wire-to-board connector system for versatile applications. Used in industrial, medical, consumer electronics, telecommunications, and automotive safety systems.
This Molex C-Grid III pin header is a trusted component for engineers seeking a reliable and configurable PCB connector solution. Find more related PCB headers on EnvMart for your electronic assembly needs.
Explore more products in our PCB Pin Header category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a 2.54 mm pitch and has 12 male contacts arranged in 2 rows.
It supports a maximum voltage of 350 volts and can carry currents up to 3 amperes.
The contacts are made of brass and plated with tin, while the housing is constructed from durable polyester material.
It operates within a temperature range of -55°C to 125°C.
This unit is designed for through hole solder mounting, ensuring mechanical stability once installed.
The contacts are arranged in a straight orientation.
It utilizes a wire-to-board connector system, making it suitable for various applications.
Yes, it is compatible with C-Grid III series sockets and crimp housings for flexible interconnections.
The tail pin length is 2.9 mm.
The mating pin length is 6.75 mm.
It is suitable for applications in industrial, medical, telecommunications, and automotive sectors.
It includes a breakaway feature that enables customization of pin count and length to accommodate different PCB layouts.
