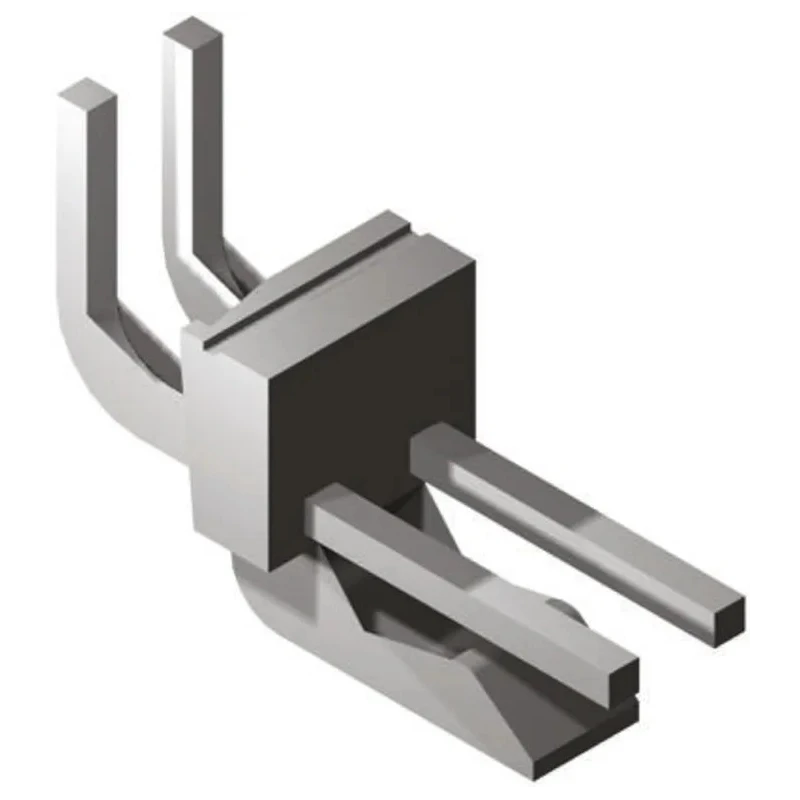

Molex KK 396 Series Right Angle Through Hole Pin Header 10 Contacts 3.96mm Pitch 250V 7A 26-61-5100
Specifications
| Country of Origin | Mexico |
|---|---|
| Voltage | 250V |
| Brand | Molex |
| Orientation | Right Angle |
| Current | 7A |
| Mount Type | Through Hole |
| Housing Material | Polyester |
| Contact Material | Phosphor Bronze |
| Series | KK 396 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 3.96mm |
| Contact Plating | Tin |
| Number of Contacts | 10 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Wire-to-Board |
| Tail Pin Length | 3.96mm |
Key Features
- Features 10 male contacts arranged in a single row.
- Right angle orientation optimizes PCB layout and installation space.
- 3.96 mm pitch matches Molex KK 396 range standards.
- Polyester housing material ensures durability and insulation.
- Contact material is phosphor bronze with tin plating for conductivity and corrosion resistance.
- Supports operating temperatures from -40°C to 105°C.
- Rated for 250 V voltage and 7 A current capacity.
- Termination by solder through-hole mount for secure PCB connection.
Product Description
Molex 26-61-5100 KK 396 Series right angle through hole pin header is designed for wire-to-board applications requiring reliable and durable connector solutions. Its 10 male contacts are aligned in a single row with a 3.96 mm pitch spacing, making it compatible with standard Molex KK 396 housings and connectors.
The housing is constructed from robust polyester material, providing excellent insulation and mechanical stability in electronic assemblies. The phosphor bronze contacts plated with tin ensure high conductivity and resistance to oxidation, supporting electrical integrity in demanding environments.
This pin header offers right angle orientation, which facilitates efficient PCB design by minimizing vertical space usage while ensuring solid connections. It supports through-hole solder termination type for secure mounting on printed circuit boards.
Rated for up to 250 volts and 7 amperes of current, it accommodates a wide range of electronic component requirements. The component functions reliably within a temperature range of -40°C to 105°C, suitable for industrial, manufacturing, and electronic instrumentation contexts.
The unshrouded configuration allows mating with multiple Molex KK series housings and other compatible connectors, making it versatile for equipment repairs, custom electronic builds, and prototype development.
10 male contacts arranged in 1 row with 3.96 mm pitch. Polyester housing for electrical insulation and durability. Phosphor bronze contacts plated with tin. Right angle, through-hole solder termination for PCB mounting. Temperature range from -40°C to 105°C supports varied environments.
Rated at 250V and 7A electrical specifications. Unshrouded design for flexible mating options. Manufactured in Mexico ensuring high quality standards.
This Molex KK 396 Series pin header is ideal for use in electronic manufacturing, product design, repair, and laboratory instrumentation where dependable, high-quality connectors are mandatory. Explore more options in the PCB Pin Header category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a voltage of 250V and a current capacity of 7A.
The contacts are arranged with a pitch of 3.96mm, which is standard for the Molex KK 396 range.
The housing is made from polyester, while the contacts are constructed from phosphor bronze and plated with tin for enhanced conductivity and corrosion resistance.
It supports an operating temperature range from -40°C to 105°C, making it suitable for various environments.
This pin header features 10 male contacts arranged in a single row.
It utilizes a through-hole solder termination type for secure mounting on printed circuit boards.
This model has a right angle orientation, which optimizes PCB layout and installation space.
This pin header is unshrouded, allowing for flexible mating options with various connectors.
It is manufactured in Mexico, ensuring adherence to high quality standards.
This pin header is designed for wire-to-board applications, providing reliable connector solutions.
The tail pin length is 3.96mm, matching the pitch of the contacts.
This pin header is part of the Molex KK 396 series, which is known for its compatibility with standard housings and connectors.
