Molex C-Grid III Series Right Angle Through Hole PCB Header, 14 Contacts, 2.54 mm Pitch, 2 Row, Shrouded 90130-3114

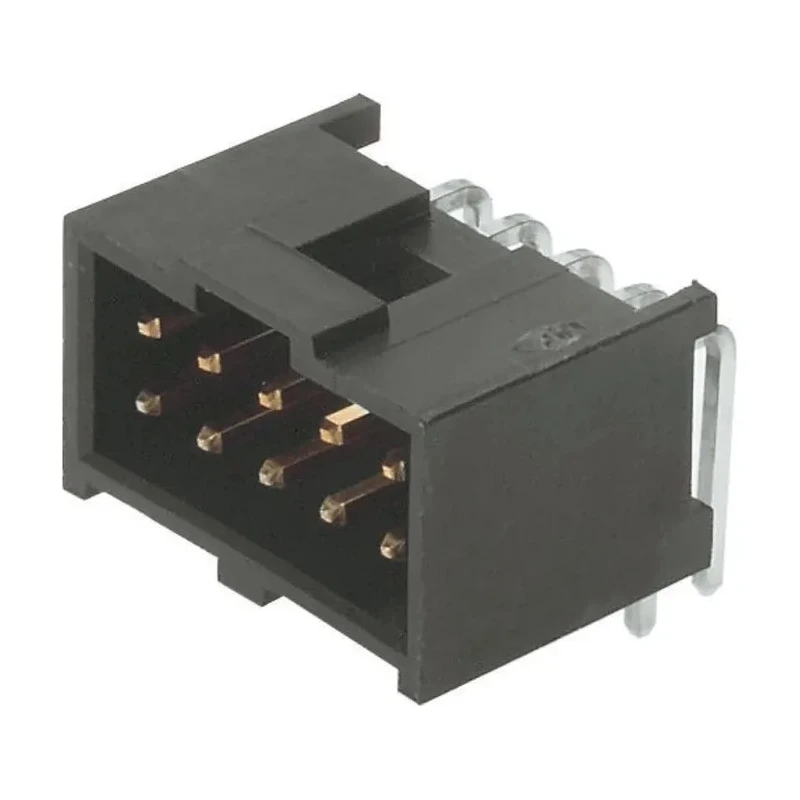

Molex 90130-3114 PCB Header is a high-quality C-Grid III series right angle through hole connector designed for secure and reliable wire-to-board electronic connections. Featuring a 14-contact, 2-row array with a 2.54 mm pitch, this shrouded header is housed in durable polyester material providing excellent insulation and mechanical strength.

This component is engineered to operate within a wide temperature range from -55°C to 125°C, making it suitable for robust industrial and electronic applications. Its brass contacts are plated with tin to ensure resistance against corrosion and reliable conductivity. The right angle orientation optimizes PCB layouts in compact assemblies.

The through-hole mounting ensures a strong mechanical connection to PCBs, with termination by solder allowing for stable and durable solder joints. The contact tail pin length of 2.9 mm and mating pin length of 6.75 mm facilitate easy and effective mating with locking housings, increasing product reliability.

The header supports electrical parameters including a maximum current of 3A and voltage rating of 350V, suitable for a broad range of electronic components and systems. This product finds extensive use in electronic manufacturing, industrial equipment assembly, and power distribution within PCBs.

Durable polyester housing for insulation and mechanical stability. Brass tin-plated contacts to prevent corrosion. Wide operating temperature range from -55°C to 125°C. Shrouded and right angle orientation for secure connections and space savings.

Through-hole solder termination for robust PCB mounting. 14 contacts in a 2-row configuration with 2.54 mm pitch. Supports up to 3A current and 350V voltage applications. Contact tail length and mating pin length designed for secure lockable connections.

This Molex C-Grid III Series PCB header is essential in sectors such as industrial electronics, manufacturing, and power management, where dependable connectors are critical. Browse the electronics connectors category for more high-quality PCB Headers and connectors at EnvMart.
