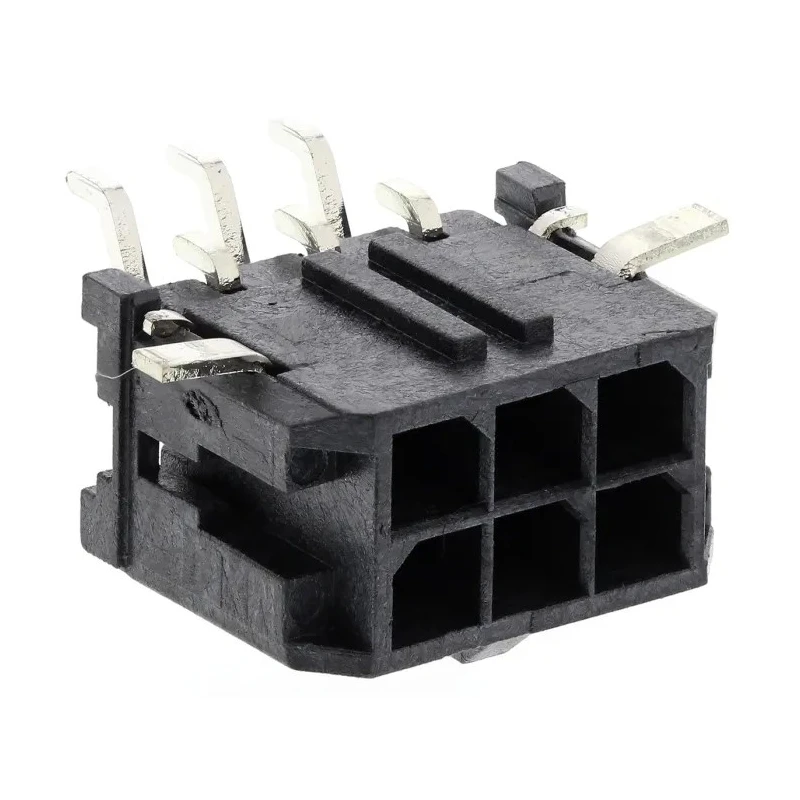

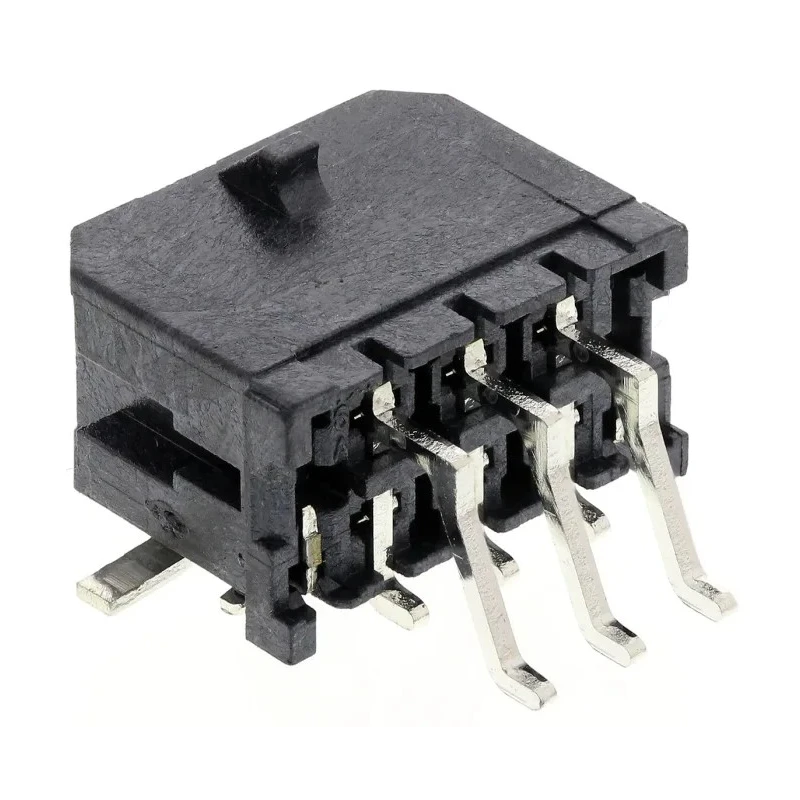

Molex Micro-Fit 3.0 Series Right Angle Surface PCB Header 6 Contacts 3 mm Pitch 2 Row Shrouded 43045-0609
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 250V |
| Brand | Molex |
| Orientation | Right Angle |
| Current | 5A |
| Mount Type | Surface |
| Housing Material | Thermoplastic |
| Contact Material | Brass |
| Series | Micro-Fit 3.0 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Pitch | 3mm |
| Contact Plating | Tin |
| Number of Contacts | 6 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| Mating Pin Length | 3mm |
Key Features
- Compact power connector system suitable for low to mid-range power distribution.
- High current carrying capacity of up to 5 A in a small footprint.
- Thermoplastic housing withstands high temperatures during IR reflow soldering.
- Features positive latching for secure mating and prevention of accidental disconnection.
- Fully isolated dual beam terminals provide reliable electrical performance and contact.
- Solder tabs allow secure attachment to PCB surface.
- Contacts made of brass with tin plating to ensure good conductivity and corrosion resistance.
- Operates reliably in temperatures ranging from -40°C to 105°C.
Product Description
Molex 43045-0609 Micro-Fit 3.0 Series Right Angle Surface PCB Header is a high-quality shrouded PCB connector designed for wire-to-board connections with 6 male contacts arranged in 2 rows with 3 mm pitch spacing. This connector system is ideal for low to mid-range power distribution, carrying currents up to 5 A while maintaining a compact footprint.
The housing is made of thermoplastic material that complies with UL 94V-0 flammability standards and can withstand IR reflow soldering temperatures up to 265°C. Positive latching features ensure a secure connection to prevent accidental disconnections, while the fully isolated dual beam terminals provide reliable electrical performance by reducing the risk of arcing.
The connector termination type is solder with solder tabs incorporated for firm fixation onto the PCB surface. Contacts are brass with tin plating, offering excellent conductivity and resistance to corrosion. This right angle, shrouded header supports operating temperatures from -40°C up to 105°C, making it suitable for a variety of demanding environments.
Applications for this Micro-Fit 3.0 Series header include military commercial off-the-shelf products, solar power systems, consumer appliances such as dryers and refrigerators, data communications equipment like routers and servers, medical devices, telecommunications, and gaming terminals.
Compact connector system provides space-saving power solutions. High current rating up to 5 A suitable for various industrial scenarios. Thermoplastic housing supports IR reflow soldering processes. Positive latching mechanism ensures reliable mating under vibration.
Fully isolated dual beam contacts enhance electrical performance. Solder tabs secure connector firmly to PCB. Brass contacts with tin plating for durability and conductivity. Wide operating temperature range from -40°C to 105°C.
Right angle and shrouded design protects contacts and simplifies PCB layout. Suitable for diverse sectors including military, consumer, telecommunications, and medical industries. Explore the Micro-Fit 3.0 Series range for compact power connectors optimized for industrial and commercial electronics at EnvMart.
Explore more products in our PCB Headers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model can carry currents up to 5 A, making it suitable for low to mid-range power distribution applications.
It operates reliably within a temperature range of -40°C to 105°C, allowing it to be used in various demanding environments.
The contacts are arranged with a pitch of 3 mm, facilitating compact connections on the PCB.
This connector features 6 male contacts, arranged in 2 rows.
The housing is made of thermoplastic material, while the contacts are made of brass with tin plating for good conductivity and corrosion resistance.
It uses a solder termination type, with solder tabs for secure attachment to the PCB surface.
This model has a right angle orientation, which helps in optimizing PCB layout and saving space.
The Molex Micro-Fit 3.0 Series header is shrouded, providing additional protection for the contacts.
It supports a voltage rating of 250V, suitable for various electronic applications.
This model is suitable for applications in military commercial off-the-shelf products, solar power systems, consumer appliances, data communications equipment, medical devices, telecommunications, and gaming terminals.
It features positive latching for secure mating and fully isolated dual beam terminals to reduce the risk of arcing, enhancing its reliability in operation.
The country of origin for this PCB header is India.
